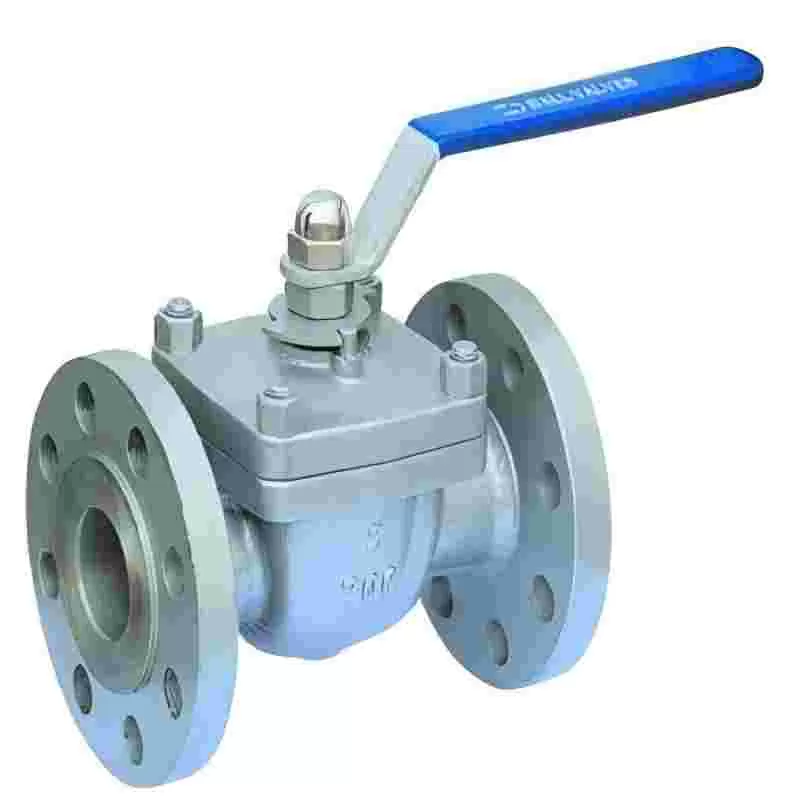

Integral bevel ball valve,bevel ball valve. ball valve

Overall inclined ball valve product details:

Integral bevel ball valve is a new product developed by Hubei high pressure Valve Factory, which is suitable for liquefied petroleum gas, oil products, water, corrosive fluid engineering and aluminum oxide powder transportation engineering. The valve adopts wedge top type with novel structure and excellent performance. At present, most ball valves are side-mounted, and this structure generally has large opening and closing torque, and greatly increases the opening and closing torque or causes leakage due to the influence of temperature difference and pipeline installation stress. This product overcomes the above problems and shows unique advantages. 1, reliable sealing because the valve body is integral, temperature difference and pipeline installation stress do not affect the sealing performance of the ball sealing pair. When the seal pair is worn, the spring force can automatically compensate. 2, the operation of light opening and closing torque is only less than 50% of the common ball valve. 3, long service life of high quality polytetrafluoroethylene valve seat inside and outside the metal protective ring, to prevent the media on the valve seat erosion damage and polytetrafluoroethylene cold flow. And the preload force can be adjusted to achieve a smaller specific pressure of the seal, which will greatly improve the service life. Once the seat is damaged by fire, the internal and external metal protective ring plays a certain protective role. 4, easy maintenance When the product needs to be maintained, as long as the valve cover is disassembled, it can be maintained, and the valve does not have to be removed from the pipeline

Integral bevel ball valve is a new product developed by Hubei high pressure Valve Factory, which is suitable for liquefied petroleum gas, oil products, water, corrosive fluid engineering and aluminum oxide powder transportation engineering. The valve adopts wedge top type with novel structure and excellent performance

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
