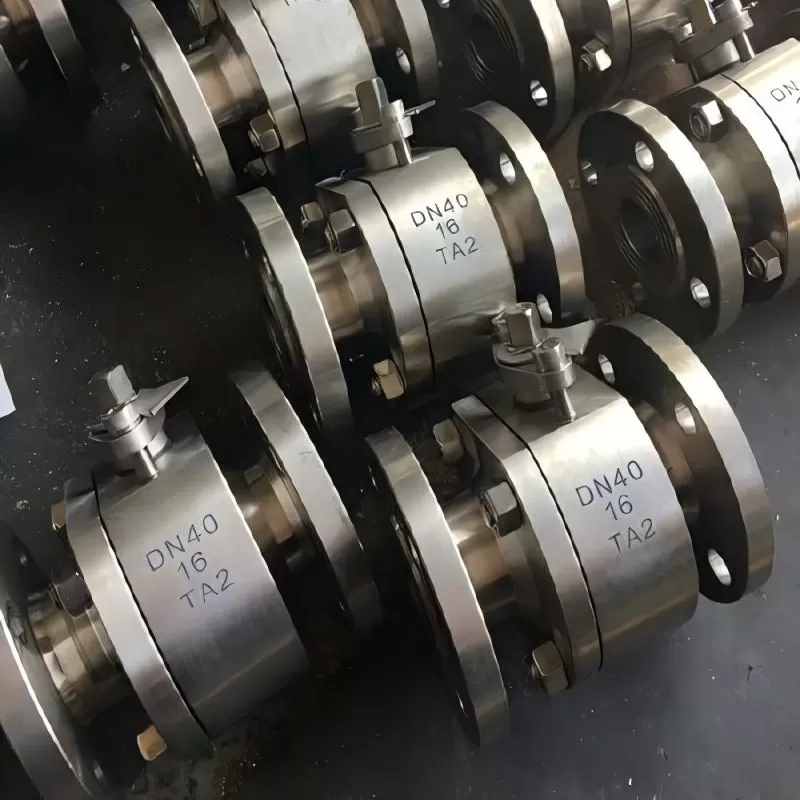

High vacuum ball valve;ball valve

The high vacuum ball valve is divided into three different connection types, according to the GB6070 standard looper flange connection, according to the GB4982 standard quick discharge flange connection and threaded connection.

Applicable vacuum range: 0.6*10~ 1.3*10pa.

Change the direction of the air path through the electromagnetic reversing valve, control the executive cylinder to drive the ball valve, and output torque to drive the ball valve to open and close.

The valve is straight-through and sealed by the spherical surface, so it can be used in vacuum or low pressure, and can be installed at any position to switch on or cut off the medium flow in the vacuum system pipe path. Used in vacuum, dairy products, wine industry, bioengineering, food, pharmaceutical, beverage, cosmetics and chemical fields. Optional feedback signal device and electrical valve positioner

High vacuum ball valve is used to connect or cut off the medium flow in the vacuum (pressure) system pipeline. Used in vacuum, dairy products, wine industry, bioengineering, food, pharmaceutical, beverage, cosmetics and chemical fields

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
