Product Code : VF--QCC-Q177-CU
Product Model: Q41F/Q341F
Nominal diameter: DN100-300mm
Nominal pressure: PN1.6-4.0MPa
Applicable media: Liquefied gas, natural gas, petroleum gas, water, etc
Applicable temperature: -40 to +80℃
Manufacturing standard: GB/T12237-89
Structural length: GB12221-89
Main materials: Carbon steel, stainless steel
Drive mode: manual, electric, pneumatic
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product Overview

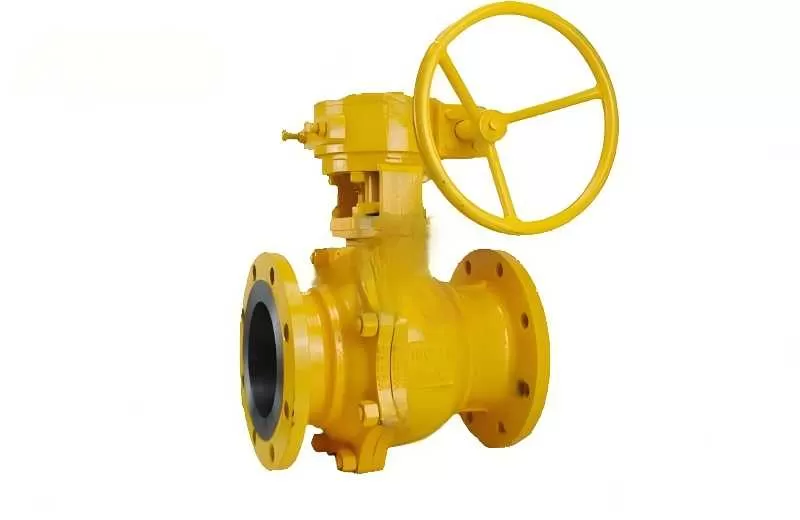

Gas pipeline flange ball valves are mainly used to connect or block the medium in the pipeline, especially in areas that require rapid opening and closing, such as emergency unloading. Due to its advantages such as simple structure, few parts, light weight and good sealing performance, it is increasingly widely used. It is mainly composed of the valve body, valve cover, sealing valve seat, ball and valve stem, etc. The ball with holes is the core of the ball valve. The ball is controlled to open and close by the rotation of the valve stem, and the rotation is the full process of opening and closing.
Structural characteristics
The gas pipeline flange ball valve adopts formed polytetrafluoroethylene packing and is suitable for most high and medium pressure gas transmission occasions. The handle operation torque is stable, and the O-ring is used to prevent external impurities from entering the valve interior. And maintain the long-term sealing performance of the valve. Ball valves larger than DN150 are driven by worm gears.
Gas pipeline flange ball valves are mainly used to connect or block the medium in the pipeline, especially in areas that require rapid opening and closing, such as emergency unloading. Due to its advantages such as simple structure, few parts, light weight and good sealing performance, it is increasingly widely used. It is mainly composed of the valve body, valve cover, sealing valve seat, ball and valve stem, etc. The ball with holes is the core of the ball valve. The ball is controlled to open and close by the rotation of the valve stem, and the rotation is the full process of opening and closing.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
