Product Code : VF--QCC-Q72-CU
Caliber; 1/2~10”(DN15~DN250)
Pressure level; 150~2500LB (PN16~PN420),
Connecting end; RF, RTJ,BW, SW, NPT.
Design criteria; ISO 17292/API 6D/DIN
Optional additions; Extended stem, ball and seat coating, various seat materials, single or double piston designs
Mode of operation; Handle, gear box, light valve stem, actuator
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

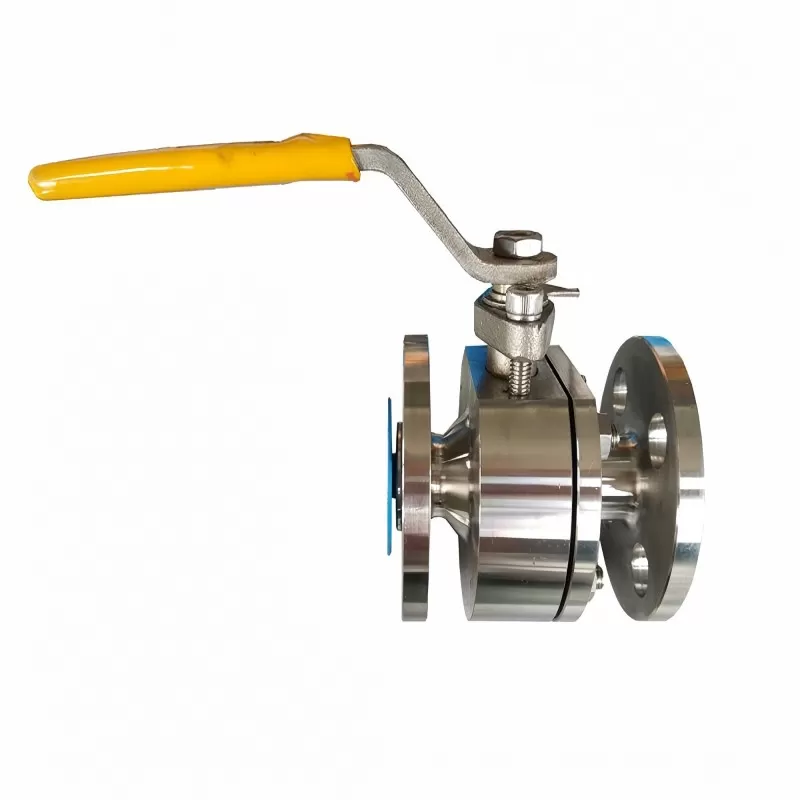

The forged steel floating ball valve is designed according to ISO17292 standard, divided into two and three pieces, suitable for medium and high pressure applications and a wide temperature range (-196℃~ 500℃). Can replace small size fixed ball valve, save cost.
Design feature
Full or reduced diameter, fire safety construction, blowout stem, anti-static, low emission control, locking device, ISO 5211 top flange.
The valve is not only anti-corrosion, anti-vulcanization ability, fire, anti-static, good sealing performance, the use of pressure and temperature range, full diameter and diameter reduction complete, and can be equipped with a variety of driving devices, is the chemical industry, petroleum torch refining, natural gas extraction and transportation system ideal valve choice. Main function: When the stagnant medium in the valve cavity increases abnormally due to temperature change, the medium pressure pushes the valve seat away from the ball to achieve the effect of automatic pressure relief, and the valve seat automatically resets after pressure relief. In addition to the general sealing of the valve seat, the special sealing structure can play an emergency rescue role when the sealing ring is damaged and leakage occurs.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
