Product Code : VF--QCC-Q163-CU
Models: Q47F, Q347F, Q47Y, etc
Caliber: NPS4 ~ NPS48, DN100 ~ DN1200
Pressure: Class150 to Class2500, PN16 to PN160
Material: carbon steel, stainless steel, alloy steel, duplex steel
Drive: manual, worm gear drive, electric, pneumatic
Application: petroleum, chemical, natural gas, petrochemical, coal chemical and other industries
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

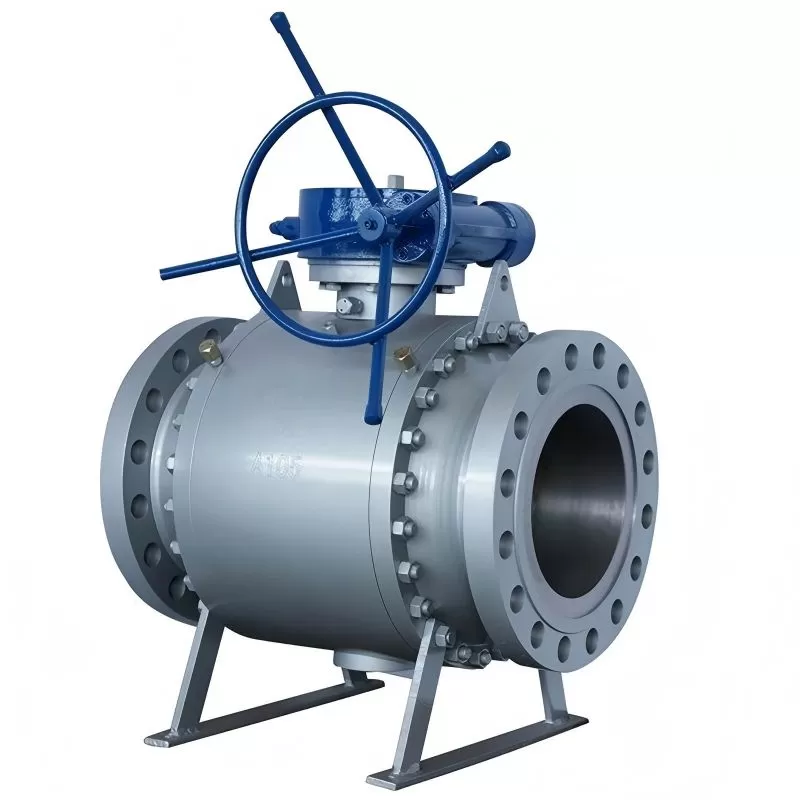

The fixed forged ball valve is suitable for various pipelines of Class150 ~ Class2500, PN16 ~ PN160, which is used to cut off or connect the medium in the pipeline. Choose different materials, the fixed forged ball valve of is suitable for water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea and other media. The fixed forged ball valve is driven by manual, worm gear, pneumatic or electric. Fixed forged ball valve generally adopts flange connection, can also use butt welding connection.
The fixed high temperature forged ball valve with flange connection has the characteristics of natural anti-static structure, preventing misoperation structure, reliable sealing of the valve stem, complete fire protection structure design, excellent sealing performance, advanced ball and seat hardening technology.
The flanged fixed forged steel ball valve stem is designed with anti-blowout structure, which can ensure that the forged steel ball valve stem will not be blown out by the medium even in extreme cases such as abnormal pressure boost of the valve chamber and failure of the packing plate. The fixed forged ball valve stem adopts the lower structure design with seal, the sealing force of the reverse seal increases with the increase of the medium pressure, so it can ensure the reliable sealing of the valve stem under various pressures.
Application: petroleum, chemical, natural gas, petrochemical, coal chemical and other industries
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
