Product Code : VF--QCC-Q161-CU
Design and Manufacture: API608, API 6D,GB/T12237,ISO17292
Structure length size; ASME B16.10,GB/T12221
Flange connection size: ASME B16.5, ASME B16.47, HG/T20592, HG/T20615
Butt weld end size: ASME B16.25
Pressure temperature class: ASME B16.34,GB/T12224
Inspection and testing; API598,GB/T26480,IS05208
Main materials: WCB, WC6, WC9,CF8, CF8M, CF3, CF3M, CN7M & others
Nominal Diameter: NPS3" -64"
Nominal pressure: CL150-CL300
Driving mode: manual, electric, pneumatic, hydraulic
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

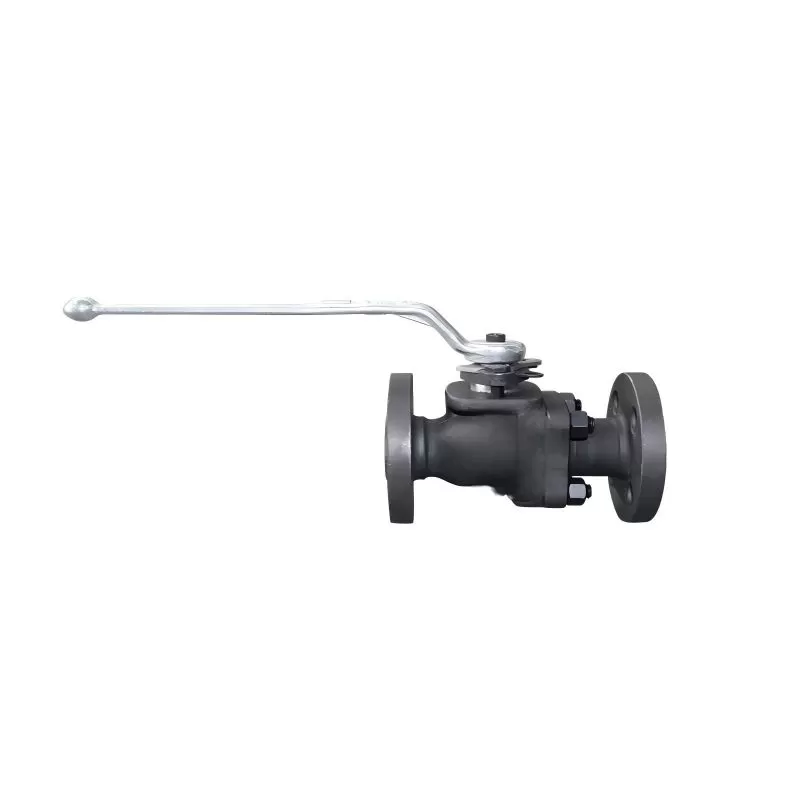

The Class300 steel floating ball valve is suitable for all kinds of pipelines of Class300 and PN50, which is used to cut off or connect the medium in the pipeline. Select different materials, Chaoda Group's Class300 steel floating ball valve can be applied to water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea and other media. The Class300 steel floating ball valve is driven manually, worm gear, pneumatically or electrically. Class300 steel floating ball valves are generally connected with flanges and can also be butt-welded.
Adjust the ball valve, the company recommends the use of split structure. The ball valve components are under heavy operating conditions, so frequent maintenance and repair may be required, and the valve body and the ball are integrated, which can avoid the dynamic load caused by the medium of higher pressure, so that the joint is subjected to wear.
Cut off the ball valve, the use of integral welding structure is more economical. Because his working condition is not as heavy as when adjusting, the maintenance of parts is smaller, and the dynamic load of the valve stem and ball is less, so that even if the connection takes a loose form, the wear will not be too large. But it is very good for sealing.
Application: petroleum, chemical, natural gas, petrochemical, coal chemical and other industries
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
