Product Code : VF--QCC-Q97-CU
Nominal size DN15~DN200,
Nominal pressure PN16~PN63,
Applicable temperature is -28~300℃,
The body material is carbon steel or stainless steel.
Driving mode; Electric drive,
Flange connection form, floating ball straight through type,
The sealing form is soft seal,
Sealing surface material of valve seat is fluorine plastic,
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

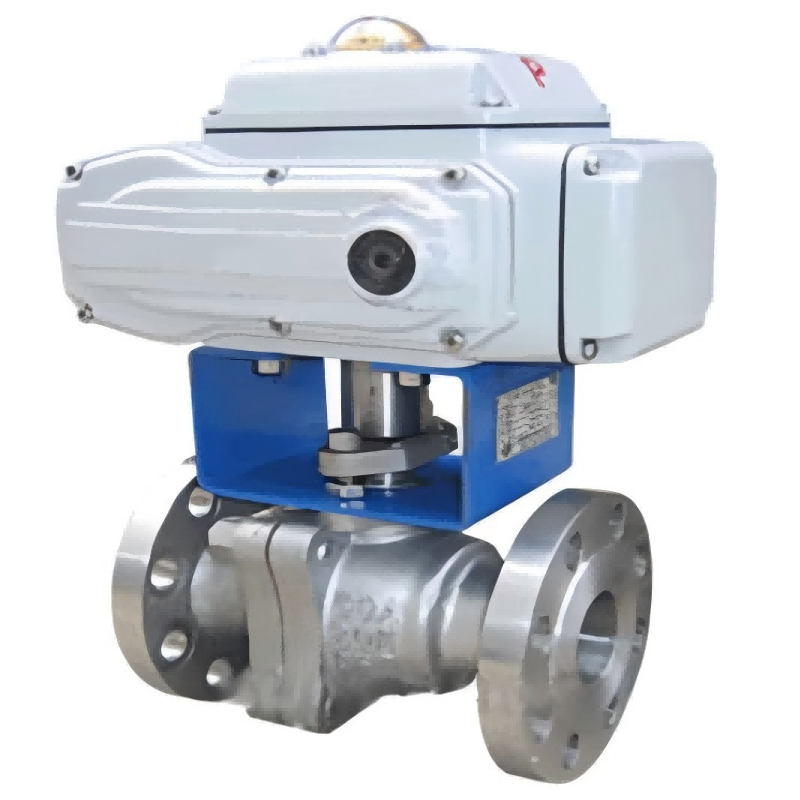

Floating soft seal electric ball valve is suitable for two-position cutting and adjusting occasions. The connection between the valve and the actuator adopts a direct connection mode, which is composed of DCL series fine small electric actuators (different types of electronic electric actuators or gas piston actuators can be configured according to user requirements) and ultra-short ball valves. Electric actuator built-in servo system, no additional servo amplifier, input 4-20mA signal and 220V AC power supply can control the operation. Compared with the ordinary electric ball valve, it has the characteristics of compact structure, small size, light weight, close distance between the valve seat and the end flange, less material retention, and superior sealing performance.
Floating soft seal electric ball valve is suitable for two-position cutting and adjusting occasions
