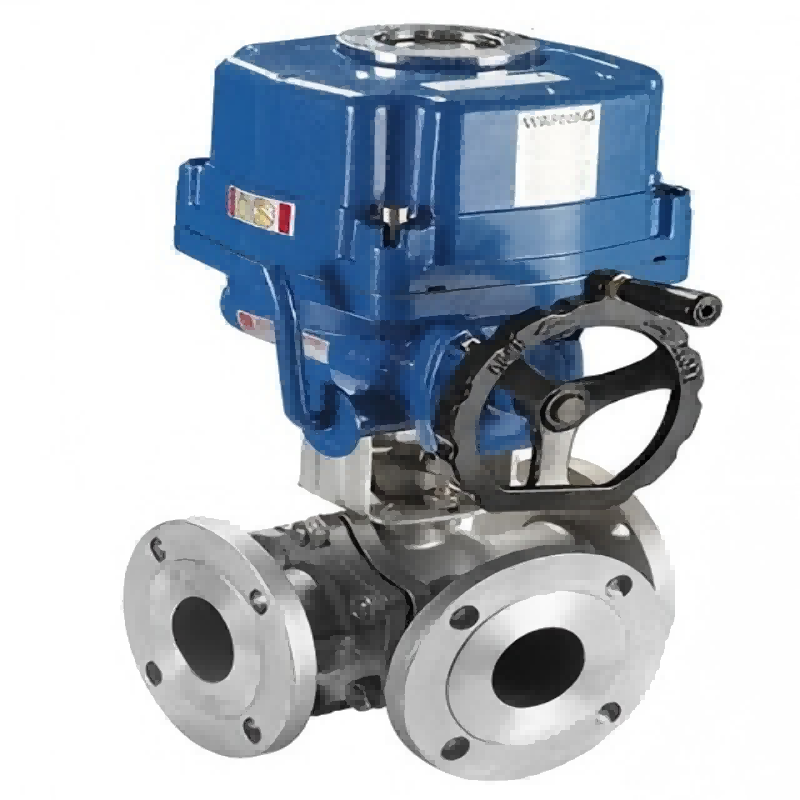

FBQ944/5F Explosion-proof electric three-way ball valve Product Introduction:

Can be L-shaped and T-shaped, explosion-proof electric L-shaped three-way ball valve (FBQ944F) is used to switch the flow direction of the medium, can make the two vertical channels connected; Explosion-proof electric T-shaped three-way ball valve (FBQ945F) is used for medium shunt, confluence and flow direction switching.

Design standard: GB/T12237-1989; DIN3357/1, 2: API608

Flange size: GB/T9113.1, JB/T79; DIN3202; JIS B2002; AE B16.10

Structure length: GB/T12221-1989; DIN3202; JIS B2002:AE B16.10

Inspection test: GB/T13927; DIN3230/3; API598; JIS B2003

Design features:

Three-way ball valve has two and four seal structure, the spool channel has L type and T type two structural forms, using the control spool rotation Angle, change the connection state of the spool channel and the pipe opening, can realize the different combination control of three branch pipes. Three-way ball valve flow capacity is large, can control gas, liquid, steam, more suitable for controlling high viscosity, fiber granular fluid. It is also suitable for occasions with strict sealing requirements.

The two-seat sealed three-way ball valve has the advantages of compact structure, beautiful appearance and good sealing performance, which can realize the switch of the medium flow direction in the pipeline. It can also make two perpendicular channels connected or closed.

Four-seat sealed three-way ball valve has a beautiful shape, compact structure and reasonable, it can not only realize the flow of the medium switch, but also make the three channels connected to each other, and can close any channel, so that the other two channels are connected, flexible control pipeline is the confluence or shunt of the medium.

The T-type spool channel can make three orthogonal pipes interconnect or switch, and play the role of shunt or confluence; L-shaped channels connect two orthogonal pipes. The other hole is cut off to change the flow direction of the medium.
