Product Code : VF--QCC-Q146-CU
Power supply voltage; AC220/380V, 50/60Hz
Output torque; HR: 50N·M ~ 2000N·M; HQ: 50N·M ~ 3000N·M
Range of action; 0 to 90° 0 to 360°
Action time; 15 seconds /30 seconds /60 seconds
Protective devices; Overheat protection
Ambient temperature; -30° to 60°
Manual operation with accessories with handle, hand wheel
Limit Electrical and mechanical double limit
Protection level equivalent to IP-65
Explosion-proof rating; ExdII BT4; ExdII BT6 can be customized for special requirements
Position measurement; Optional switch or potentiometer
Drive motor; 8W/E
Incoming port PE1/2 "Incoming cable lock
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

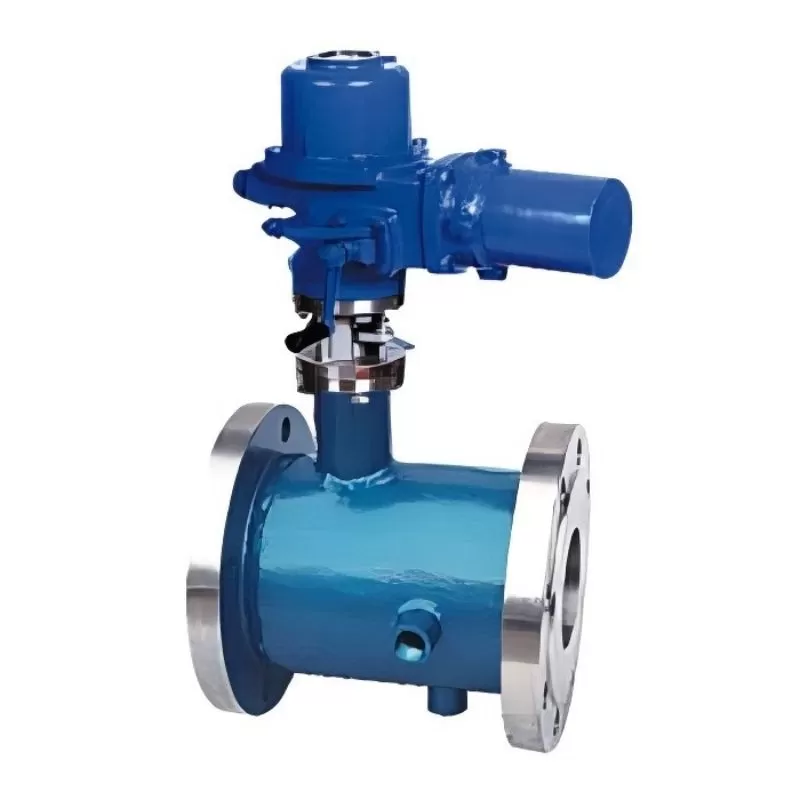

The electric thermal insulation ball valve is composed of an electric actuator and a straight-through jacket thermal insulation ball valve, which has good thermal insulation and cold protection characteristics, and the diameter of the electric thermal insulation ball valve is the same as the pipe diameter, and can reduce the heat loss of the medium in the pipeline. Electric actuator adopts integrated structure, built-in servo system, without additional servo amplifier, can input 4-20mA control signal or 1-5VDC and 220VAC power supply to control operation. Jacket insulation electric ball valve is mainly used in petroleum, chemical, metallurgy, food and other systems to transport high viscosity media that will solidify at room temperature. Due to the integral structure of the electric insulated ball valve, the jacket insulated electric ball valve is smaller than the general ball valve, light weight, and no leakage, sealing performance is good, and the jacket is welded with carbon steel pipe than casting pressure resistance.
Jacket insulation electric ball valve is mainly used in petroleum, chemical, metallurgy, food and other systems to transport high viscosity media that will solidify at room temperature. Due to the integral structure of the electric insulated ball valve, the jacket insulated electric ball valve is smaller than the general ball valve, light weight, and no leakage, sealing performance is good, and the jacket is welded with carbon steel pipe than casting pressure resistance.
