Product Code : VF--QCC-Q23-CU

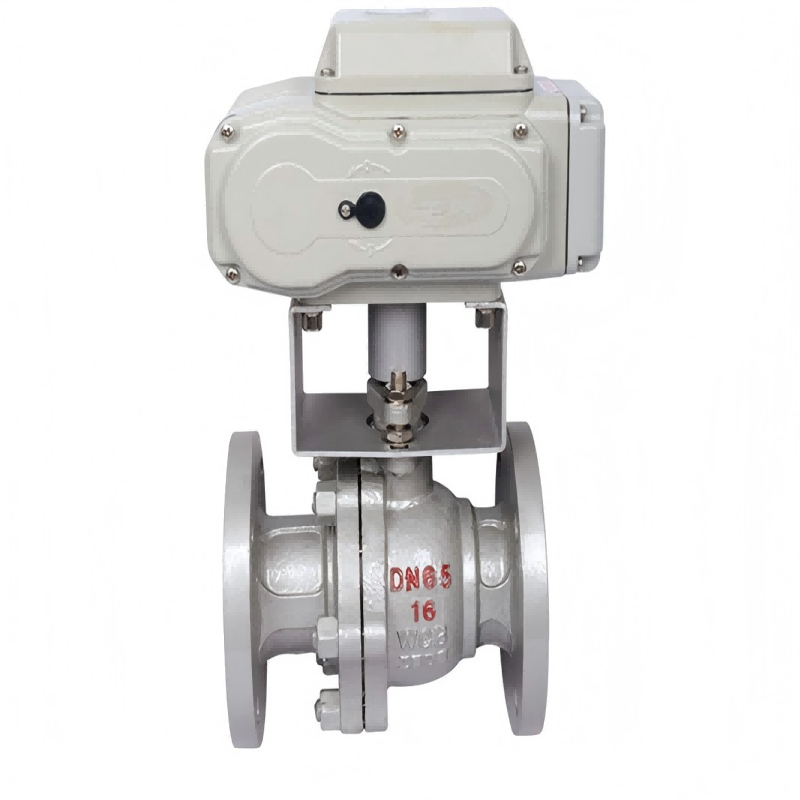

Electric floating ball valve Model: Q941F/H/Y
Nominal diameter: DN10 ~ 500mm
Nominal pressure: PN1.6-10.0MPa
Ambient temperature: -30℃ ~ 60℃
Drive mode: electric
Body material: WCB, ZG1Cr18Ni9Ti, CF8(304), CF3(304L), CF8M(316), CF3M(316L)
Applicable media: water, gas, steam, oil, nitric acid and other corrosive media, strong oxidizing media, urea and other corrosive media
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product overview
The electric ball valve is suitable for two position cutting and adjusting occasions. The connection between the valve and the actuator adopts the direct connection mode. The servo system is built into the electric actuator, and the servo amplifier is not required. The input 4-20mA signal and 220VAC power supply can control the operation. It has the advantages of simple connection, compact structure, small size, light weight, small resistance, stable and reliable action, etc. The actuator can be configured with UNIC, PSQ, HQ, DHL and other electronic electric actuators or GTX, AL and other gas piston actuators according to user requirements.
enforce standards
1. Design and manufacture: GB12237-89, API608, API 6D, JPI 7S-48, BS5351, DIN3357.
2, flange size: JB/ T74-90 (JB74-90), GB9112-9131, HGJ44-76, SH3406, ANSI B16.5, JIS B2212-2214, NF E29-211, DIN2543.
3, structure length: GB12221-89, ANSI B16.10, JIS B2002, NF E29-305, DIN3202.
4. Main test: JB/T 9092, API 598.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
