Clamp ball valve,ball valve

【 Working principle 】 :

Q81F three-piece quick ball valve switch rotates 90 degrees of action, the cock body is a ball, in the pipeline is mainly used to cut off, distribute and change the direction of the flow of the medium, it only needs to rotate 90 degrees of operation and a small torque can be closed tightly.

【 Product Features 】 :

1, the clamp connection is easy to disassemble, suitable for the need for frequent cleaning conditions.

2, easy to install, can be installed in any direction in any part of the pipeline.

3. The channel in the valve body is smooth and smooth, which can transport viscous fluid, slurry and solid particles.

4. Pneumatic, electric and other driving mechanisms can be configured to achieve remote control and automatic operation.

5, because polytetrafluoroethylene and other materials have self-lubrication, and the friction loss of the ball is small, so the service life of the ball valve is long.

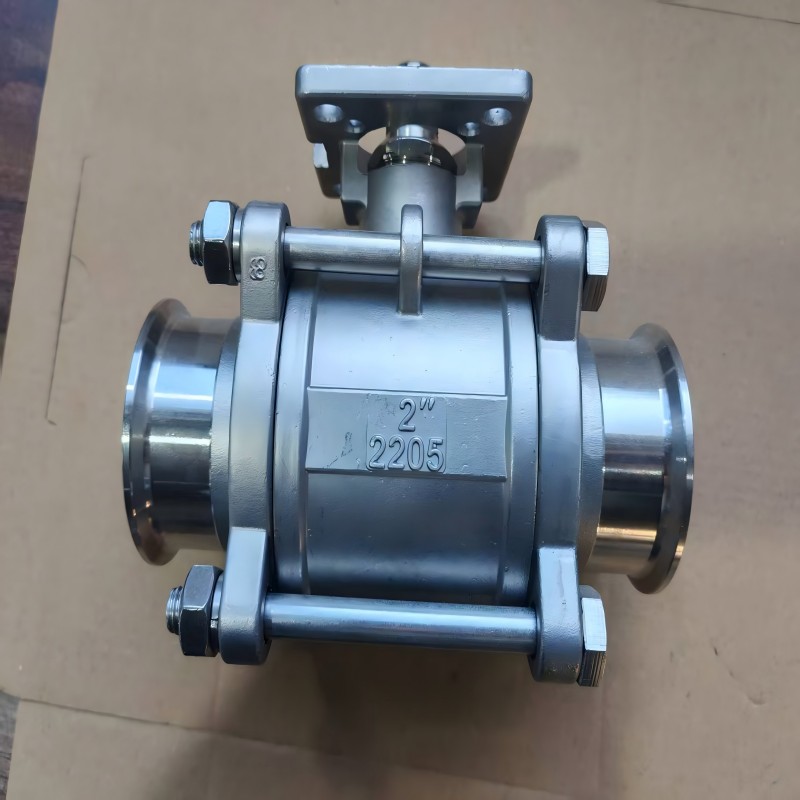

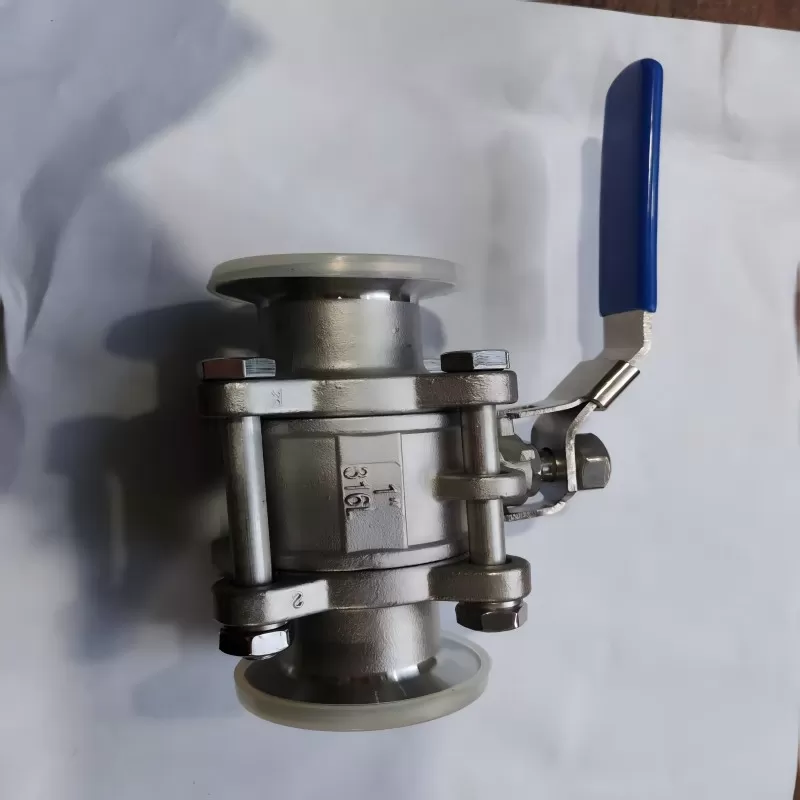

Q81F three-piece quick installation ball valve, also known as three-piece clamp ball valve, is composed of three sections of the valve body, the middle with bolts locked. Valve body: 304, 316 stainless steel. It is made of silica sol precision casting, the valve seat adopts PTFE or PPL sealing structure, easy to open and close and reliable sealing. Suitable for water, steam, oil, nitric acid, acetic acid and other media

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
