Product Code : VF--QCC-Q132-CU
Nominal diameter DN/mm; 15-400.
Nominal pressure PN/Mpa; 1.6- 4,0
Valve body; WCB. 304316304 L, 316 L
Applicable temperature; 150 ℃ -- 425 ℃ or less or less
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

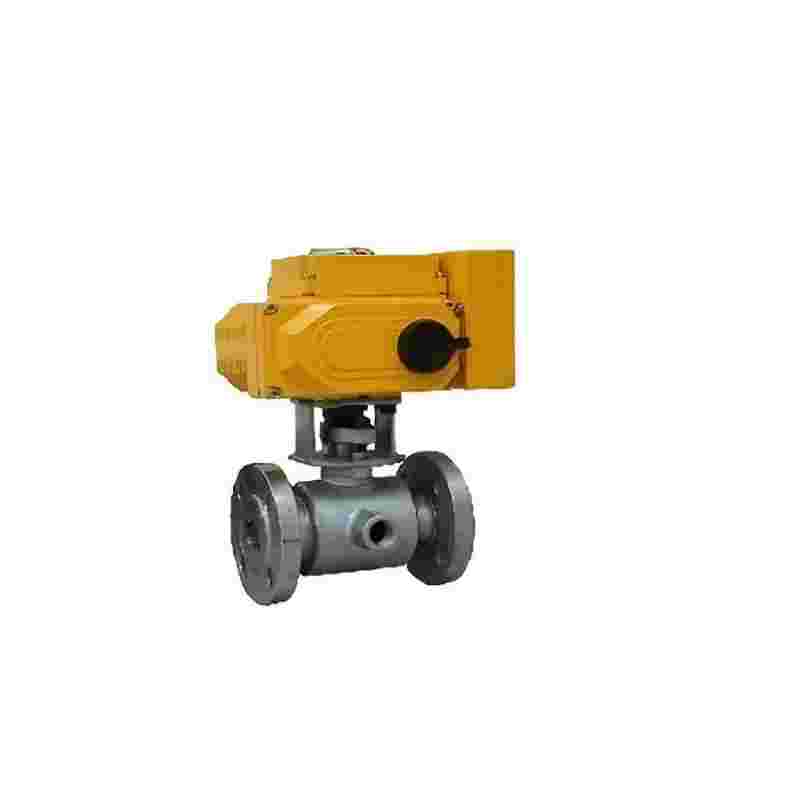

BQ941F two way thermal insulation ball valve Product introduction:
Due to the use of steam and other heating medium jacket insulation, so even if the external temperature drops below zero, the valve can still operate flexibly, to ensure that the oil pipeline or easy crystallization fluid can open and close freely, flow path is smooth, is the ideal control valve for heavy oil, viscosity food, asphalt and other media.
Design features:
1. Mainly for the solidification of high viscosity media and easy crystallization media.
2. The product has good thermal insulation and cold protection characteristics, and the diameter of the valve is consistent with the diameter of the pipe, and can effectively reduce the heat loss of the medium in the pipeline.
3. Due to the integral structure, the insulated ball valve is smaller than the general ball valve, lighter in weight, and no leakage, good sealing performance, and the jacket is welded with carbon steel pipe than the cast more firmly resistant to pressure.
Product performance parameters:
one The shell is made of hard aluminum alloy, anodized treatment and polyester powder coating, strong corrosion resistance, protection class IP67, NEMA4 and 6, IP68 and explosion-proof type for choice.
2. Fully enclosed squirrel cage motor, small size, large torque, small inertia force, insulation class F, built-in overheat protection switch, can prevent overheating damage to the motor.
3. Manual operation with power off, automatic handle can be fixed on the back of the actuator, convenient, simple and easy to operate.
4. The indicator is mounted on the central shaft to observe the valve position. The mirror adopts convex lens design, no water, more convenient observation.
5. Mechanical, electronic double limit. Mechanical limit screw adjustable, safe and reliable; The electronic limit switch is controlled by a CAM mechanism, and the simple adjustment mechanism allows precise and convenient position setting without battery support. (Microswitch contacts are all silver contacts).
6. The bottom mounting size conforms to ISO5211 international standards, and the drive shaft sleeve can be removed for processing according to needs. It can be installed vertically or horizontally.
Due to the use of steam and other heating medium jacket insulation, so even if the external temperature drops below zero, the valve can still operate flexibly, to ensure that the oil pipeline or easy crystallization fluid can open and close freely, flow path is smooth, is the ideal control valve for heavy oil, viscosity food, asphalt and other media.
