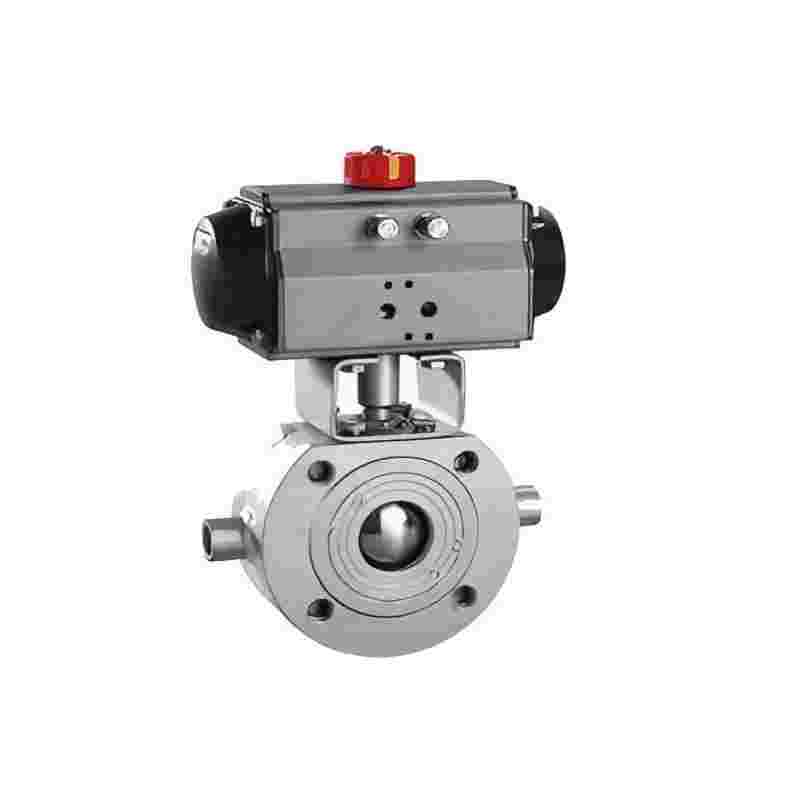

BQ671F Pneumatic insulation ball valve Product introduction:

It has good thermal insulation and cold protection characteristics, and the diameter of the valve is consistent with the diameter of the pipe, and can effectively reduce the heat loss of the medium in the pipeline. Mainly used in petroleum, chemical, metallurgical, pharmaceutical, food and other systems to transport high viscosity media that will solidify at room temperature.

Due to the integral structure, the thermal insulation ball valve is smaller than the general ball valve, lighter weight, and no leakage, sealing performance is good, and the jacket is welded with carbon steel pipe than the cast more firmly resistant to pressure

Mainly used in petroleum, chemical, metallurgical, pharmaceutical, food and other systems to transport high viscosity media that will solidify at room temperature.

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition

Design features:

The use of integral jacket structure design, more uniform heat preservation, cold protection, insulation ball valve than the general ball valve smaller volume, lighter weight, and no leakage, sealing performance is good, the jacket using carbon steel pipe welding than casting more solid pressure resistance. Jacket, body outside welded with jacket nozzle, allow steam or cold water up to 1MPa.

It has good thermal insulation and cold preservation characteristics, in addition to the diameter of the ball valve, the diameter of the valve and the diameter of the pipe, the medium is a straight line flow, the resistance is small, can effectively reduce the heat loss of the medium in the pipeline, therefore, it has excellent performance for the liquid medium that is easy to solidify and has high viscosity.
