Product Code :
Valve type: Q61F
Connection method: welding, butt welding
Pressure rating: 150~600LB,1.6MPa~ 4.0MPa
Product specifications: 1/2" ~ 40", DN15 ~ 1000mm
Product material: WCB, A105 F11, making, F304, F316, CF8, CF8M, WCC or optional according to customer requirements.
Applicable temperature: -29℃≤t≤150 ℃ (the temperature is different from the body material and sealing surface material)
Applicable media: water, oil, natural gas and acid-base media, etc
Driving mode: electric, manual, worm wheel drive, gear drive, etc
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

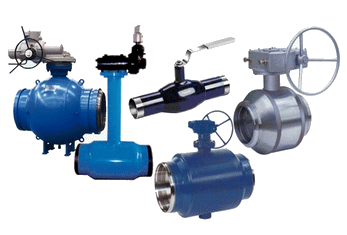

Integral all-welded ball valve, there will be no external leakage phenomenon, because the seat is composed of carbonized Teflon sealing ring and coffee spring, so that the pressure and temperature change adaptability, marked pressure and temperature range will not produce any slip. The processing process of the ball has advanced computer detector tracking and detection, and the processing precision of the ball is high. Because the valve body material is the same as the pipeline material, there will be uneven stress, and it will not be deformed due to earthquake and vehicle passing through the ground, and the pipeline is resistant to aging. The sealing ring body is made of PTFE with a content of 20%C(carbon) to ensure complete no leakage (0%).
Purpose:
City gas: gas output pipeline, main line and branch supply pipeline.
Central heating: large heating equipment output pipeline, main line, branch line.
Heat switch: pipe and circuit opening and closing.
Steel plant: various fluid pipelines, exhaust gas discharge pipelines, gas and heat supply pipelines, fuel supply pipelines.
All kinds of industrial equipment: all kinds of heat treatment pipes, all kinds of industrial gas and heat pipes.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 2022 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
All-welded ball valves are widely used in various fields. Its superior quality and high-performance stability is the ordinary cast steel ball valve can not be achieved, its service life is far greater than cast steel ball valve, all-welded ball valve is widely used in urban gas, urban heating, petrochemical, shipbuilding, steel, pressure regulating station, power plant and other types of pipeline equipment. The all-welded ball valve can operate reliably for a long time, requiring maintenance, simple installation, and the installation of other valves is more convenient.
