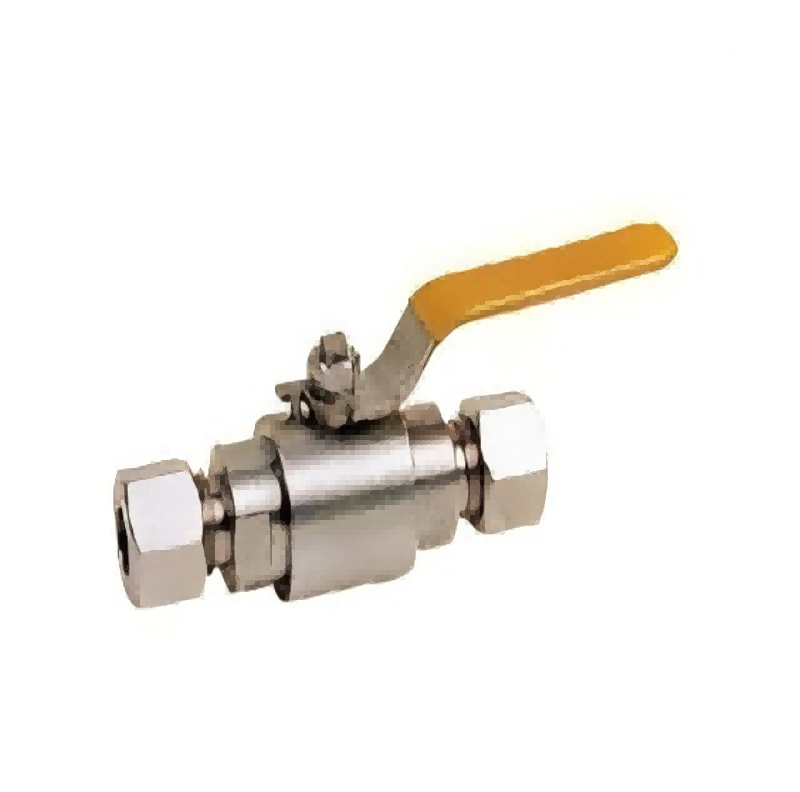

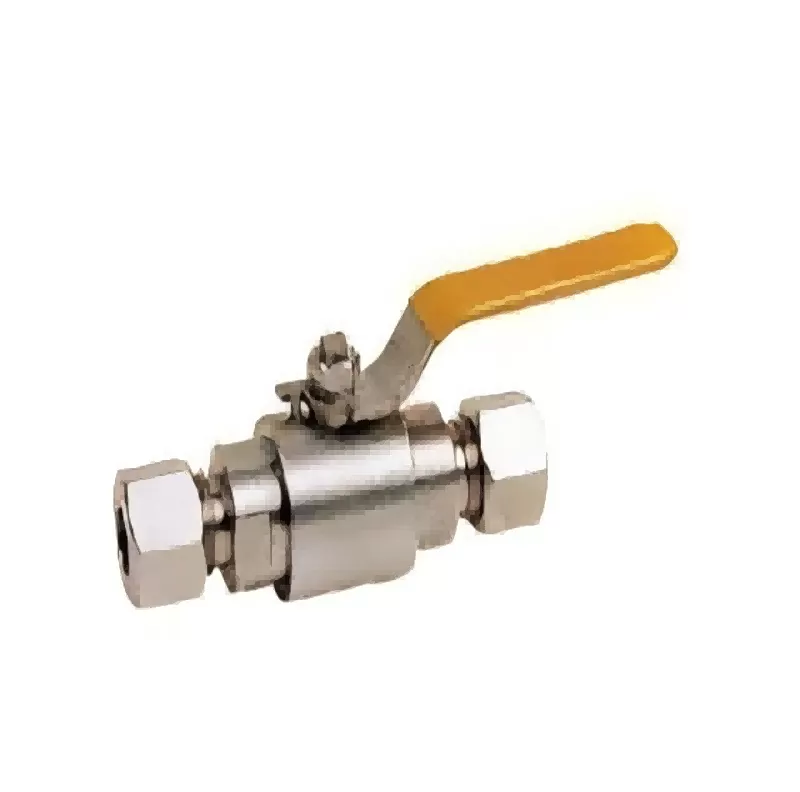

QG•Y1 sleeve ball valve,sleeve ball valve

QG•Y1 sleeve ball valve design features:

1) The fluid resistance is small, and the full-diameter ball valve has basically no flow resistance.

2) Simple structure, small size and light weight.

3) Tight and reliable. It has two sealing surfaces, and the sealing surface material of the ball valve is widely used in various plastics, which has good sealing property and can achieve complete sealing. It has also been widely used in vacuum systems.

4) Easy to operate, open and close quickly, high-performance ball valve from fully open to fully closed as long as the rotation of 90 degrees, easy to remote control.

5) Easy maintenance, ball valve structure is simple, the sealing ring is generally active, disassembly and replacement are more convenient.

6) When fully open or fully closed, the sealing surface of the ball and the seat is isolated from the medium, and the medium will not cause erosion of the valve sealing surface when it passes through.

7) Wide range of application, small diameter to a few millimeters, large to a few meters, from high vacuum to high pressure can be applied.

8) Because the ball valve has wipeability during opening and closing, it can be used in media with suspended solid particles.

QG•Y1 bushing ball valve is driven by the opening and closing part (ball) by the valve stem and rotates around the ball valve axis. It can also be used for fluid regulation and control, in which the hard sealed V-shaped ball valve has a strong shear force between the V-shaped ball core and the surfacing cemented carbide metal seat, especially suitable for the medium containing fiber, small solid particles and so on.In the appearance of the form of integration, to ensure that it is good in the use of sealing characteristics. Especially in the connection of high temperature and high pressure pipelines or in the opening and closing device, it can better reflect the characteristics of leakage prevention, long service life and good sealing. Ball valve is widely used in food, chemical, pharmaceutical, liquefied petroleum gas pipeline opening and closing, control operations.It can be used for fluid regulation and control, among which the V-shaped ball valve with hard seal has a strong shear force between the V-shaped ball core and the metal seat of surfacing cemented carbide, especially suitable for the medium containing fiber, small solid particles and so on
