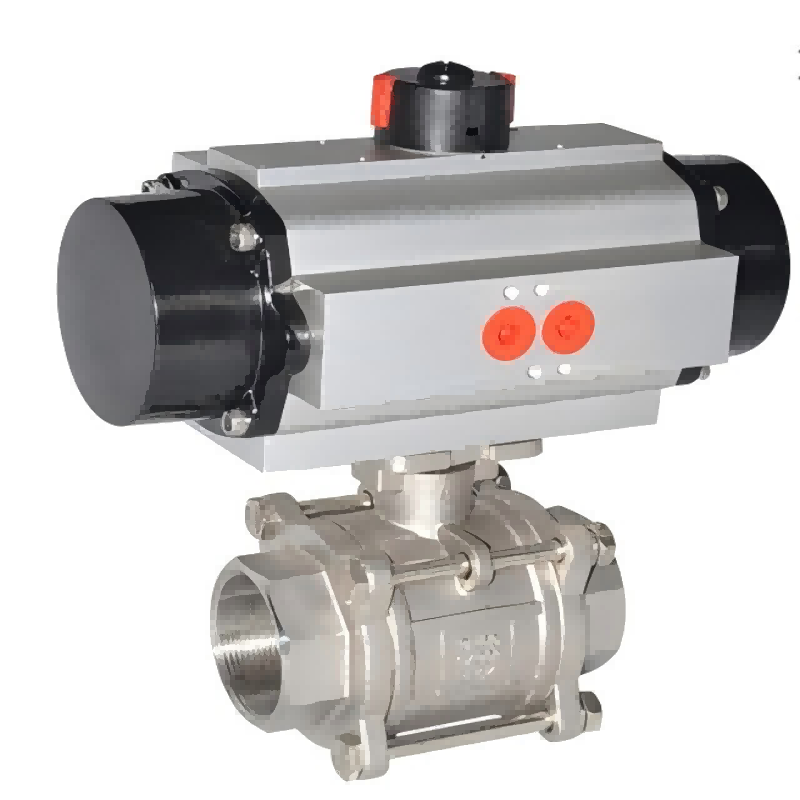

3 pc pneumatic ball valve, pneumatic ball valve, ball valve

Description

This 3 pc pneumatic ball valve is sure to meet your needs, no matter how demanding! It offers a range of features and benefits such as a 1/4” ~ 4” Full Port, body made with CF8M/CF8/WCB, seats with PTFE/R-PTFE, and ends such as BSP, BSPT, NPT, DIN, ISO or Butt Welding/Socket Welding. This valve also offers a pressure rating of 1000wog pn63. On top of that it has a number of design features to ensure the best performance possible such as an ISO 5211 Direct mounting pad for easy automation and TA-LUFT design approval. For additional convenience it comes with its own Pneumatic Actuator which has an output torque from 10Nm to 8000 Nm and control options such as Double Acting Single Acting normally closed or Single Acting normally open. Further accessories are available such as Solenoid valve, limit switch box , filter, E/P positioner, hand wheel ensuring you have everything you need in one package. This product also lets you make precise bidirectional adjustments in both the open and closed positions (with up to 5° limit adjustment). Its special materials and coatings provide great protection from corrosion so you can rest assured this product will stand the test of time.

Description

Pneumatic Actuator
Output Torque 10Nm to 8000 Nm
Control: Double acting,Single acting normally closed, acting,Single normally open
Pneumatic accessories: Solenoid valve, limit switch box , filter, E/P positioner, hand wheel

All double acting and spring return units are suitable for both on/off and throttling applications. Actuators which can be actuated with other media such as hydraulic oil or water are also available as an option.

1, Two independently adjustable travel stop screws and a cam on the output shaft to permit precise bidirectional adjustment of movement in both the open and closed positions for quarter turn valves (+5° to -5° limit adjustment)
2, Integral porting
3, Standard units have anodized aluminum bodies with polyester coated end caps.
4, Special coatings and materials available for corrosive environments
5, NAMUR accessory compatible

Packing of Standard Packing:

Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 470 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
