Product Code : VF--PHCC-PH2-CU
Model SP15F-10/16 SP45-10/16
Nominal diameter; DN15-350
Working pressure; 1.0(MPa) 1.6(MPa)
Operating temperature; 120 ℃ or less
Applicable media; Water, steam, oil
Characteristic curve; Equal percentage
Scope of installation and use; The main body of the pipe network system, the branch pipe, the indoor water supply pipe, the branch riser and several boilers
Remark; Test pressure,1.5(MPa) 2.4(MPa); Need corrosion resistant, high pressure, high temperature valves, can be booked.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

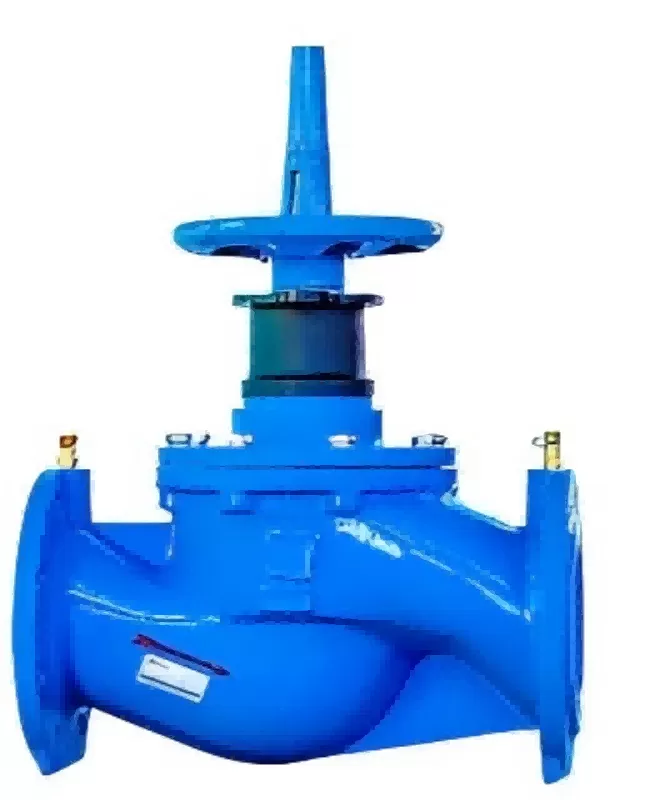

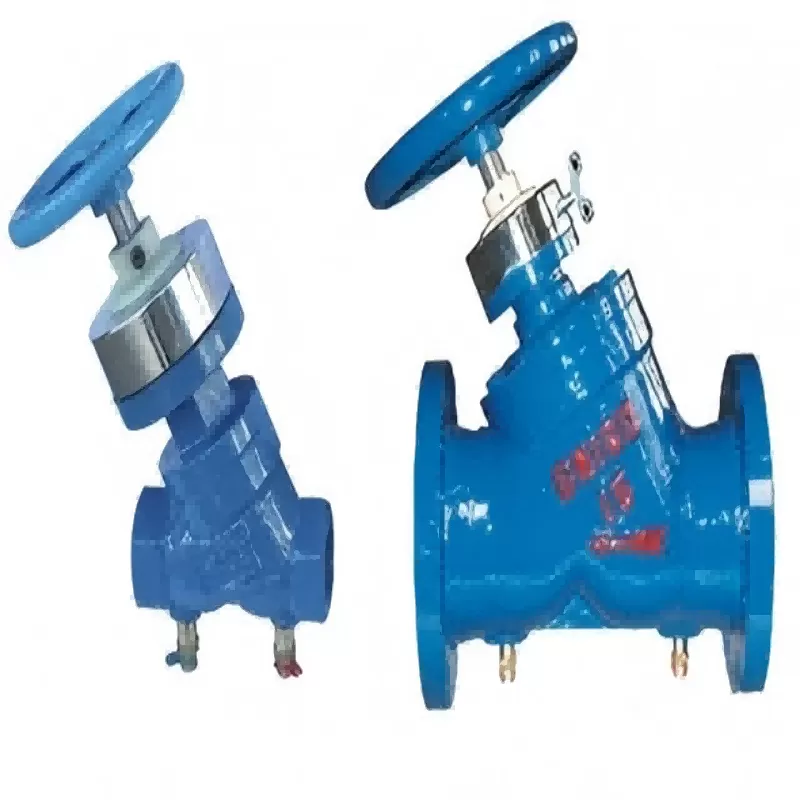

SP15F, SP45F digital locking balance valve is a digital locking special function of the control valve, the use of DC body structure, with better equal percentage flow characteristics, can reasonably distribute the flow, effectively solve the heating (air conditioning) system in the room temperature uneven problem. At the same time, it can accurately adjust the pressure drop and flow rate to improve the liquid flow state in the pipe network system, achieve the liquid balance of the pipe network and save the source. The valve is equipped with an opening indicator, an opening locking device and a small pressure valve for flow measurement. As long as the balance valve of the appropriate specifications is installed in each branch and the user's entrance, and the balance valve is locked after one-time debugging with a special intelligent instrument, the total water volume of the system is controlled within a reasonable range, thus overcoming the unreasonable phenomenon of "large flow and small temperature difference". The product is ideal for heating systems. It can be installed on the water supply pipe, can also be installed on the return pipe, generally we recommend to install on the return pipe, especially for high temperature loop, in order to facilitate debugging, but also installed on the return pipe, the supply (return) pipe installed with the balance valve does not need to set the stop valve.
Installation and use of the main pipe network system, branch dry, indoor water supply pipe, branch riser and multiple boilers
