Product Code : AL-TaW-Ta90W10-SP
Tantalum Tungsten Alloy excels due to its sensible mechanical properties and glorious corrosion resistance. 97.5% Tantalum 2.5% Tungsten (Ta-2.5W) alloy is widely applied in chemical industry. The corrosion resistance of tantalum-tungsten alloy is better than pure tantalum. Ta2.5W can be used as the corrosion protection component of heat exchange equipment in chemical industry, pipe and lining, anti-corrosion of instrument and instrument, crucible of rare earth smelting, etc. The addition of 2.5 % to 10 % tungsten to tantalum increases the strength of the material, and the alloying of tungsten to tantalum forms an alternative continuous solid solution that still maintains the body-centered cubic crystal structure of tantalum, while also maintaining the easy processing properties of tantalum. Tantalum alloys that are currently widely used in industry include Ta-2.5W, TaW10, TaW12, and Ta-7.5W.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
Product | Product Code | Purity | Size | Contact Us |
Tantalum Tungsten Alloy excels due to its sensible mechanical properties and glorious corrosion resistance. 97.5% Tantalum 2.5% Tungsten (Ta-2.5W) alloy is widely applied in chemical industry. The corrosion resistance of tantalum-tungsten alloy is better than pure tantalum. Ta2.5W can be used as the corrosion protection component of heat exchange equipment in chemical industry, pipe and lining, anti-corrosion of instrument and instrument, crucible of rare earth smelting, etc. The addition of 2.5 % to 10 % tungsten to tantalum increases the strength of the material, and the alloying of tungsten to tantalum forms an alternative continuous solid solution that still maintains the body-centered cubic crystal structure of tantalum, while also maintaining the easy processing properties of tantalum. Tantalum alloys that are currently widely used in industry include Ta-2.5W, TaW10, TaW12, and Ta-7.5W.
Synonyms
UNS R05252, B521, B708, Tantaloy 63, Tantaloy 61, Tantaloy 60, Tantalum 10% Tungsten, Tantalum Tungsten 2.5%, Tantalum Tungsten 7%, Tantalum TA10W, Ta90W10

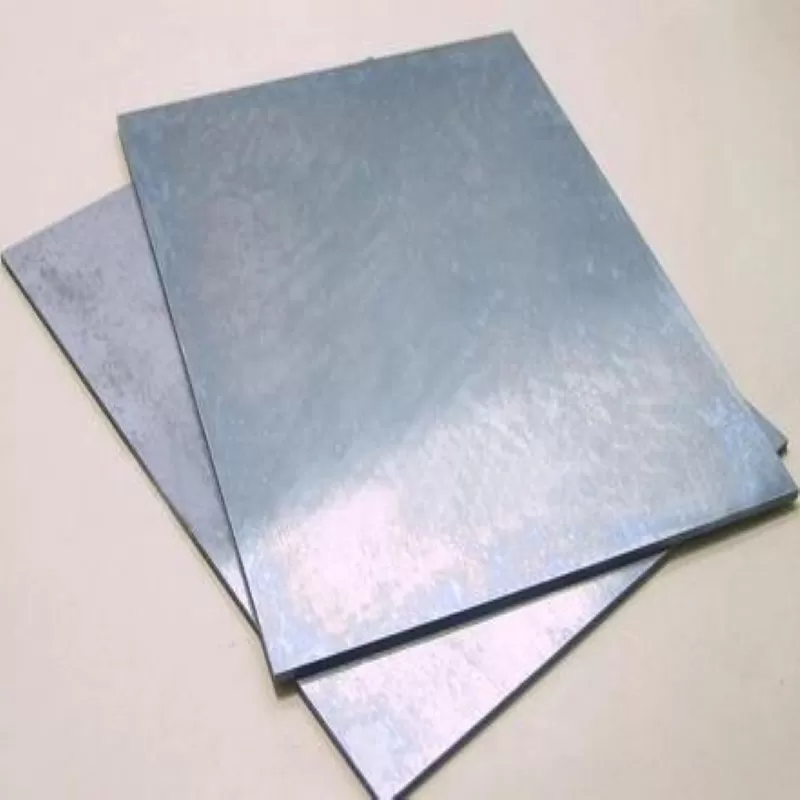

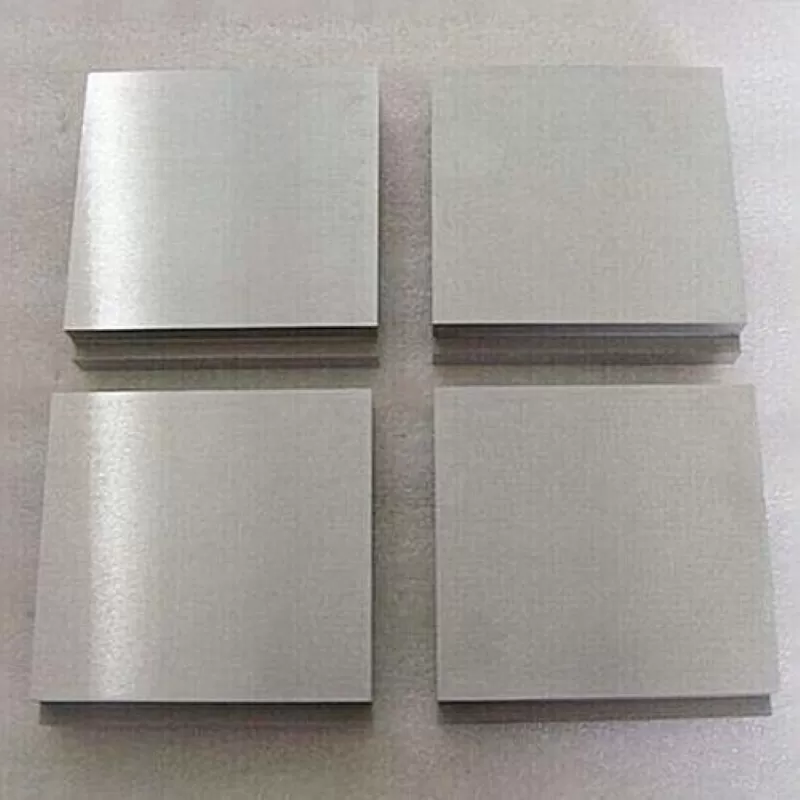

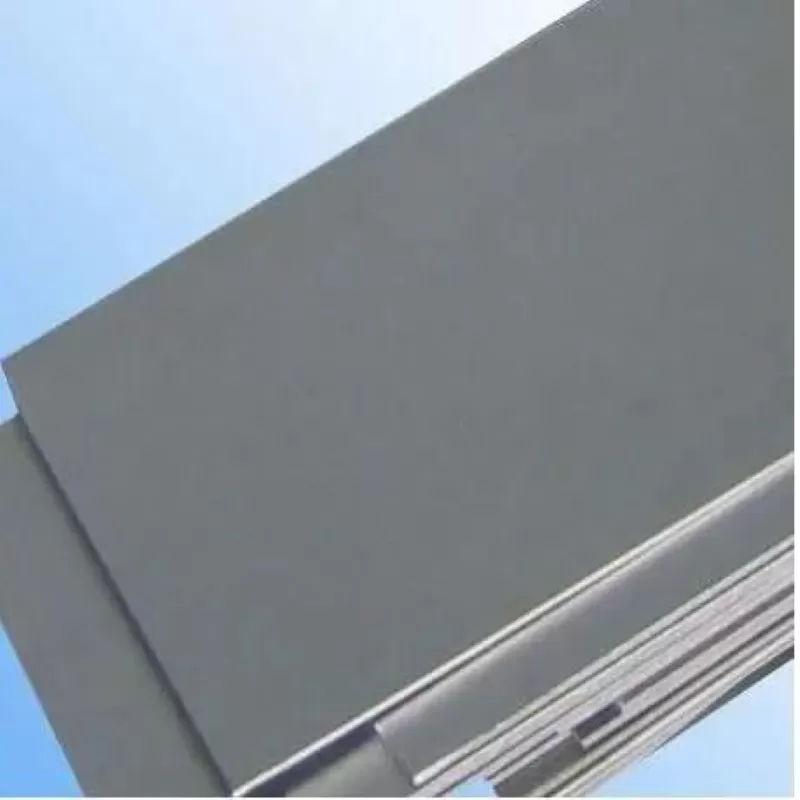

Tantalum Tungsten Sheet Specification
Dimensions
Size:Thickness: 0.07-10 mm
Width: 30-1000 mm
Length: 30-3000 mm
Standard:ASTM B708
Per your request or drawing
We can customized as required
Tantalum Tungsten (TaW) Alloy Materials
UNS R05255, tantalum alloy, 90 % tantalum, 10 % tungsten
UNS R05252, tantalum alloy, 97.5 % tantalum, 2.5 % tungsten
Customized

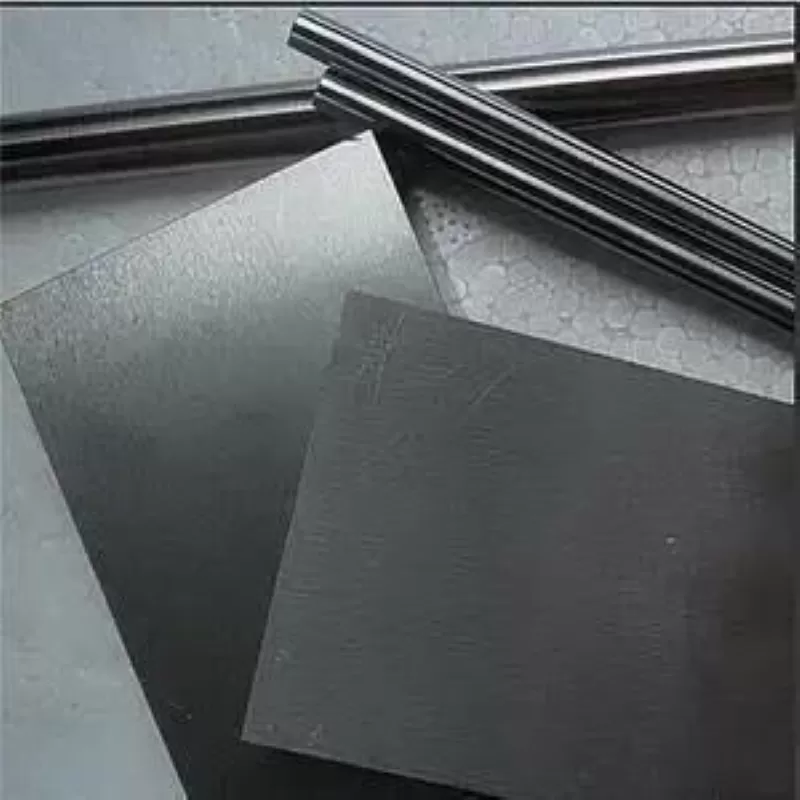

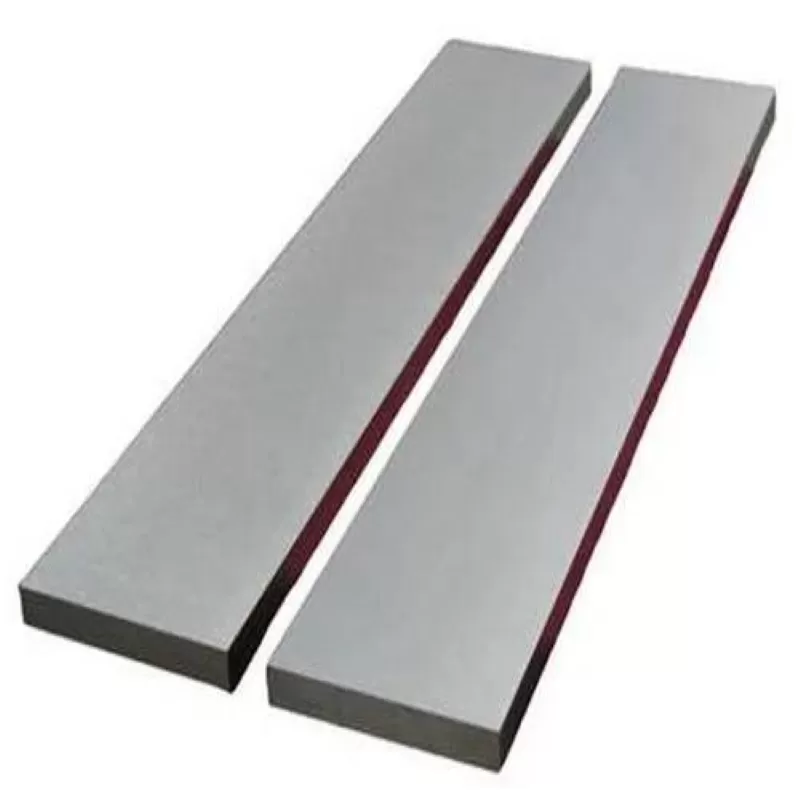

Tantalum Tungsten Alloy (TaW) Products
Materials | Ta2.5W | Ta10W | Ta5W | Ta7.5W |
Plate | √ | √ | √ | √ |
Sheet | √ | √ | √ | √ |
Strip | √ | √ | √ | √ |
Rod | √ | √ | √ | √ |
Powder | √ | √ | √ | √ |
Tube | √ | √ | √ | √ |
Other: Spherical Tantalum Tungsten Alloy Powder, Tantalum tungsten alloy crucibles, Tantalum-tungsten alloy nuts, Tantalum-tungsten alloy bolts, Tantalum-tungsten alloy heating elements, and Tantalum-tungsten alloy shielding screens.
Properties(Theoretical)
Products | O | C | H | N | Nb | W | Mo | Si | Fe | Ti | Ni | Others | Ta |
Ta-2.5W | 0.0150 | 0.0100 | 0.0015 | 0.0100 | 0.5000 | 2~3.5 | 0.0200 | 0.0050 | 0.0100 | 0.0100 | 0.0020 | 0.0010 | Balance |
Products | O | C | H | N | Nb | W | Mo | Si | Fe | Ti | Ni | Others | Ta |
Ta-10W | 0.0150 | 0.0100 | 0.0015 | 0.0150 | 0.1000 | 9~11.0 | 0.0200 | 0.0050 | 0.0100 | 0.0100 | 0.0100 | 0.0010 | Balance |
Mechanical Properties
Compound Formula | TaW (2.5% W) |
Appearance | Metallic solid in various forms (plate/sheet, bar, rod, strip, foil, wire, disc, sputtering target) |
Melting Point | 3005-3030 °C |
Boiling Point | N/A |
Density | 16.7-16.9 g/cm3 |
Solubility in H2O | N/A |
Electrical Resistivity | 0.0000176 ohm-cm |
Tensile Strength | 280 MPa (21°C) |
Tensile Strength | 180 MPa (750°C) |
Tensile Strength | 125 MPa (1000°C) |
Yield Strength | 195 MPa (21°C) |
Yield Strength | 80 MPa (750°C) |
Yield Strength | 70 MPa (1000°C) |
Elongation | 20% (21°C) |
Elongation | 22% (750°C) |
Elongation | 20%(1000°C) |
Vickers Hardness | 245 (7.5% W) |
Ta-2.5W Corrosion Rate in Different Concentrations of Sulfuric Acid | |||
Temperature | Corrosion Rate/mm·a-1 | ||
85.43%H2SO4 | 90.20%H2SO4 | 95.31%H2SO4 | |
175 | 0.01042 | 0.01167 | 0.01174 |
200 | 0.03374 | 0.0326 | 0.03453 |
250 | - | 0.27361 | 0.27773 |
Applications of Tantalum Tungsten sheet
• Used as a heating exchanger and heating element in chemical processing due to its high heat resistance.
• Used in capacitors, electric lamp-houses, and vacuum furnace heat elements.
• Used in the electronics industry.
• Used for heat insulation.
Packing of Tantalum Tungsten sheet
Standard Packing:
Sealed bags in carton boxes. Special package is available on request.
E FORUs’ Tantalum Tungsten sheet is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition
Chemical Identifiers
Linear Formula | Ta-W |
MDL Number | N/A |
EC No. | N/A |
Pubchem CID | 57464935 |
IUPAC Name | tantalum; tungsten |
SMILES | [Ta].[W] |
InchI Identifier | InChI=1S/Ta.W |
InchI Key | DZZDTRZOOBJSSG-UHFFFAOYSA-N |
