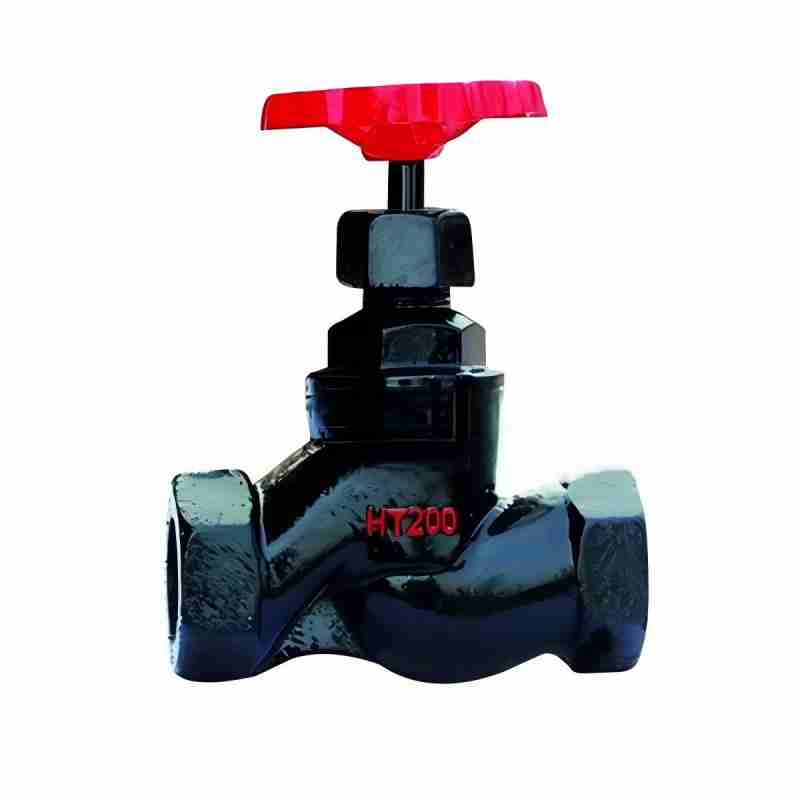

J11T cast iron screw stop valve

Overview of cast iron screw stop valves

The globe valve is a commonly used cut-off valve, mainly used to press or cut off the medium in the pipeline, generally not used to regulate the flow, the globe valve is applicable to a large range of pressure and temperature, but generally used for medium and small caliber pipelines. Compared with the gate valve, the globe valve structure is simple, manufacture and maintenance are more convenient, the sealing surface is not easy to wear, abrasion, sealing is better, longer life, the valve disc stroke is smaller when opening and closing, the opening and closing time is shorter, and the valve height is smaller. Widely used in water supply and drainage, gas, electric power, metallurgy, petroleum, chemical, textile and urban construction industries, in the steam, water, oil medium pipeline for opening and closing

Cast iron globe valve uses

Cast iron globe valve installed on the pipeline, for opening and closing, J41T-16 is suitable for working temperature ≤200℃ water, steam medium pipeline, J41W-16 is suitable for working temperature ≤200℃ oil medium pipeline.

Globe valve model: J11T J11W

Nominal diameter: 15MM-50MM

Operating pressure: 1.0MPA-1.6MPA

Connection mode: threaded connection

Globe valve type: manual

Main function: switch function

Medium of use: water. Oil. steam

Globe valve material: HT200 cast iron

Standard: Mechanical department standard or custom non-standard

Packing of Standard Packing:

 Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 2022 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
