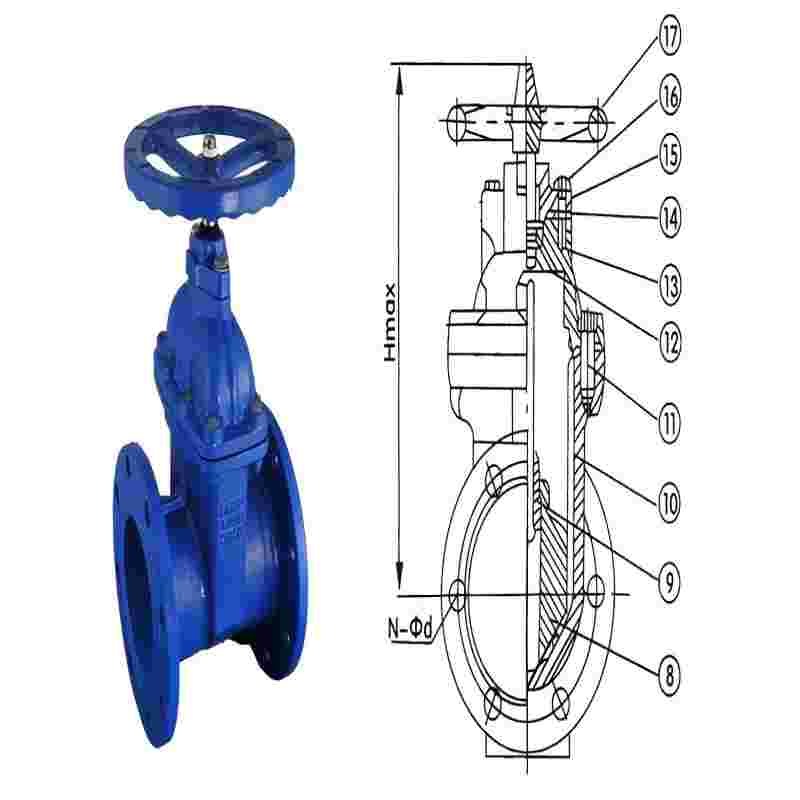

Z45X dark rod elastic seat seal gate valve

Material list of main parts

Sequence number part name material

1 Body gray cast iron, ductile cast iron, cast steel

2 Gate plate nodular iron coated with EPDM or nitrile rubber

3 hex bolt carbonization treatment

4 Seal ring nitrile rubber, EPDM

5 Valve cover gray cast iron, ductile iron, cast steel

6 Stem stainless steel

7 "O" sealing ring butadiene rubber, EPDM

8 thrust bearing tin-green steel

9 bolt stainless steel

10 Gland nodular cast iron, cast steel

11 Dust cover nitrile rubber

12 hand wheel (drive cap) cast iron

Z45X dark rod elastic seat seal gate valve uses the whole gate valve to produce deformation compensation effect to achieve a good sealing effect, to overcome the general gate valve bad seal, water leakage and rust phenomenon, more effective and save installation space. It can be widely used in tap water, sewage, construction, petroleum, chemical, food, medicine, textile, electric power, ships, metallurgy, energy systems and other fluid pipelines as regulating and intercepting devices.
