Product Code :

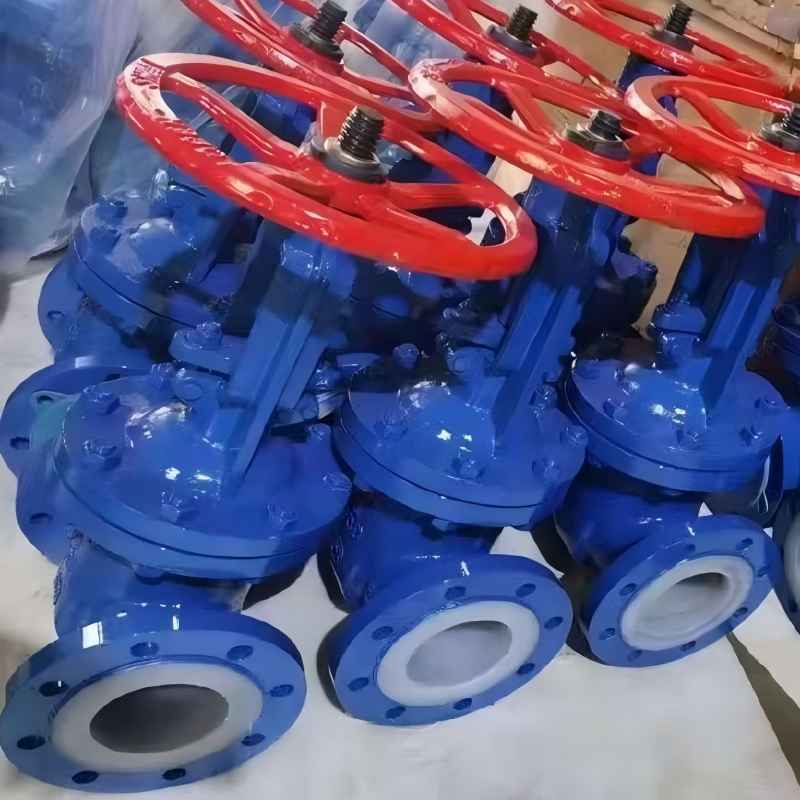

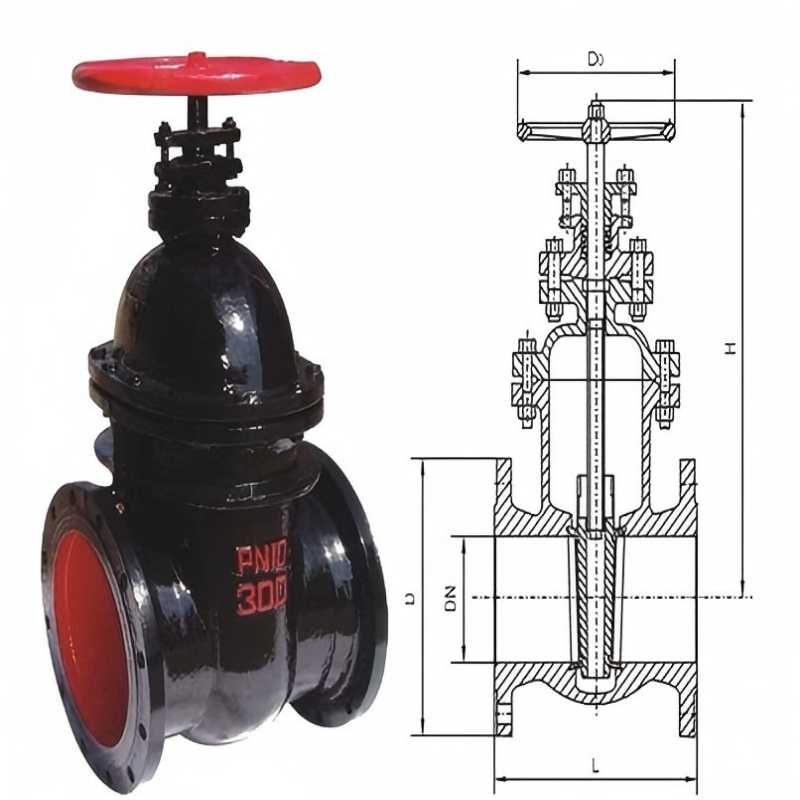

Product name: Cast iron gate valve
Product model: Z41H, Z45H
Nominal diameter: DN40 ~ DN1200
Structure: ram type
Nominal pressure: 1.0MPa-1.6MPa
Connection mode: flange
Applicable temperature: -20ºC to +200ºC

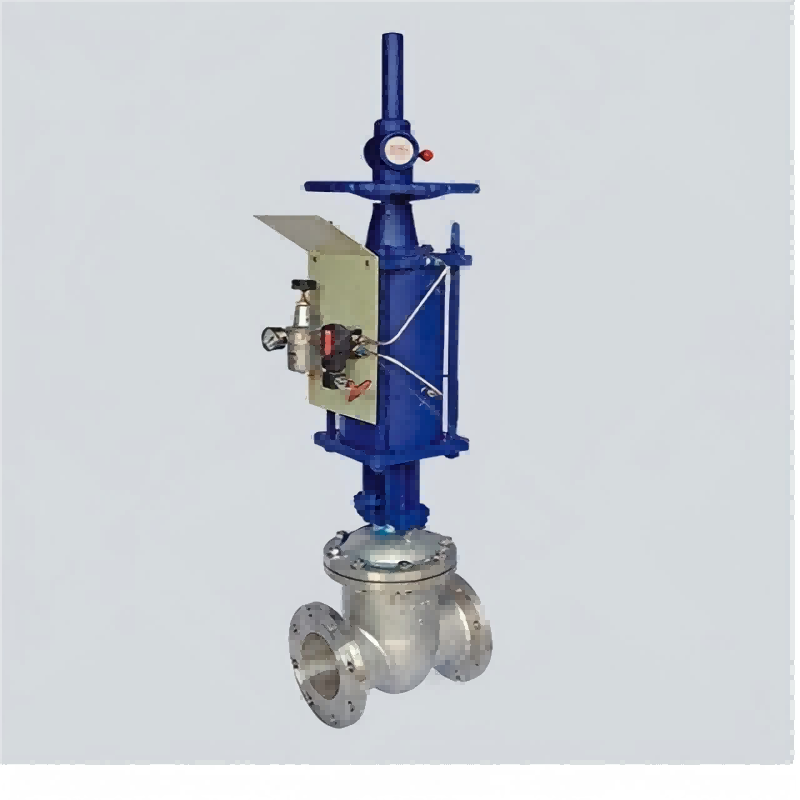

Driving mode: manual, bevel gear, electric, pneumatic, hydraulic
Body material; HT200, HT250, cast iron
Manufacturing standards: GB, DIN, API, ANSI
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
Z45T main parts materials
Model Valve body, valve cover, ram seal ring valve stem packing
Z45T-10 gray cast iron, ductile cast iron stainless steel carbon steel, stainless steel impregnated asbestos packing
Z41T/Z45T cast iron gate valve clear rod and dark rod are suitable for 1.0MPa, working temperature -29 ~ 200℃ of the pipeline, used to cut off or connect the medium in the pipeline. Can be applied to water, steam, oil and other media. Drive mode Manual, bevel gear and electric
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 2022 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
