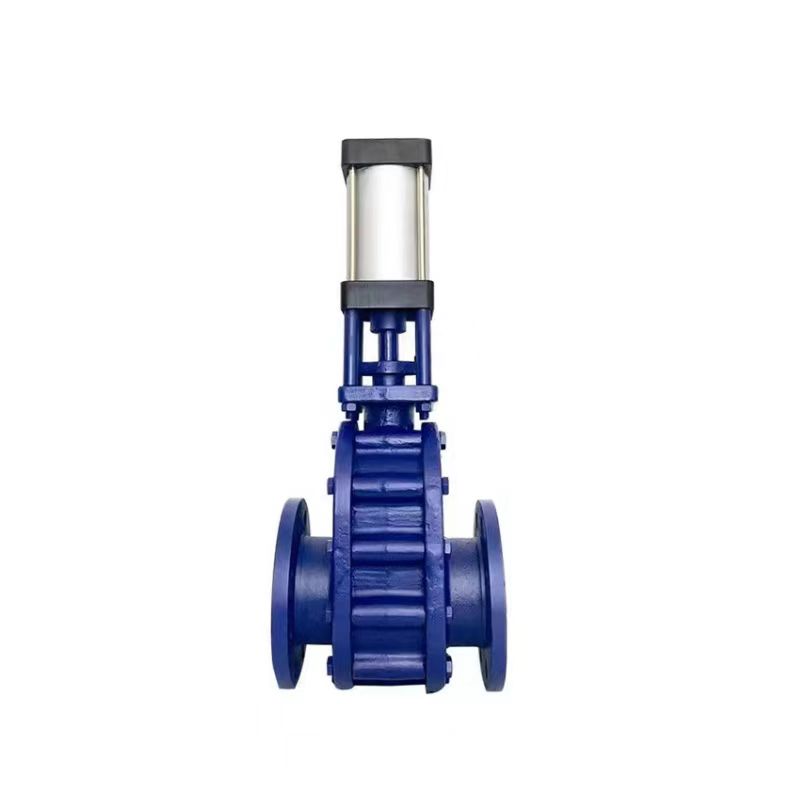

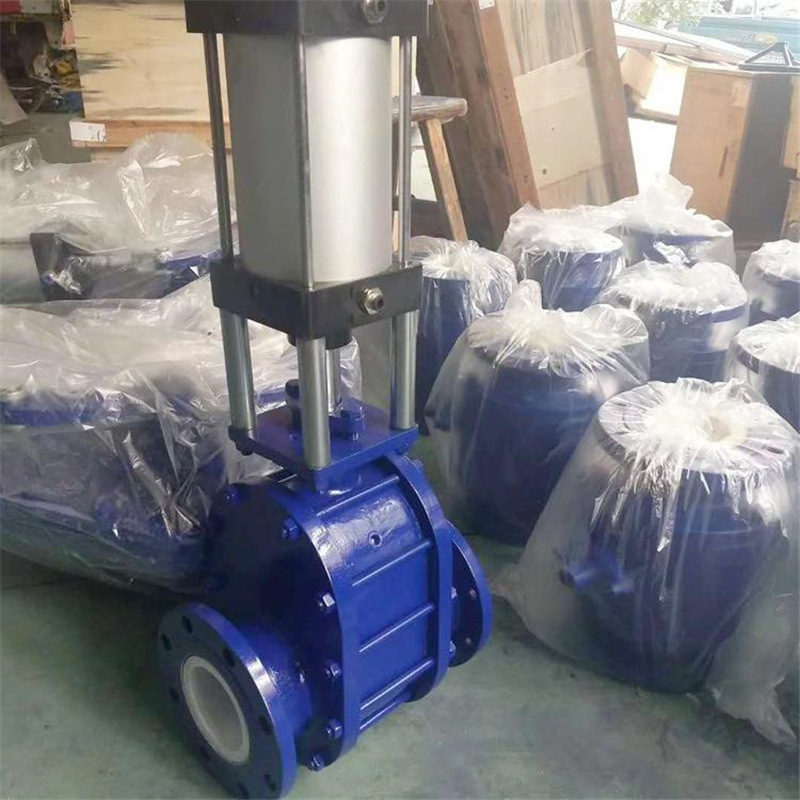

Pneumatic double gate ceramic gate valve Z644TC-10C-DN200 is a specific specification of gate valve.
Its connection mode is flange connection interface, this connection mode is convenient to connect with the pipeline system, installation and disassembly is relatively convenient, and can provide a more stable connection structure, to ensure the sealing and reliability of the valve in the working process.
The valve body is made of carbon steel, carbon steel has good strength and toughness, can withstand a certain pressure, suitable for use in a variety of industrial environments.
The nominal pressure is 10bar (1.0MPa), which indicates the maximum pressure that the valve can withstand under normal working conditions, and is an important parameter to measure the bearing capacity of the valve
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Pneumatic double gate ceramic gate valve Z644TC-10C-DN200 is a valve used in industrial control systems with the following features and specifications:
Structural features:
The valve adopts structural ceramics as seals, with good erosion resistance and wear resistance. It has an open double ram seal structure to ensure a two-way seal when the valve is closed. This design enables the gate to spin during the valve opening and closing process, with polishing and self-cleaning function, reducing ash accumulation and jam phenomenon, simple maintenance and long service life
Nominal diameter and pressure: nominal diameter is DN200, nominal pressure is 10bar (i.e. 1.0MPa), suitable for a variety of industrial media such as dry ash, fly ash, solid particles, etc.
Connection method and body material:
flange connection interface, body material is carbon steel, can adapt to different working environment and medium requirements
Working principle:
The pneumatic actuator is driven by a completely closed push rod type straight cylinder, with reliable performance and large output torque, which can work under harsh working conditions. The valve is opened and closed through the air source from the upper air port or the lower air inlet, pushing the valve stem to drive the valve plate up and down to achieve. The spring is loaded between the valve plate and the seat, and the spring force always keeps the valve plate pressure to the seat to ensure the sealing of the valve, while allowing the valve plate to move in the vertical up and down direction, which helps to compensate for the thermal expansion of the valve part, and can overcome the impact of any change in back pressure on the seal and prevent granular media from entering between the two sealing surfaces
Use of pneumatic double gate ceramic gate valve Z644TC-10C-DN200
Pneumatic double gate ceramic gate valve Z644TC-10C-DN200, as a special design valve, is widely used in many industries and fields, especially in the need to deal with wear of solid or liquid media. Here are some of the main uses of the valve:
Dry ash system of thermal power plant
In thermal power plants, the operating environment of dry ash system is usually harsh, and the medium contains a lot of dust and particulate matter. The pneumatic double gate ceramic gate valve Z644TC-10C-DN200 is ideal for the discharge conveying of such systems due to its excellent wear resistance and reliable sealing properties, ensuring the stable operation of the system12.
Bin pump discharge transport
Bin pump is a commonly used material conveying equipment, often used to transport powder or granular materials. Pneumatic double gate ceramic gate valve Z644TC-10C-DN200 can effectively control the discharge process of the bin pump, ensure the smooth delivery of materials, while reducing valve wear, extend the service life 12.
Chemical industry
In the chemical industry, many processes involve corrosive or abrasive media. The ceramic seal pair and carbon steel body of the pneumatic double gate valve Z644TC-10C-DN200 can resist the erosion of these media to ensure the long-term reliable operation of the valve 12.
Metallurgical industry
Many operating processes in the metallurgical industry produce large amounts of high temperature, high pressure and abrasive media. Pneumatic double gate ceramic gate valve Z644TC-10C-DN200 can maintain good sealing performance and durability under these harsh conditions, suitable for a variety of bulk material conveying systems 12.
Paper industry
In the paper industry, the transportation of pulp and other fibrous materials also requires reliable valves to control. Pneumatic double gate ceramic gate valve Z644TC-10C-DN200 can effectively cope with the wear of these media to ensure the smooth transmission process12.
Pharmaceutical industry
The pharmaceutical industry has very high requirements for the cleanliness of the production process and the purity of the media. The high tightness and corrosion resistance of the pneumatic double gate ceramic gate valve Z644TC-10C-DN200 make it the ideal valve choice in the industry to ensure the quality of pharmaceutical production
