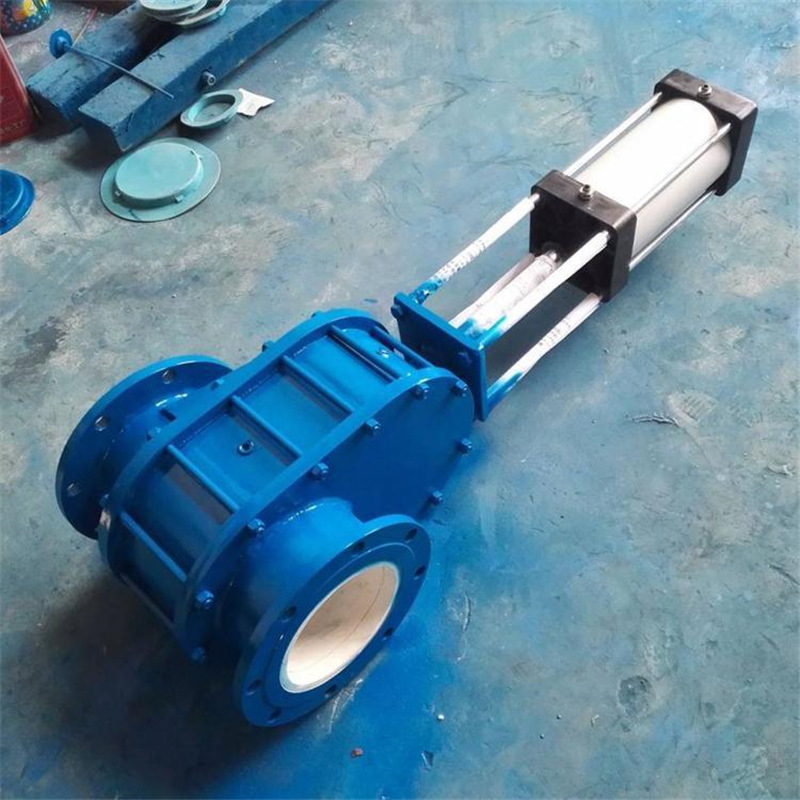

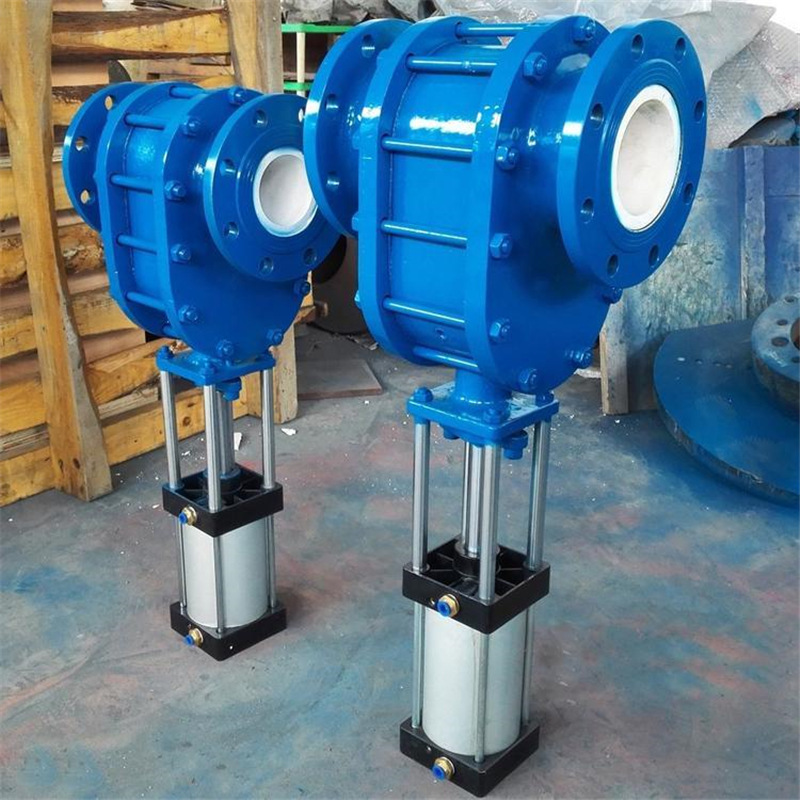

Pneumatic ceramic double gate valve Z644TC-10C-DN200 flange connection nominal pressure 10bar

Main feature

Structural ceramic manufacturing: Ram, gate seat and flow parts are made of high-performance structural ceramics, with excellent wear and corrosion resistance, long service life

Spin seal design: The unique structural design makes the valve plate spin during the valve closing process, realizing the self-fitting seal between the valve plate and the seat, effectively preventing media leak

Avoid sticking problems:

 The cavity design completely avoids the problem of sticking, improving the operating efficiency and safety of the valve

Compatible with a variety of transmission devices: it can meet the needs of manual, pneumatic, electric and other transmission devices, increasing the flexibility of use.

Technical parameter

Nominal diameter: DN200

Nominal pressure: 10bar (1.0MPa)

Applicable medium: pulp medium

Seal form: hard seal type

Driving mode: pneumatic

Operating temperature: normal temperature

Scope of application: It is suitable for dry ash system of thermal power plant, discharge conveying of warehouse pump and bulk material conveying system in chemical, metallurgy, paper making, pharmaceutical and other industries.

Installation instructions

In order to ensure the normal operation of the valve and extend the service life, the following precautions should be followed during installation:

Installation direction: It is strictly forbidden to install the cylinder downward, and the cylinder should be installed vertically upward as far as possible, or the cylinder should be installed 45 degrees upward when conditions are not allowed.

Pneumatic ceramic double gate valve Z644TC-10C-DN200 flange connection nominal pressure 10bar, due to its excellent performance and wide applicability, is widely used in many industries and fields. The following are the main uses of the valve:

Dry ash system of thermal power plant

In the dry ash system of a thermal power plant, the pneumatic ceramic double gate valve Z644TC-10C-DN200 flange with a nominal pressure of 10bar is used to control and regulate the flow of dry ash. Its wear resistance enables long-term stable operation in high wear environments, ensuring efficient and safe system

Bin pump discharge transport

The valve is also commonly used in the bin pump discharge conveying system, through the pneumatic drive mode, to achieve accurate control of the bin pump discharge. Its good sealing performance and durability can effectively prevent material leakage and ensure the smooth progress of the conveying process.

Chemical industry

In the chemical industry, the pneumatic ceramic double gate valve Z644TC-10C-DN200 flange connection nominal pressure of 10bar can be used to handle a variety of corrosive and abrasive chemicals. Its characteristics of corrosion resistance and wear resistance make it an indispensable and important equipment in the chemical production process.

Metallurgical industry

In the metallurgical industry, the valve also plays an important role. It can withstand high temperature and high pressure working environment, suitable for all kinds of metal smelting and processing process media control

Paper industry

In the paper industry, pneumatic ceramic double gate valves Z644TC-10C-DN200 flanged with a nominal pressure of 10bar are used to control the transfer of pulp and other liquids. Its reliable sealing performance and durability ensure continuous operation of paper production lines

Pharmaceutical industry

In the pharmaceutical industry, the valve is used to handle the delivery of various liquid and powdered drugs. Its sanitary design and high-precision control capabilities meet the strict requirements of pharmaceutical processes for valves
