Product Code : VF--ZCC-Z41-CU

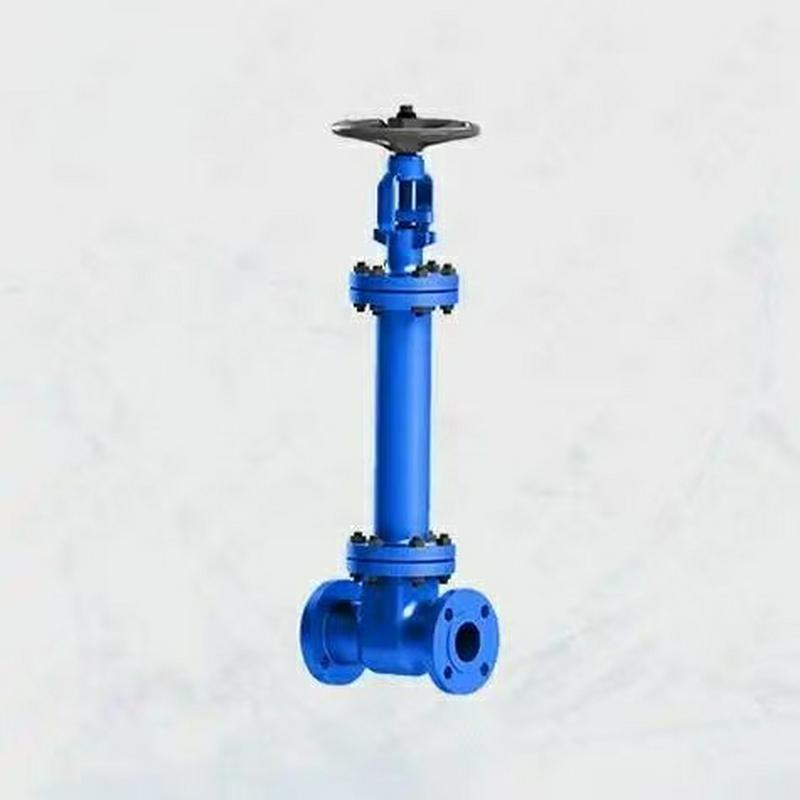

Bellows valves are generally used in conditions where the leakage level has strict requirements, and the leakage causes harm to the operator or damage to the environment. The upper and lower ports of the bellows are fixed to the valve cover and the valve stem respectively. When the valve stem moves up and down, the bellows are driven to expand and expand, and the leakage caused by the sliding seal of the valve stem is eliminated.
Caliber range: 2""~30""(DN50~DN1650)
Pressure rating: ASME CLASS 150~1500 (PN16~PN260)
Main material: carbon steel, stainless steel, alloy steel, low temperature steel, duplex steel and nickel-based alloy steel
Connection mode: RF, BW, RTJ
Operation mode: manual, pneumatic, electric and hydraulic
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
The bellow seal globe valve is designed for regulating fluid flow in pipelines, making it ideal for applications where precise flow control is required. The valve design ensures that no leakage occurs along the valve stem, making it perfect for high-pressure systems and applications that demand tight sealing. For example, a bellow seal globe valve used in a high-temperature steam system needs to be constructed from heat-resistant materials to prevent valve failure. This makes the valve highly reliable under extreme conditions.
Leak-Free Operation: The bellows seal ensures a completely leak-proof barrier, effectively preventing any fluid from escaping the valve.
Corrosion Protection: By shielding the stem from corrosion, the bellows seal significantly enhances the valve's durability and extends its operational life.
Low Maintenance: Thanks to its innovative design, the bellows seal reduces the need for regular maintenance, which helps minimize downtime and lowers overall operational costs.
High Resistance to Extreme Conditions: The bellows seal globe valve is built to endure high temperatures and pressures, making it ideal for a wide variety of demanding applications.
