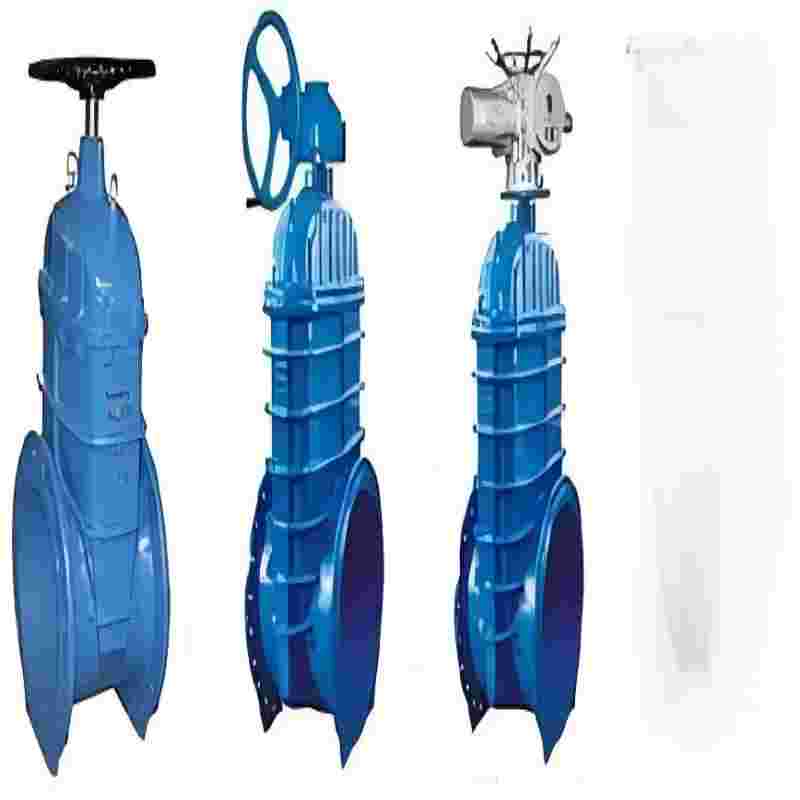

Z545X large diameter soft seal gate valve

Main parts material

Name material

Body gray cast iron, ductile cast iron, cast steel

Disc nodular cast iron coated with EPDM or nitrile rubber

Hexagon bolt carbonization treatment

Seal ring nitrile rubber

Bonnet gray cast iron, ductile cast iron, cast steel

Stem stainless steel

"O" seal ring nitrile rubber

Thrust bearing tin bronze

Bolt stainless steel

Gland nodular cast iron, cast steel

Dust cover nitrile rubber

Handwheel (drive cap) malleable cast iron

Z545X large diameter soft seal gate valve is made of the best quality ductile iron or carbon steel casting, with high strength, light weight, precise geometric characteristics, the gate has an interchangeable function, equipped with spiral bevel gear labor saving mechanism, a person can be very easy to switch, can also be installed according to the user's requirements to open and close indicator column, or electric, pneumatic actuator. Excellent sealing, rust prevention function, safe and reliable, long service life. It can be installed vertically and horizontally, and is widely used in water supply and drainage system, sewage treatment system, municipal construction, mining, gold treatment, power plant and other industries.
