Product Code :
The three-way valve has three entrances and exits connected with the pipeline, which is equivalent to two single-seat valves
Model :301F(301H) Nominal diameter :DN25~300mm
Nominal pressure :PN1.6, PN4.0, PN6.4MPa, ANSl150, 300, 600#, JIS10, 20, 30, 40K
Operating temperature: normal temperature type (-5~ +230℃)
Elongation Type I (-45~-5℃ +230 ~ ~+566℃)
Material :wCB, CF8, CF8M, wc9, etc
Driving device: pneumatic, electric, hydraulic
Leakage level :ANSI ClasslV
Implementation standards :ANSl B16.104, GB/T4213-2008, JB/T7387-94, VDS4006-92 Suitable for petroleum, chemical, metallurgy, electric power, environmental protection and other industries of liquid, gas medium flow regulation
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

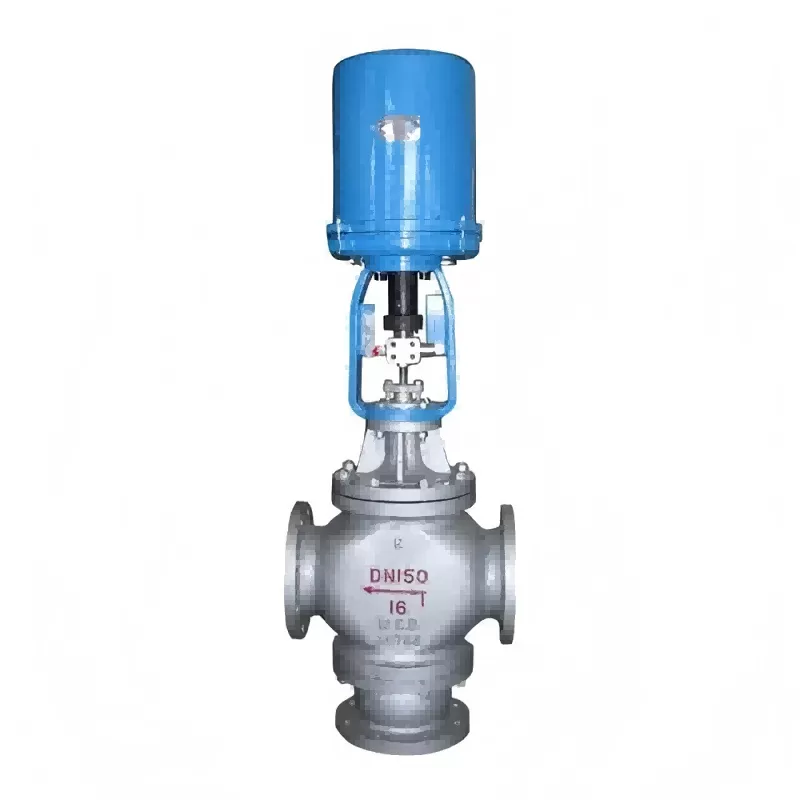

The three-way regulating valve is composed of a straight stroke electronic electric actuator and a three-way combination (shunt) valve with a cylindrical thin wall window spool. With compact structure, light weight, sensitive action, accurate flow characteristics, directly accept the input of regulating instrument (4-20mA DC 0-10mA DC or 1-5V DC) and other control signals and single-phase power supply can control the operation, to achieve automatic regulation and control of process pipeline fluid media. It is widely used to accurately control the process parameters of gas, liquid, steam and other media, such as pressure, flow rate, temperature, liquid level and other parameters to maintain the given value.It is suitable for the condition that a fluid is divided into two ways through the three-way valve or the two fluids are combined into one fluid through the three-way valve
This series of products are widely used in chemical industry, petroleum, metallurgy, power station, textile, paper and pharmaceutical and other industrial production process automatic regulation and remote control. The product pressure grade is PN1.6 4.0 6.4MPa; Nominal diameter DN25~300mm; The applicable fluid temperature is -40~+450℃; According to the temperature, different valve covers can be divided into normal temperature type and high temperature type
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 2022 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
