Product Code : VF--DDW-N35-CU

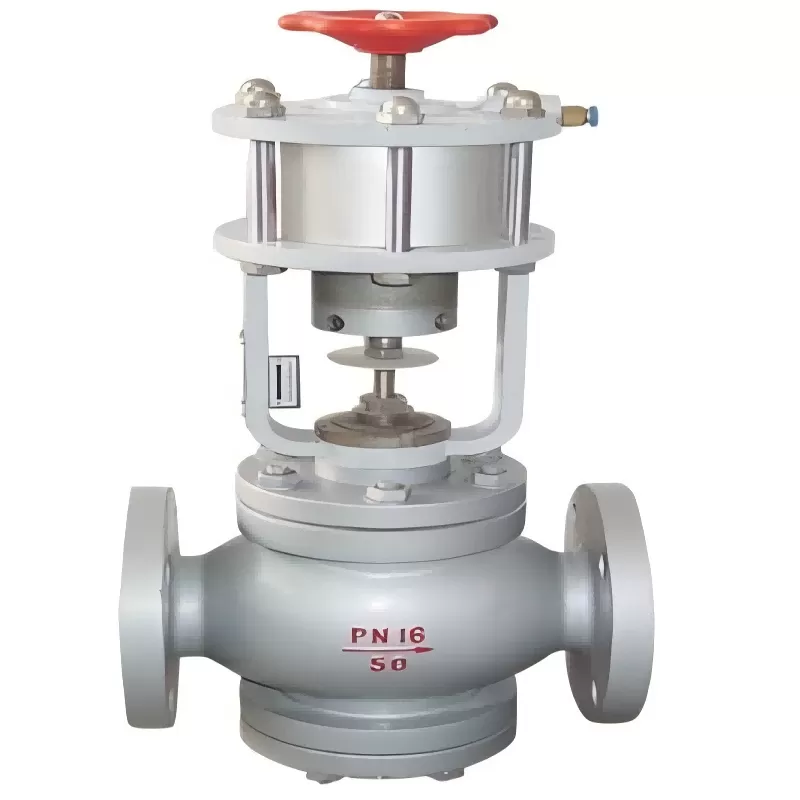

ZSQP series pneumatic piston shutoff valve is a kind of high efficiency valve, widely used in petroleum, chemical industry, metallurgy, electric power and other industrial fields. With its excellent performance and high reliability, the valve has become an important part of the automatic control system.
How it Works:
When the signal pressure is zero, due to the pre-tightening force of the spring (single action only), the spool is in the initial state (normally open or normally closed). When the actuator receives the signal pressure (0.4~0.6MPa), the spring is compressed to drive the push rod, valve body and valve core to move to the limit position, so that the valve is fully open or fully closed. To make the medium in the pipeline connected, cut off or switch control between pipelines. With two-position three-way electric sample valve, the control of piston type cut-off valve is more convenient and simple.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Specification
Size：customized
Purity: customized
Per your request or drawing
We can customized as required
Parameters:
Valve body, bonnet :HT200, ZG230-450, ZG1Cr18Ni9Ti, ZGOCr18Ni12Mo2Ti
Seat :1Cr18Ni9Ti, Cr18Ni12Mo2Ti
Spool :1Cr18Ni9Ti, Cr18Ni12Mo2Ti
Properties (Theoretical)
Chemical composition
Applications
Cylinder block :ZG230-450
Piston :ZAlSi12
Packing: polytetrafluoroethylene, flexible graphite
Spool soft seal: reinforced PTFE
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 473 gallon liquid totes Special package is available on request. ATTs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
