Product Code : VF--DDW-N31-CU
Product overview

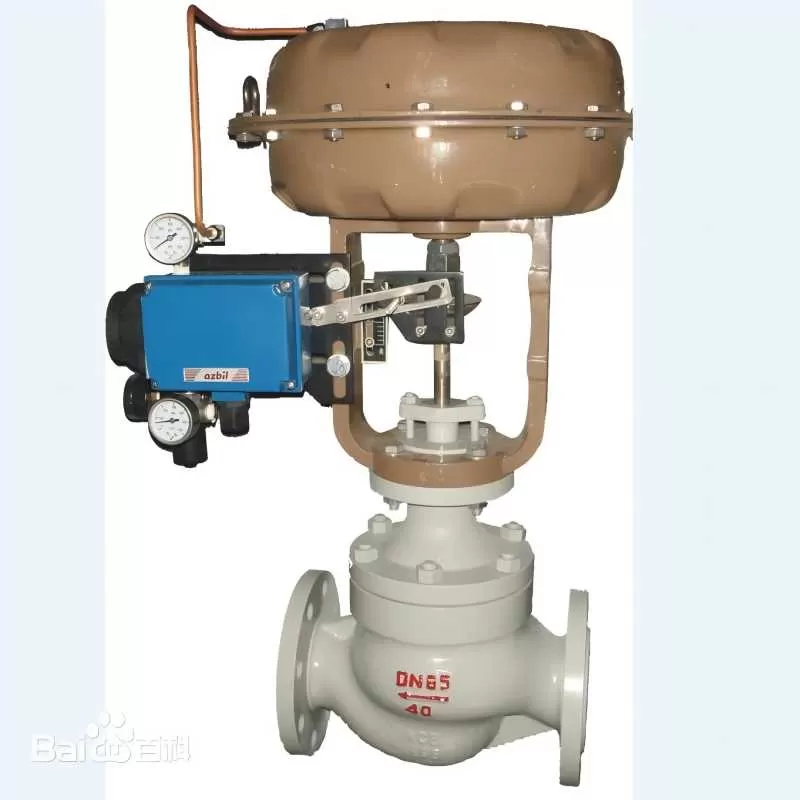

ZJHP series pneumatic film single-seat regulator has many features and advantages. ZJHP type pneumatic single-seat control valve is composed of multi-spring pneumatic film actuator and top guided through low flow resistance single-seat valve, which is the execution unit of the instrument in the automatic control system, and can realize the automatic regulation and control of the process pipeline fluid medium. Widely used in the accurate control of gas, liquid, steam and other media process parameters such as pressure, flow, temperature, liquid level and other parameters to keep at the given value, is in line with IEC standards of a new generation of general control valve products
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Specification dependent
Nominal diameter: dn300, this size determines the flow size of the fluid through the regulator, a larger nominal diameter usually means a larger flow handling capacity.
Nominal pressure: 16bar, which indicates the maximum pressure that the regulator can withstand, in practical applications, the working pressure should be within this nominal pressure range to ensure safe and reliable operation.
Body material: carbon steel, carbon steel material has a certain strength and cost advantages, suitable for a variety of industrial environments, but may need to consider anti-corrosion measures according to the characteristics of the medium, such as in some corrosive media application scenarios may require additional anti-corrosion coating.
Connection mode and actuator
Flanged connection: Flanged connection provides a reliable and convenient connection method to facilitate the installation and removal of the regulator in the piping system, and can ensure better sealing, suitable for higher pressures and larger pipe diameters.
HEP with positioner: Positioner helps to improve the control accuracy of the regulator, it can accurately adjust the opening of the valve according to the input signal, so that the valve can more accurately control the flow, pressure and other process parameters. HEP positioners may have their own characteristics, such as higher accuracy, better stability, or compatibility with specific control systems
Application scenario
Industrial field
In the automatic adjustment and remote control scenarios of industrial production processes such as chemical, petroleum, metallurgy, power station, textile, paper making and pharmaceutical, ZJHP series pneumatic film single-seat regulator may be widely used to adjust the process parameters of various fluid media, such as pressure, flow, temperature, liquid level, etc., to meet the precise control needs in the production process.
Applicable scenarios based on their own features
Because it is a single-seat valve structure, it is especially suitable for workplaces that allow small leakage and small pressure difference between the front and back of the valve. If the working scene has strict leakage requirements, such as in some high-precision chemical production processes, the material flow needs to be precisely controlled and too much leakage is not allowed, the regulator is a more suitable choice
