Product Code : VF--DDW-N34-CU

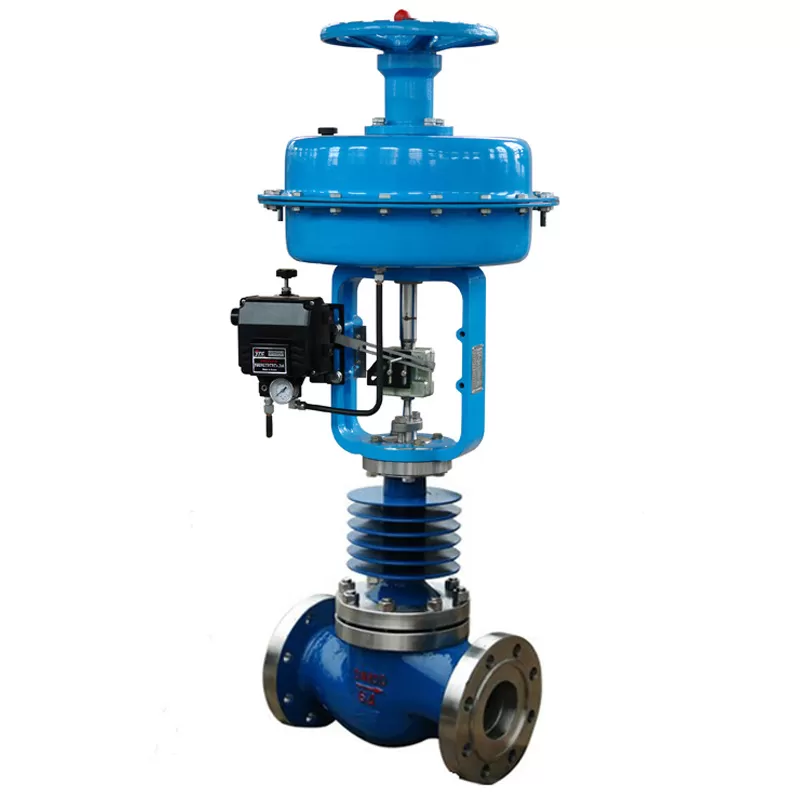

ZJHP series pneumatic thin-film single-seat regulating valve is a kind of industrial process control instrument widely used in petroleum, chemical, electric power, metallurgy and other industrial enterprises. It is mainly composed of pneumatic actuators, valves and positioners, through compressed air as a power source, the use of cylinders as actuators, with electrical valve positioners, converters, solenoid valves, holding valves and other accessories, to achieve the pipeline medium flow, pressure, temperature and other process parameters regulation
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Main feature
Simple control: easy to operate, quick response.
Intrinsically safe: No additional explosion-proof measures are required.
Compact structure: light weight, easy disassembly.
Good sealing performance: long effective service life, suitable for high pressure environment.
Technical parameter
Nominal pressure
Nominal pressure: 16bar.
Connection form
Flange connection interface: suitable for a variety of standard flanges, such as JB78-59, JB79-59, etc.
Valve body material
Carbon steel body: provides good mechanical strength and corrosion resistance.
Applicable fluid temperature
Operating temperature range: -20℃ to 200℃, suitable for most industrial environments
Application scenario
ZJHP series pneumatic thin-film single-seat regulating valves are especially suitable for workplaces that allow small leakage and small pressure difference between the front and back of the valve. Its precise flow characteristics and wide adjustable range make it ideal for controlling media such as gases and liquids, effectively maintaining the stability of process parameters
