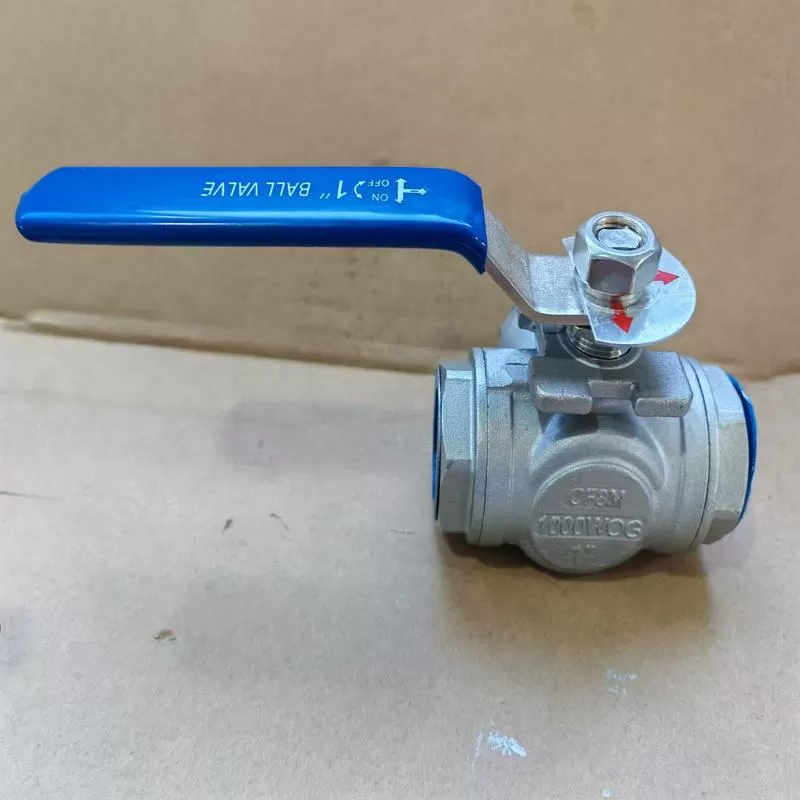

Three-way ball valve with internal thread

Q14F (Q15F) three-way ball valve with internal thread is a ball valve with pressure range of 1.0MPa-4.0MPa. When fully open or fully closed, the sealing surface of the ball and the seat is isolated from the medium, and the medium will not cause erosion of the valve sealing surface when it passes through. Wide range of application, small diameter to a few millimeters, large to a few meters, from high vacuum to high pressure can be applied. Three way ball valve has T type and L type. The T type can make the three orthogonal pipes interconnect with each other and cut off the third channel, which plays the role of shunt and confluence.

Three-way ball valve with internal thread is a new type of ball valve. It adopts conical sealing surface and movable sealing ring as sealing elements. It has compact structure, light weight, easy operation and good sealing performance. The internal thread three-way ball valve is suitable for the fluid control in the pipeline of petroleum, natural gas, chemical industry, metallurgy, electric power and other industries, and is widely used in the automatic control system of conveying oil, gas, water and steam and other media. The structure of the internal thread three-way ball valve is very simple, mainly by the ball, seat, stem, guide ring, bearing and other components

Packing of Standard Packing:

 Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 2022 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
