Product Code :

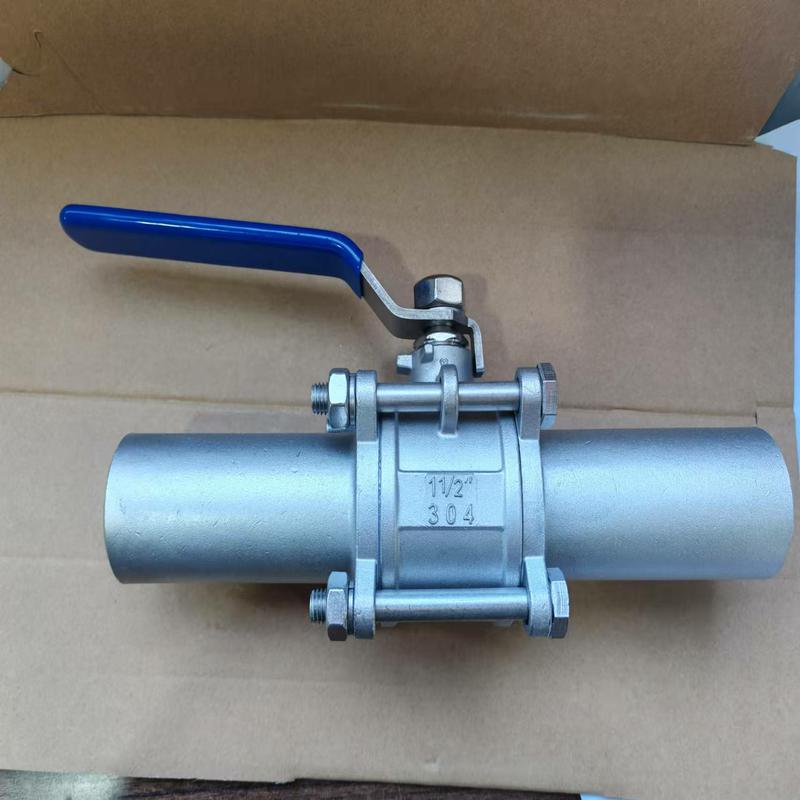

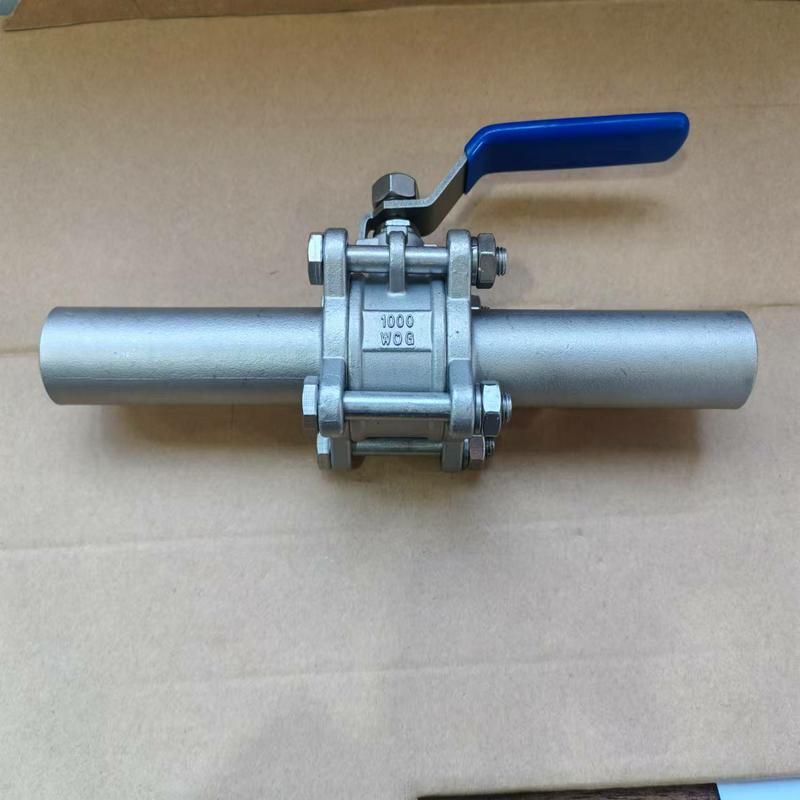

[Product name] : three-piece lengthened welded ball valve
Material: 304,316,316L, WCB
【 Specification 】 : 1/2 "-4"
[Pipe diameter] : Φ12.7-101.6mm
【 Path 】 : DN10-DN100
[Pipe thickness] : According to the standard thickness of sanitary pipe 1.5mm, 2mm
[Connection method] : With automatic welding
[Type] : three-piece ball valve
[Medium] : water, oil, steam
[Temperature] : ≤120 degrees
[Pressure] : ≤1.6Mpa
【 Sealing filler 】 : PTFE(polytetrafluoroethylene)
【 Drive mode 】 : manual; Electric, pneumatic, etc
[Connection method] : Welding
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
Three-piece lengthened welding ball valve structure features:
1. Three-piece lengthened welding ball valve has low fluid resistance. 2. Simple structure, relatively small size, light weight, easy maintenance.
3. The ball valve has good sealing performance. 4. It is not limited by the installation direction, and the flow direction of the medium can be arbitrary. 5. No vibration, low noise.
Q61F three-piece lengthened ball valve is suitable for air, steam, water, gas, petroleum and petrochemical products, corrosive media, etc., widely used in petroleum, chemical industry, metallurgy, light industry, paper making, power station, refrigeration and other fields of work
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 2022 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
