Product Code :
Three-piece flanged ball valve and gate valve are the same type of valve, the difference is that its closing part is a ball, the ball rotates around the center line of the valve body to achieve the opening and closing of a valve. Ball valves are mainly used to cut off, distribute and change the flow direction of the medium in the pipeline. Three-piece ball valve is a new type of valve widely used in recent years.
Body material: commonly used 201, 304, 316L, carbon steel. Support custom 2205, 2507, WCB, WC6, WC9, forged steel, A105, F11, F22, chromium molybdenum steel, low temperature steel, titanium alloy steel, etc
Three-piece flange ball valve product description:
Three-piece flanged ball valve is an integral part of internal thread ball valve and butt welded ball valve. The casting of three-piece flanged ball valve body adopts the new technology introduced from Taiwan, which has reasonable structure and beautiful shape. Three-piece flanged ball valve seat adopts elastic sealing structure, reliable sealing, easy opening and closing. The valve stem adopts the down-mounted structure with reverse seal, and the valve stem will not be rushed out when the valve chamber is abnormally pressurized. Butt weld (BW) socket weld (SW) is available, and both can be equipped with standard ISO support platform and locking device. Three-piece ball valve set 90° switch positioning mechanism, according to the need to lock to prevent misoperation, driving mode: manual, electric, pneumatic.
Application specification
Nominal pressure: 1.6-6.4MPa
Applicable temperature range: -20~232℃~350℃
Applicable media: water, oil, gas and some corrosive liquids (W, O, G)
Main use
Three-piece flanged ball valve is suitable for PN1.0 ~ 4.0MPa, working temperature -29 ~ 180℃(sealing ring for enhanced polytetrafluoroethylene) or -29 ~ 300℃(sealing ring for para polystyrene) of various pipelines, used to cut off or connect the medium in the pipeline. Choose different materials, can be applied to water, steam, oil, nitric acid, acetic acid and other media.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

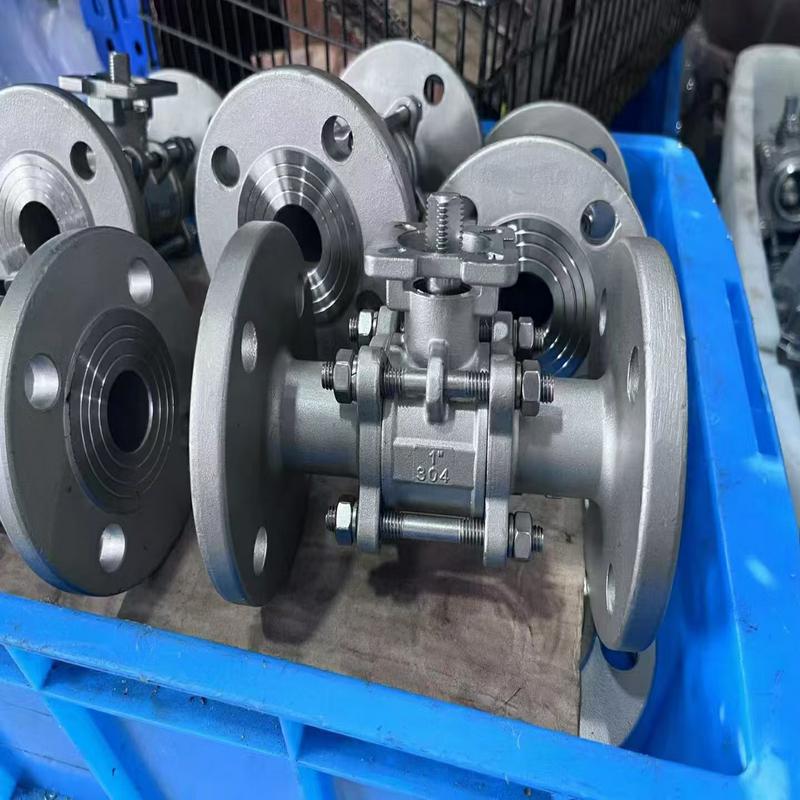

Three piece flange ball valve product overview
Compared with the two-piece flange ball valve, the three-piece flange ball valve has a middle valve body connection structure, and it is also the upgrade of the three-piece internal thread ball valve. The screw connection mode is upgraded to the flange connection mode, which facilitates the installation, disassembly and maintenance of the pipeline. The sealing form of the valve adopts polytetrafluoroethylene and parapolystyrene two sealing forms, suitable for use in the medium below 250 degrees, the body material has WCB, 304 stainless steel and other materials, according to different working conditions of the medium to choose the appropriate material.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 2022 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
