Product Code : VF--DDW-N390-CU

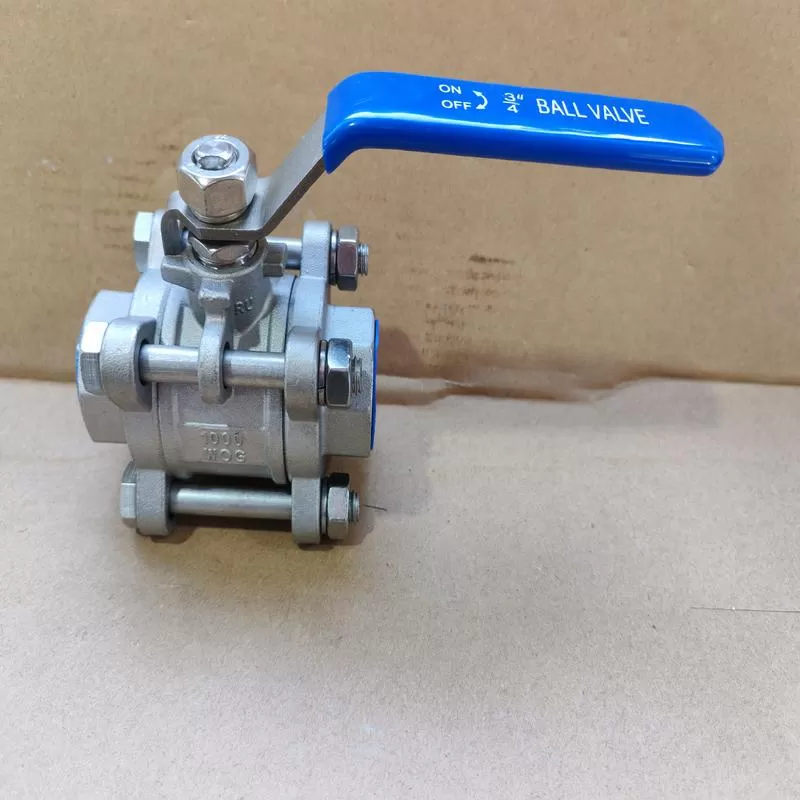

Q61F three-piece butt welding ball valve, also known as three-stage butt welding ball valve, is composed of three sections of the valve body, the middle with bolts locked. Usually make high pressure ball valve used. Used to cut off or connect the medium in the pipeline, the seat adopts elastic sealing structure, easy to open and close sealing reliable.
Size: 1/4""~150"" (DN8~DN150)
Pressure rating: ASME CLASS 150~300(PN10~PN64)
Main material: carbon steel, stainless steel, alloy steel and duplex steel, nickel-based alloy, etc
Connection form; Butt welding, socket welding; Screw thread
Operation mode: manual, pneumatic, electric and hydraulic, etc
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Three-piece butt welded ball valve is suitable for PN1.0 ~ 4.0MPa, working temperature -29 ~ 180 ° C (sealing ring for enhanced polytetrafluoroethylene) or -29 ~ 300 ° C (sealing ring for para polystyrene) of various pipelines, used to cut off or connect the medium in the pipeline. Choose different materials, can be applied to water, steam, oil, nitric acid, acetic acid and other media.
Q61F three-piece butt welding ball valve Product overview:
1. Nominal pressure: 1.6-6.4MPa
2. Applicable stable range: -20 ~ 232℃ ~ 350℃
3. Applicable media: water, oil, gas and some corrosive liquids (W. O. G)
4. Thread type: G. The NPT. BSPT. BSP. DI259/2999
Three piece butt welded ball valve to implement standard
1. Design and manufacture: GB12237-89, API608, API 6D, JPI 7S-48, BS5351, DIN3357.
2, flange size: JB/ T74-90 (JB74-90), GB9112-9131, HGJ44-76, SH3406, ANSI B16.5, JIS B2212-2214, NF E29-211, DIN2543.
3, structure length: GB12221-89, ANSI B16.10, JIS B2002, NF E29-305, DIN3202.
4. Main test: JB/T 9092, API 598.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 1401 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
