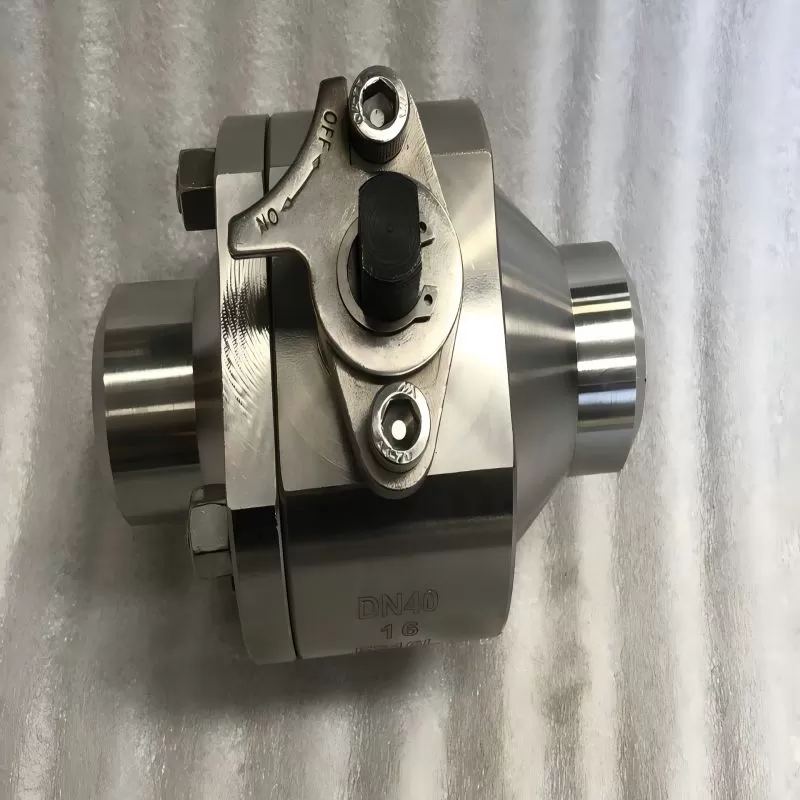

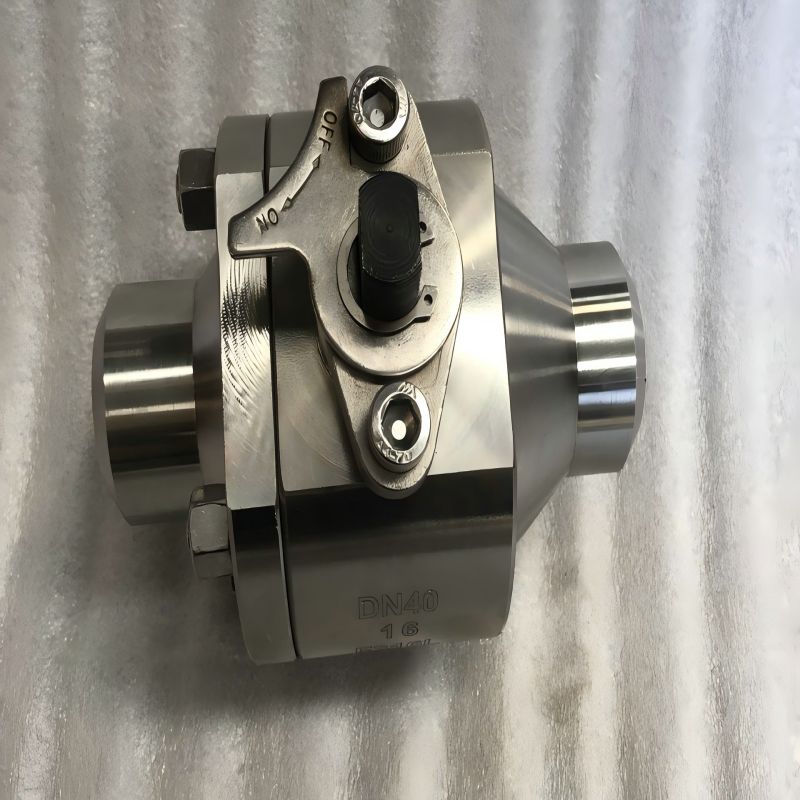

Stainless steel high-pressure ball valve Q41/Q11/Q61

Scope of application

Because the sealing form and sealing material of the traditional ball valve are fundamentally changed, and the high temperature and high pressure resistance of the valve is improved, the valve seat structure and shape are unique, and the sealing surface has uniform force, small deformation and high pressure capacity in the closed state. The bottom of the sealing ring is provided with stainless steel winding gasket, so that the bottom of the sealing ring is removed from the inner wall of the valve body, resulting in a certain space, when the ball core is pressed on the seat sealing ring, the sealing ring is deformed and elastic, and the pre-tightening and compensation are used, because the seat is elastic, reducing the wear and tear of the seat and the ball core and the operation is light, so that the valve can maintain good sealing performance under any conditions. Using high temperature resistant sealing material, the service temperature can exceed 600. C, with high temperature, high pressure, corrosion, wear and other characteristics. The corresponding ball core can be hardened in three ways according to the nature of the medium, and its surface hardness can reach HRC 70. Bubble seal, measured to zero leakage, the valve has excellent fire cutting performance. It can be used in pipelines with high temperature, high pressure, steam and rapid temperature changes, ultra-low temperature pipelines, catalysts of catalytic and cracking units, oil slurry systems and oil and gas pipelines of coke towers in coking units.

Stainless steel high pressure ball valve is suitable for various light and heavy industrial conditions and construction pipelines. Widely used in: chemical industry, liquefied petroleum gas, vehicle and ship manufacturing equipment, water, petroleum, beer, pharmaceutical, electric power, mechanical equipment valves, electronic industrial valves, urban construction valves, industrial pipeline valves, general parts, industrial equipment, fire HVAC, filtration equipment, environmental protection equipment and other fields.

Packing of Standard Packing:

 Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 2022 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
