Product Code : VF--DDW-N588-CU
The three-piece quick installation ball valve is used for all kinds of pipes with 1000PSI pressure to cut off or connect the medium in the pipeline. No bracket installation, can be directly connected with electric or pneumatic actuators, or can be mounted on the shaft handle, to achieve manual function. Spool O-type structure is suitable for cutting off occasions, and spool V-type structure is suitable for regulating flow size occasions. According to different media and media temperature, select the appropriate valve seat
Body material 304 stainless steel, 316；2205 stainless steel
Nominal diameter DN6~150mm
Nominal pressure 1000PSI
Seal form polytetrafluoroethylene PTFE seal (-40~+150℃), para-polystyrene PPL seal (-29-+280℃)
Applicable media water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea and other media
Driving form handle, worm gear, electric, pneumatic, hydraulic, etc
Industry applications used in medical equipment, solar energy, cleaning equipment, food machinery, burner, welding and cutting, fire safety, biopharmaceutical, machinery manufacturing and other industries
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |

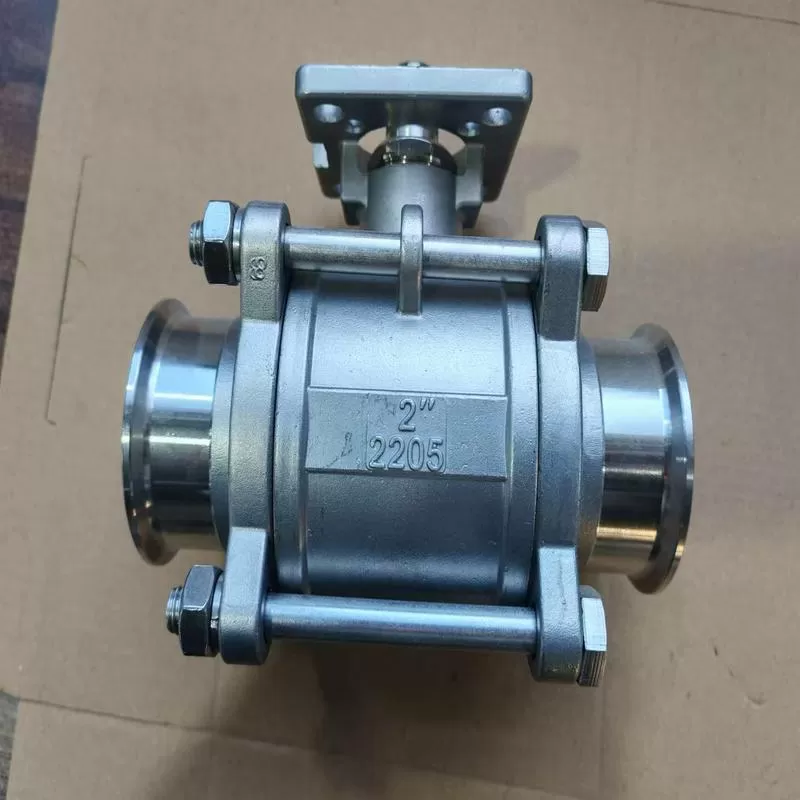

Three-piece quick installation ball valve adopts casting valve body, small size, large flow, compact structure, beautiful appearance, good sealing performance, high pressure resistance, easy disassembly and maintenance. There are many kinds of material selectivity, stainless steel 304, 2205.316 and other materials, suitable for oil, water, gas and other non-corrosive or corrosive media. Pneumatic ball valve can be matched according to the field requirements of the triplet, solenoid valve, handwheel, limit switch, positioner and other accessories
Application of three-piece quick installation ball valve;
The three-piece ball valve is mainly used for pipeline control, including opening flow, regulating flow and closing flow. It is widely used in petrochemical, electric power, metallurgy, paper making, medicine and other industries, especially in high-precision flow control applications.
Precision machining and mirror polishing processes to achieve bubble-level sealing and reduced operating torque; After solution cleaning, it is more suitable for high purity system applications.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 1599 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
