Product Code : VF--DDW-N587-CU

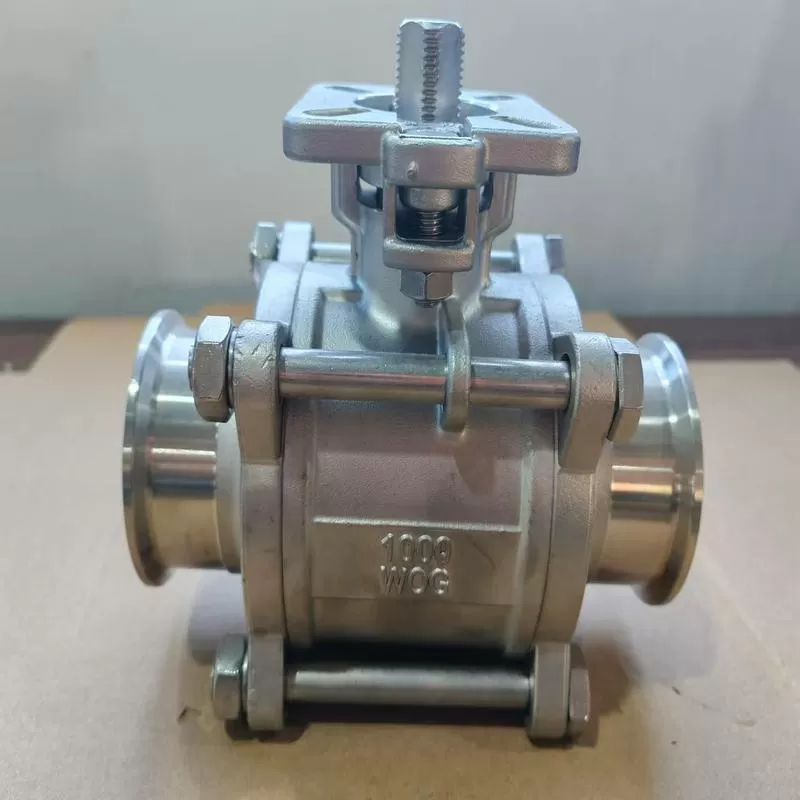

Three-piece quick assembly ball valve Product Introduction:
Three-piece quick ball valve, also known as three-piece clamp ball valve, is composed of three sections of the valve body, the middle with a bolt lock. Turn the ball 90 degrees to fully open or close the valve. Usually make high pressure ball valve use. Used for cutting off or connecting the medium in the pipeline, the valve seat adopts elastic sealing structure, easy and reliable sealing. Suitable for water, steam, oil, nitric acid, acetic acid and other media.
Size: 1/2""~6"" (DN15~DN150)
Pressure rating: ASME CLASS 150~300(PN16~PN64)
Main material: carbon steel, stainless steel, alloy steel and duplex steel, nickel-based alloy, etc
Connection form: card, etc
Operation mode: manual, pneumatic, electric and hydraulic, etc
suitable medium;Water, steam, oil, nitric acid, acetic acid, oxidizing medium, urea and other media
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Working principle of three-piece quick assembly ball valve:
It has the action of rotating 90 degrees, the cock body is a sphere, and there is a circular through hole or channel through its axis. The ball valve is mainly used to cut off, distribute and change the flow direction of the medium in the pipeline. It only needs to rotate 90 degrees and a small torque to close tightly.
Three-piece quick assembly ball valve product features:
1. The clamp connection is convenient for disassembly and assembly, and it is suitable for the working conditions that need to be cleaned frequently.
2, easy to install, can be installed in any direction in any part of the pipeline.
3. The channel in the valve body is smooth and smooth, which can transport viscous fluid, slurry and solid particles.
4, configurable pneumatic, electric and other driving mechanisms to achieve remote control and automatic operation.
5, because PTFE and other materials have good self-lubricity, friction loss with the ball is small, so the service life of the ball valve is long.
Used in medical equipment, solar energy, cleaning equipment, food machinery, burner, welding and cutting, fire safety, bio-pharmaceutical, machinery manufacturing and other industries
Three-piece quick-load ball valves are used to cut off or connect the media in lines up to 1000PSI pressure. Bracket free installation, can be directly connected with electric or pneumatic actuators, can also be installed on the shaft handle to achieve manual function. The valve core O-structure is suitable for cutting off occasions, and the valve core V-structure is suitable for adjusting the flow size. According to the different medium and the temperature of the medium, select the appropriate seat.
Actuator selection
Three-chip quick assembly ball valve through the bracket and coupling and electric actuator and pneumatic actuator connection, composed of electric three-chip quick assembly ball valve (switch type and regulation type control signal 4-20mA) and pneumatic three-chip quick assembly ball valve (switch type and regulation type control signal 4-20mA
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 1598 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
