Product description
Model number; Q941F, Q941Y

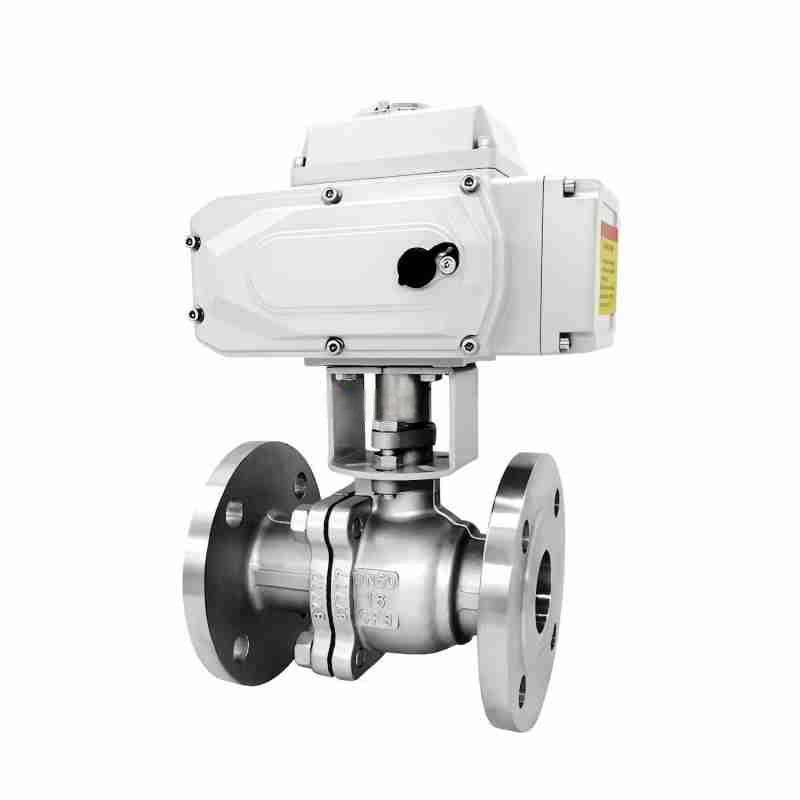

Electric ball valve: electric drive, flange connection form, floating ball straight through type,
Sealing surface material of the valve seat is fluorine plastic (Q941F), hard alloy (Q941Y),
Nominal pressure PN16~PN63,
Nominal size DN15~DN300,
Applicable temperature is -29~450℃,
Applicable medium water, gas, oil containing particles, nitric acid medium
Body material: commonly used 201, 304, 316L, carbon steel. Support custom 2205, 2507, WCB, WC6, WC9, forged steel, A105, F11, F22, chromium molybdenum steel, low temperature steel, titanium alloy steel, etc.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
Q941F, Q941Y type PN16~PN63 electric ball valve is suitable for the occasion of two-position cutting and adjustment. The connection between the valve and the actuator adopts a direct connection mode, which is composed of UNIC, PSQ, HQ, DHL and other electric actuators (other types of electronic electric actuators can also be configured according to user requirements) and ultra-short ball valves. Electric actuator built-in servo system, no additional servo amplifier, input 4-20mA signal and 220V AC power supply can control the operation. Compared with the ordinary electric ball valve, it has the characteristics of compact structure, small size, light weight, close distance between the valve seat and the end flange, less material retention, and superior sealing performance.
Q941F, Q941Y type PN16~PN63 electric ball valve is suitable for the occasion of two-position cutting and adjustment. The connection between the valve and the actuator adopts a direct connection mode, which is composed of UNIC, PSQ, HQ, DHL and other electric actuators (other types of electronic electric actuators can also be configured according to user requirements) and ultra-short ball valves. Electric actuator built-in servo system, no additional servo amplifier, input 4-20mA signal and 220V AC power supply can control the operation
