Product Code :
Body form three-way cast ball valve
Nominal diameter DN15 ~ 200mm
Nominal pressure national standard PN1.6, 2.5, 4.0, 6.4 MPa; American standard ANSI 150, 300LB; JIS 10, 20, 30K
Flange standard JIS, ANSI, GB, JB, HG, etc
Connection type flange type, thread type (for 1/2" ~ 2")
Valve cover form integral
Gland type clamping plate type
V-type PTFE packing, impregnated PTFE packing, asbestos braided packing, flexible graphite
Valve internals
Spool form O-shaped ball spool
Flow feature Fast opening feature
Executive mechanism
Actuator type GT, SR, ST, AT, AW series single and double acting pneumatic actuators
Gas supply pressure 0.4 ~ 0.7MPa
Air source interface G1/4", G1/8", G3/8", G1/2"
Ambient temperature -20 ~ +90℃
Single-action actuator: gas-close type (B)- valve position open (FO) when gas is lost; Air open (K)- Valve position closed when air is lost (FC)
Double acting actuator: gas close type (B)- valve position holding (FL) when air is lost; Air open (K)- Valve position hold (FL) when air is lost
It can be equipped with accessories positioner, solenoid valve, air filter pressure reducer, holding valve, stroke switch, valve position transmitter, handwheel mechanism, etc
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

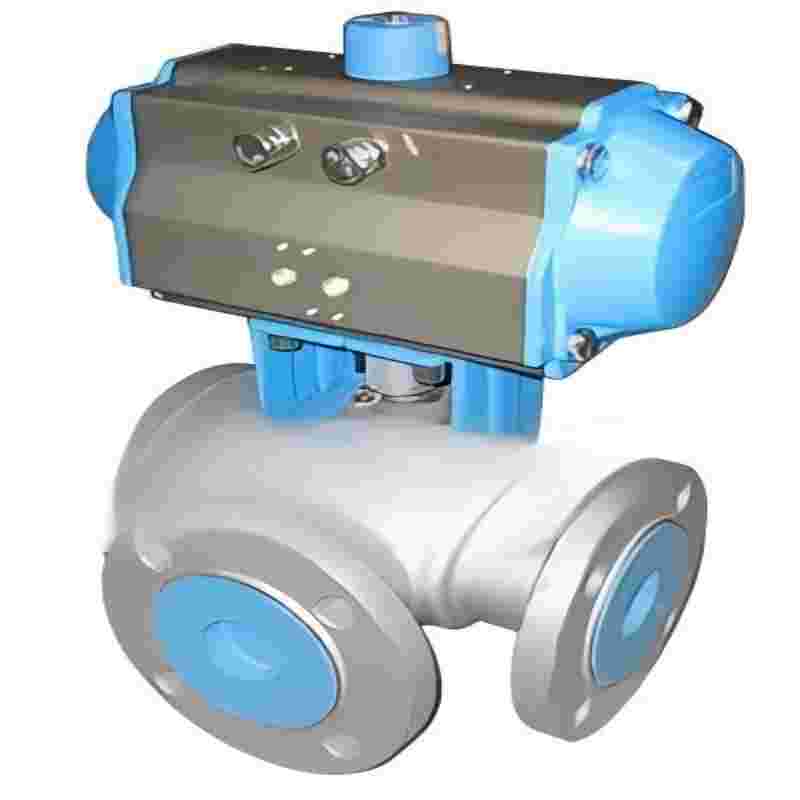

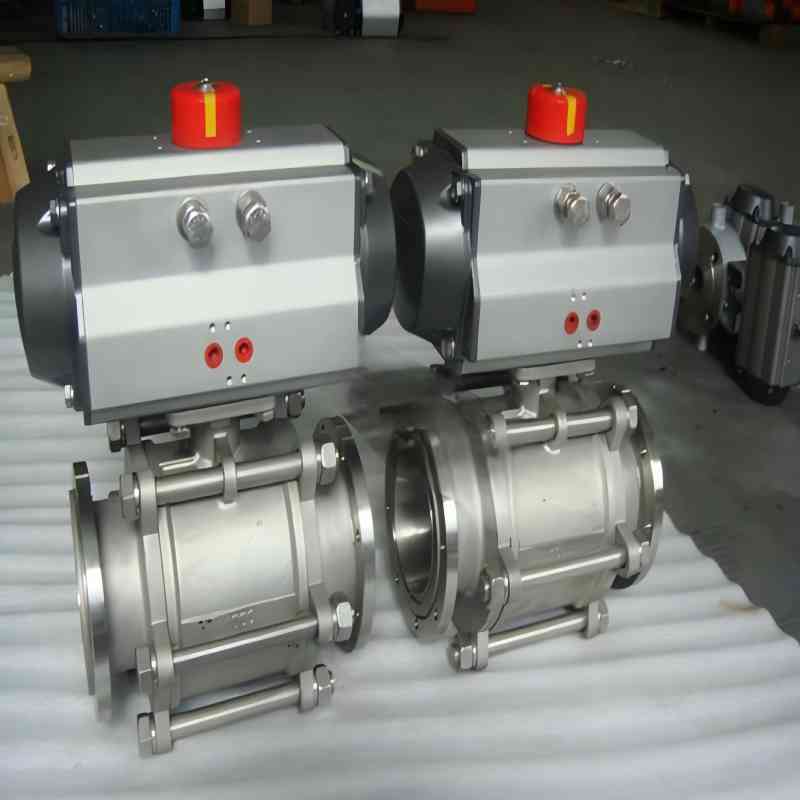

Use and characteristics of pneumatic three-way ball valve
1, compact structure, fast opening and closing, smooth flow path, low fluid resistance.
2, good sealing performance: the use of four-sided seat material polytetrafluoroethylene elastic deformation to achieve leak-free sealing.
3, a multi-purpose valve: any port can be used as an entrance without leakage, three can be made into L-shaped port, can also be made into T-shaped port.
4, easy maintenance: After the system pressure relief, without removing the entire valve body can be inspected and repaired.
5, widely used in water supply, petrochemical, metallurgy, mining, textile, energy, paper, food, steel and other pipeline systems to switch the flow of the medium and the diversion of the medium or mixed fluid.
Two, pneumatic three-way ball valve medium flow principle
The pneumatic three-way ball valve is divided into L-type and T-type, and the flow direction of the medium is shown in the figure below. L-type three-way ball valve is suitable for switching the flow direction of the medium, which can make the two vertical channels connected: T-type three-way ball valve is suitable for the diversion, confluence or flow direction switch of the medium, T-type hole can make three channels connected or two of the channels connected, three-way ball valve generally uses two seat structure, can also use four seat structure according to user requirements.
Three, pneumatic three-way ball valve implementation standards
I Design and manufacture: GB/T12237-1989; APl608.
2. Inspection and test: GB/T13927-1992; APl 598.
3 flange connection: JB/T79] 1-2-1994; ASME/ANSI B165.
4 Structure length: JD-2002
