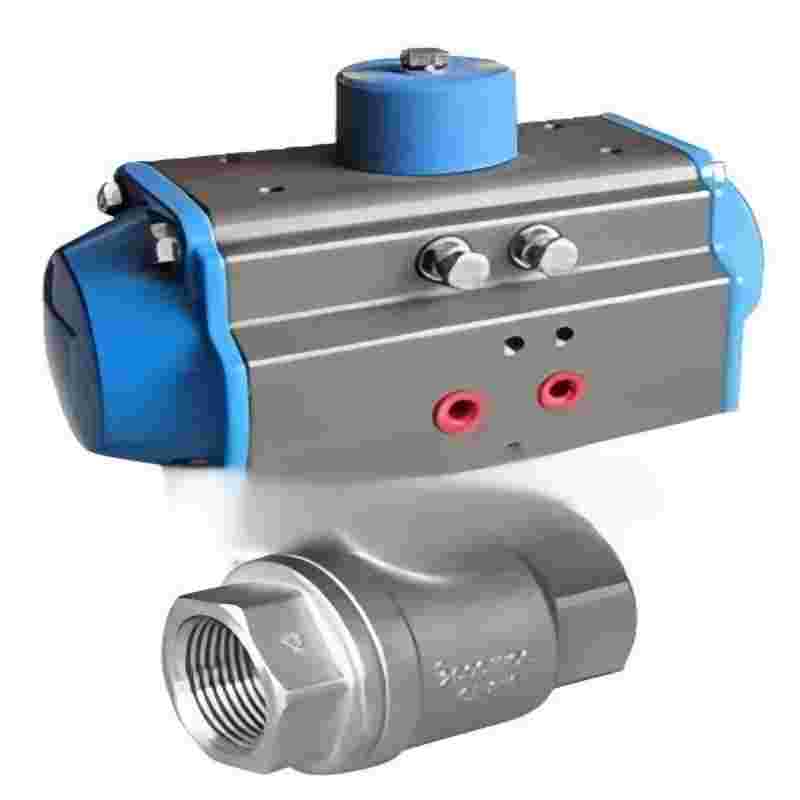

Q611 pneumatic two-piece ball valve with internal thread

Q611 pneumatic two-piece ball valve is a ball valve, the valve body casting using the advanced technology introduced in Taiwan, reasonable structure, beautiful shape. Ball valves with internal thread connection and butt welded connection are divided into integral (one-piece), two-stage and three-stage. The seat adopts elastic sealing structure, reliable sealing, easy opening and closing. The valve stem adopts the down-mounted structure with reverse seal, and the valve stem will not be rushed out when the valve chamber is abnormally pressurized. Two piece, three piece ball valve connection forms have butt welding (BW) socket welding (SW), and can be equipped with international standard ISO support platform and locking device

Product Introduction 】 :

Q611F pneumatic two-piece internal thread ball valve body is made of: 304, 316 or 316L stainless steel silica sol precision casting two-piece valve body locked, with AT/GT series pneumatic actuators, can achieve automation or remote control, there are double acting and single acting (spring return), the use of rack and pinion structure transmission, large diameter valve using AW series pneumatic actuators, fork structure transmission, reasonable structure, High output torque.

【 Working principle 】 :

Q611F pneumatic two-piece internal screw ball valve is the use of compressed air as a power, after the input pressure in the cylinder, the action on the piston to produce a certain thrust, so that the gear output is driven by the piston, so that the gear output shaft is rotated, driving the valve shaft to rotate, so that the ball valve ball in the valve with rotation, And with the help of electrical valve positioner, converter, solenoid valve, holding valve and other accessories to drive the valve, to achieve switching or proportional adjustment.

【 Product Features 】 :

1, silica sol precision casting, shell shape beautiful.

2, easy to install, can be installed in any direction in any part of the pipeline.

3. The channel in the valve body is smooth and smooth, which can transport viscous fluid, slurry and solid particles.

4, because polytetrafluoroethylene and other materials have self-lubrication, friction loss with the ball is small, so the service life of the ball valve is long.
