Product Code :
Model number; Q41F46-10/Q41F46-16/Q41F46-10C/Q41F46-16C
Working pressure (MPa); 1.0/1.6 /
Applicable temperature (℃); -10 to 150/-20 to 150
Applicable media; Corrosive medium
Materials. Valve body. Cast iron lined with PTFE. Cast steel inside. Teflon
A sphere; Cast steel coated with teflon
Sealing ring; Reinforced polytetrafluoroethylene; Polytetrafluoroethylene
Stuffing; Polytetrafluoroethylene
Body material: commonly used 201, 304, 316L, carbon steel. Support custom 2205, 2507, WCB, WC6, WC9, forged steel, A105, F11, F22, chromium molybdenum steel, low temperature steel, titanium alloy steel, etc.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
【 Product Features 】
1, the ball valve with FEP lining layer has very high chemical stability, and can be applied to any other strong corrosion properties in addition to "molten alkali metal and elemental fluorine"
2, the use of full diameter, floating ball structure, the valve can be closed in the entire pressure range without leakage, more convenient for the pipeline system through the ball sweeping line and pipeline maintenance
3, the opening and closing parts and the valve stem casting (forging) as one, eliminate the possibility of the valve stem out of the bearing part due to pressure changes, fundamentally ensure the use of safety in the project
4, the structure is compact and reasonable, the body cavity space is small, reduce the medium retention, in addition, the special molding process, so that the sealing surface density is good, coupled with the herringbone PTFE packing combination, so that the valve to achieve zero leakage

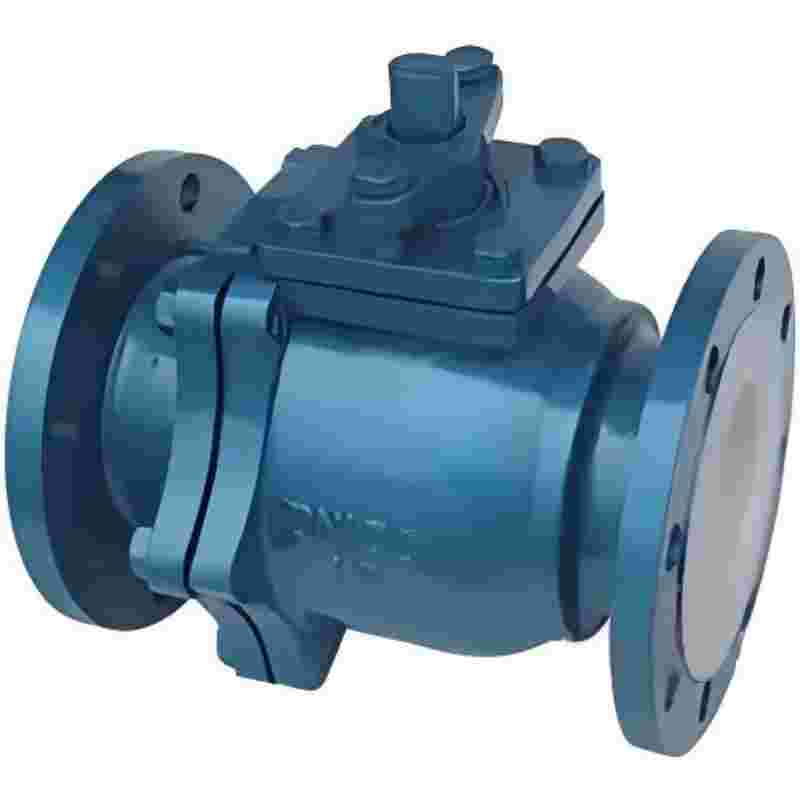

Q41F46 type fluorine lined ball valve inner cavity and ball are lined with corrosion resistance and aging resistance polyperfluorinated ethylene propylene (F46) by high pressure injection molding process, so it has reliable corrosion resistance and sealing. Widely used in chemical, petroleum, metallurgy, medicine and other industrial sectors, to achieve the production process of acid, alkali and other strong corrosive media regulation or cut off, in the water treatment process control effect is obvious.
