Product Code :

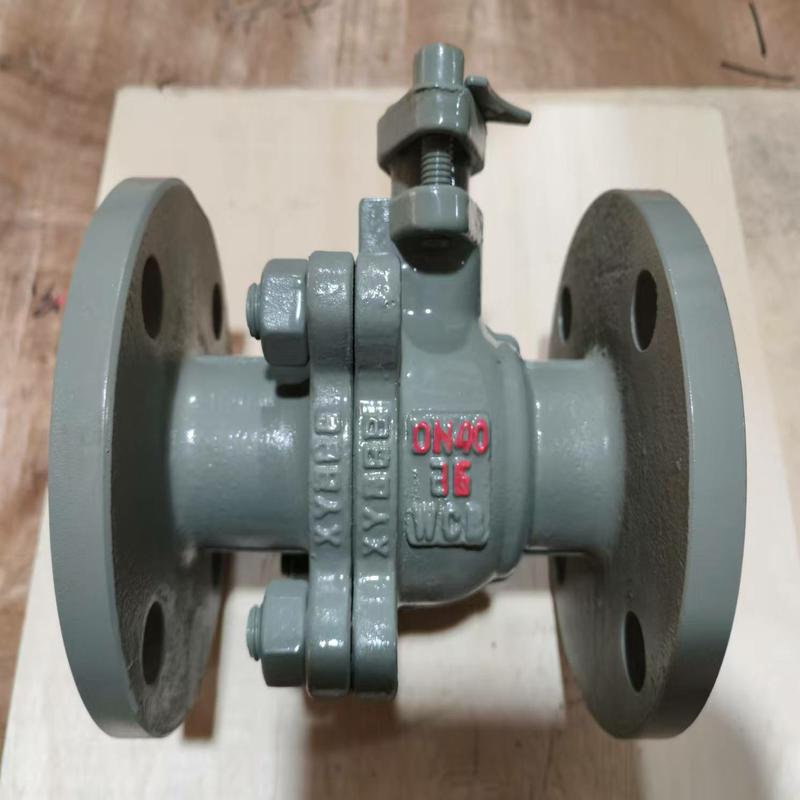

41 Ball valve is a rotary valve with a Angle of 0-90°, excellent sealing performance, large flow coefficient, small flow resistance coefficient, simple structure, long service life and easy maintenance
Model number; Q41F-16C/Q41F-25C/Q41F-16P/Q41F-25P
Working pressure (MPa); 1.6 ~ 2.5
Applicable temperature (℃); 180 or less
Applicable media; Water, steam, oil, weakly corrosive media
Materials; Valve body, valve cover; Carbon steel. Cast steel. Chromium-nickel stainless steel.
Ball, valve stem; Chromium/chromium nickel/chromium nickel molybdenum stainless steel/chromium nickel stainless steel
Sealing ring; Flexible graphite washer /316+ flexible graphite washer
Stuffing; Polytetrafluoroethylene
Body material: commonly used 201, 304, 316L, carbon steel. Support custom 2205, 2507, WCB, WC6, WC9, forged steel, A105, F11, F22, chromium molybdenum steel, low temperature steel, titanium alloy steel, etc.
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
【 Product Features 】
1, in a variety of valves, the flow resistance of the ball valve is small, the full-diameter ball valve is opened, the ball channel, the valve body channel and the connecting pipe diameter are equal and form a diameter, and the medium can flow almost without loss.
2, ball valve rotation 90° can be fully closed and fully opened, open and close quickly. Compared with gate valves and globe valves of the same specifications, ball valves are small in size, light in weight, and easy to install pipelines.
Q41F type PN16~PN63 floating soft seal ball valve is used in various pipelines of Class150~Class1500, PN16~PN63, JIS10K~JIS20K, used to cut off or connect the medium in the pipeline, choose different materials, Can be applied to water, steam, oil, liquefied gas, natural gas, gas, nitric acid, acetic acid, oxidizing medium, urea and other media.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 2022 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
