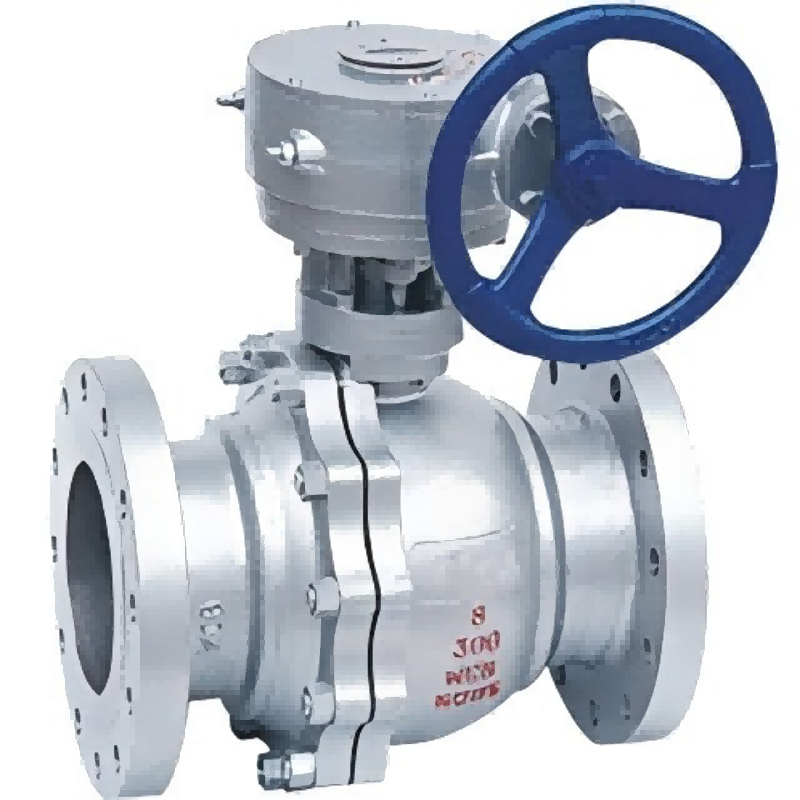

Q341F, Q341Y type PN16~PN40 worm drive ball valve

The main performance parameters of Q341F/Q341Y worm drive ball valve are as follows:

Model: Q341F, Q341Y

PN Range: PN16 to PN40

Working pressure: Q341F-16C: 1.6MPa, Q341F-25:2.5 mpa, Q341F-40:4.0 mpa, Q341Y-16C: 1.6MPa, Q341Y-25:2.5 mpa, Q341Y-40:4.0 mpa

Applicable temperature: Q341F-16C, Q341Y-16C: 1.6≤180℃, Q341F-25, Q341Y-25: unlimited, Q341F-40, Q341Y-40:4.0 ℃

Applicable media: Q341F-16C, Q341F-25, Q341F-40: water, gas, oil, Q341Y-16C, Q341Y-25, Q341Y-40: water, gas, oil containing granular media

Special Model:

Q341F-16P, Q341F-25P, Q341F-40P, Q341Y-16P, Q341Y-25P, Q341Y-40P: Applicable medium is nitric acid, applicable temperature: Q341Y-16P, Q341Y-25P, Q341Y-40P: 1.6≤450℃

Q341F-16R, Q341F-25R, Q341F-40R, Q341Y-16R, Q341Y-25R, Q341Y-40R: Applicable medium is nitric acid, applicable temperature: Q341Y-16R, Q341Y-25R, Q341Y-40R: 1.6≤450℃, applicable medium: Water, gas, oil containing granular media

Q341F, Q341Y worm drive ball valves are high performance valves, suitable for various pressure levels of piping systems. This valve uses worm drive technology to ensure light and durable operation. Flange connection design, easy to install and disassemble, suitable for a variety of pipe systems.

The floating ball straight-through structure is the unique design of Q341F and Q341Y valves, which makes the medium flow path unimpeded, reduce pressure loss and improve work efficiency. Valve seat sealing surface selection of PTFE, reinforced PTFE plastic (Q341F) or metal surfacing cobalt base (Q341Y), to ensure that in different working conditions can achieve reliable sealing performance, to meet the needs of different industries.

The nominal pressure range is PN16 to PN40, covering a wide range of industrial applications. Valve body material selection WCB, CF8, CF8M and other high-quality materials, to ensure the valve corrosion resistance and stability, extend the service life. These materials maintain excellent performance under high temperature and pressure environments, ensuring a safe and reliable system.

Q341F, Q341Y worm drive ball valve in the design of the full consideration of user needs, not only has a good sealing performance and pressure resistance, but also has the advantages of easy operation, easy maintenance. Suitable for petrochemical, water treatment, power, food, pharmaceutical and other industries, it is an indispensable valve in modern industrial pipeline systems.
