Product Code : VF--DDW-N61-CU
Basic information

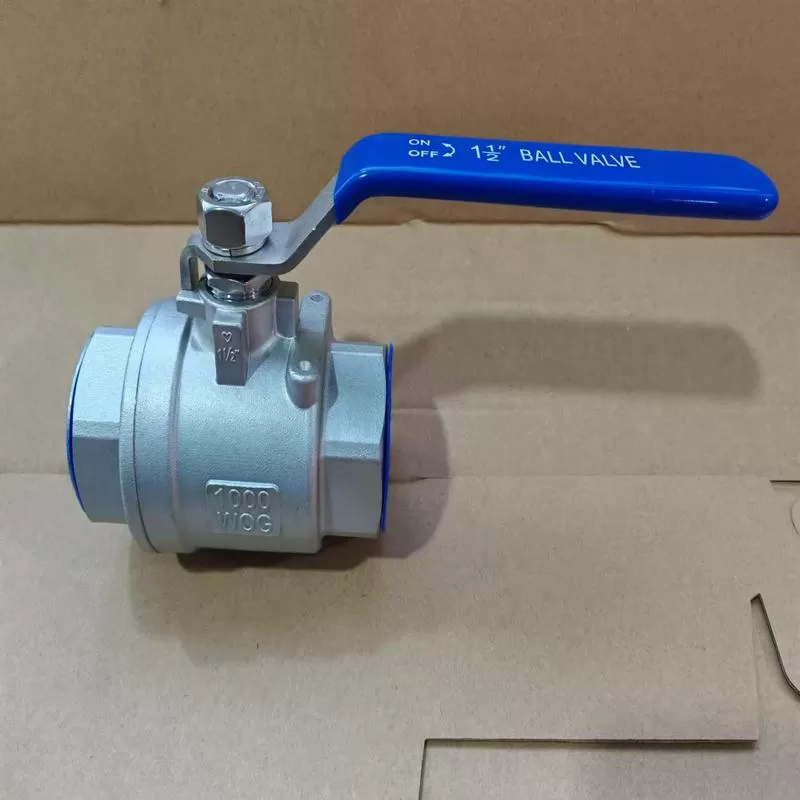

304 stainless steel two-piece ball valve is a valve widely used in the industrial field, its main feature is the use of stainless steel material, with good corrosion resistance and durability. The ball valve is designed to operate stably in a variety of environments to meet the needs of a wide range of industrial applications
Specification Model :1/4"-4"
Nominal pressure: 1.6-6.4MPa
Applicable temperature range: -20 ~ 232℃ ~ 350℃
Applicable media: water, oil, gas and some corrosive liquids (W.O.G)
Material :CF8, CF8M, CF3M, 1.4308, 1.4408, WCB, etc
Application conditions: Mainly used in petroleum, chemical, food, medicine, railway, water treatment, steel, metallurgy and other industries.
Connection mode; Manual; Electric; Pneumatic dispatching
Locking structure: In order to prevent the valve from misoperation, the locking device can be added
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Basic information
304 stainless steel two-piece ball valve is a valve widely used in the industrial field, its main feature is the use of stainless steel material, with good corrosion resistance and durability. The ball valve is designed to operate stably in a variety of environments to meet the needs of a wide range of industrial applications
1. Nominal pressure and operating temperature
The nominal pressure of the two-piece ball valve is usually between 1.6MPa and 6.4MPa, and the operating temperature range can be from -20 ° C to 232 ° C, or even higher, such as 350 ° C 126.
2. Applicable media
The valves are suitable for use in a variety of media, including water, oil, gas, and certain corrosive liquids.
3. Thread type
The thread types of two-piece ball valves are various, including G, NPT, BSPT, BSP, DIN259/2999 and so on.
4. Structural characteristics
The structure of the two-piece ball valve is characterized by no friction on the switch, the seal is not easy to wear, and the opening and closing torque is small, which helps to reduce the specifications of the equipped actuator .
Step 5: Material
The body and ball are usually made of cast steel or stainless steel, and the seals may be made of reinforced polytetrafluoroethylene or para polystyrene.
6. Manufacturing standards
The manufacturing standard of two-piece ball valve includes GB, German standard and so on
Q11F two-piece ball valve is suitable for PN1.0 ~ 6.4MPa, working temperature -29 ~ 180 ° C (sealing ring for enhanced polytetrafluoroethylene) or -29 ~ 300 ° C (sealing ring for para polystyrene) of various pipelines, used to cut off or connect the medium in the pipeline. Choose different materials, can be applied to water, steam, oil, nitric acid, acetic acid and other media.Two-piece ball valve with its simple structure, easy operation, reliable sealing, long service life and other advantages, widely used in petroleum, chemical, electric power, metallurgy, pharmaceutical, food and other fields. Its application in different fields shows its wide applicability and reliability.
