Product Code : VF--DDW-N66-CU

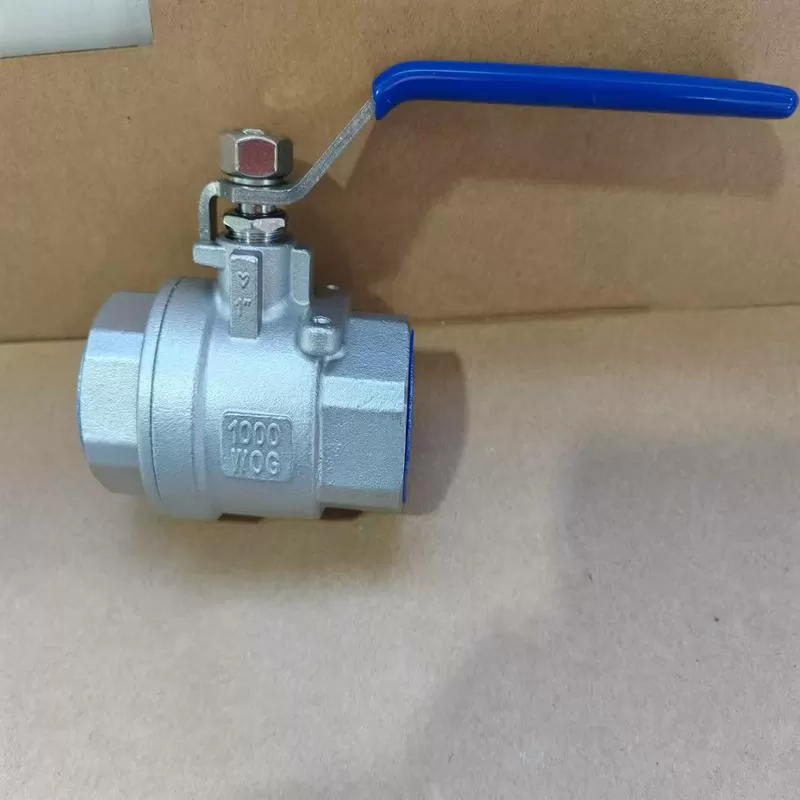

304 two-piece ball valve is a new type of valve, with small fluid resistance, simple structure, easy operation, easy maintenance, wide range of application and other advantages.
Technical parameter
Nominal pressure PN1.6,2.5,4.0,6.4MPa
Body material WCB, CF8, CF8M.2205.2507.etc
Pressure test capacity PT2.4,3.8,6.0,9.6MPa
Applicable medium
Q11F-(16-64)C Water, oil, gas
Low pressure seal pressure test capacity 0.6MPa
Q11F-(16-64)P nitric acids
Applicable temperature -40℃ ~ 180℃
Q11F-(16-64)R acetic acids
Driving mode: manual, electric, pneumatic, etc
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Product features:
· Stainless steel material, selected high-quality 304/316 stainless steel manufacturing, not easy to rust, corrosion resistance
· Thickened valve body, better compression performance, high reliability, more durable, safe
· Comfortable handle, simple structure, small size, smooth rotation of the handle, not easy to fall off, easy to use
Application:
· Widely used in petrochemical industry, environmental protection industry, water supply and drainage industry, mining industry, pharmaceutical industry, paper industry, etc
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 1077 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
