Product Code : VF--DDW-N71-CU

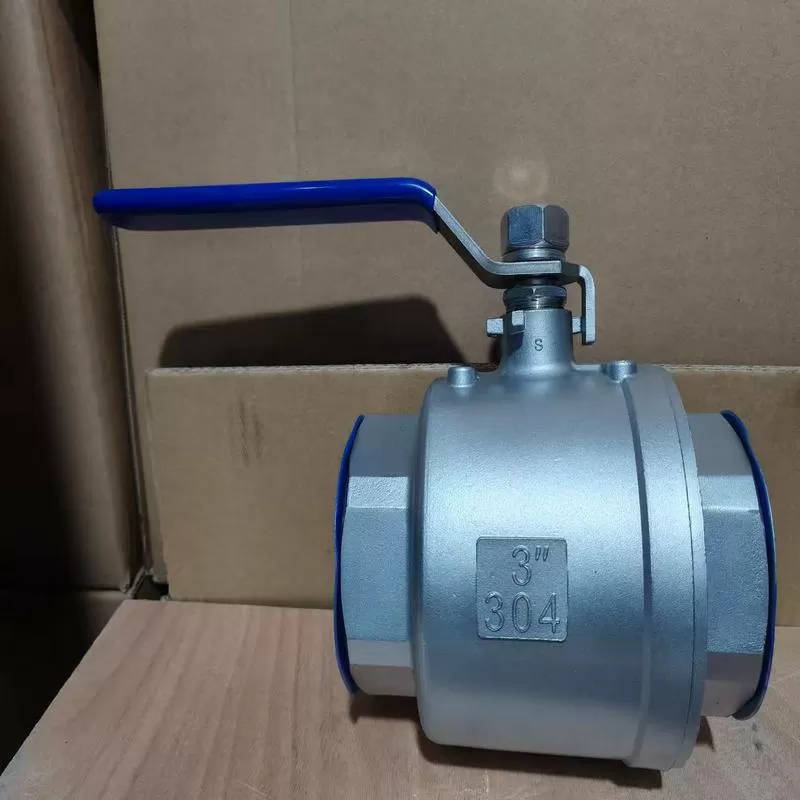

The working principle of the 304 two-piece ball valve is to make the valve open or blocked by rotating the valve. Ball valve switch light, small size, can be made into a large caliber, reliable sealing, simple structure, easy maintenance, sealing surface and sphere are often in a closed state, not easy to be washed by the medium, in various industries have been widely used
Size: DN6-DN100 [1/4 "-4"]
Pressure range: PN16≈PN25
Operating temperature: -20℃≈250℃
Body material: stainless steel
Sealing material: Polytetrafluoroethylene PTFE reinforced polytetrafluoroethylene PPL.
Ball core material: solid core stainless steel ball.
Valve stem material: stainless steel.
Filler: graphite, reinforced polypropylene.
Body appearance: stainless steel: color [effective rust prevention]
In addition to manual transmission, electric and pneumatic actuators can also be selected
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
304 two-piece ball valve is mainly used to cut off, distribute and change the flow direction of the medium in the pipeline. Ball valve is currently widely used as a new type of valve, it has the following advantages:
one The fluid resistance is small, and its resistance coefficient is equal to that of the pipe segment of the same length.
2. Simple structure, small size, light weight.
3. Tight and reliable, the sealing surface material of the current ball valve is widely used in plastic, good sealing, and has also been widely used in vacuum systems.
4. Easy to operate, open and close quickly, from full open to full close as long as the rotation of 90 degrees, easy to remote control.
5. Easy maintenance, ball valve structure is simple, the sealing ring is generally active, disassembly and replacement are more convenient.
6. When fully open or fully closed, the sealing surface of the ball and the seat is isolated from the medium, and the medium will not cause erosion of the valve sealing surface when it passes through.
7. Wide range of application, small diameter to a few millimeters, large to a few meters, from high vacuum to high pressure can be applied. When the ball is rotated 90 degrees, the inlet and outlet should all be spherical, thus cutting off the flow. 304 two-piece ball valve is mainly used to cut off, distribute and change the flow direction of the medium in the pipeline. Ball valve is currently widely used as a new type of valve, it has the following advantages:
one The fluid resistance is small, and its resistance coefficient is equal to that of the pipe segment of the same length.
2. Simple structure, small size, light weight.
3. Tight and reliable, the sealing surface material of the current ball valve is widely used in plastic, good sealing, and has also been widely used in vacuum systems.
4. Easy to operate, open and close quickly, from full open to full close as long as the rotation of 90 degrees, easy to remote control.
5. Easy maintenance, ball valve structure is simple, the sealing ring is generally active, disassembly and replacement are more convenient.
6. When fully open or fully closed, the sealing surface of the ball and the seat is isolated from the medium, and the medium will not cause erosion of the valve sealing surface when it passes through.
7. Wide range of application, small diameter to a few millimeters, large to a few meters, from high vacuum to high pressure can be applied. When the ball is rotated 90 degrees, the inlet and outlet should all be spherical, thus cutting off the flow.
Q11F two-piece ball valve is a relatively new type of ball valve category, it has its own structure has some unique advantages, such as no friction switch, seal is not easy to wear, small opening and closing torque. This reduces the size of the configured actuator. With a multi-turn electric actuator, the medium can be adjusted and tightly cut off. It is widely used in petroleum, chemical industry, urban water supply and drainage and other conditions requiring strict cut-off
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 1082 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
