Product Code : VF--DDW-N57-CU

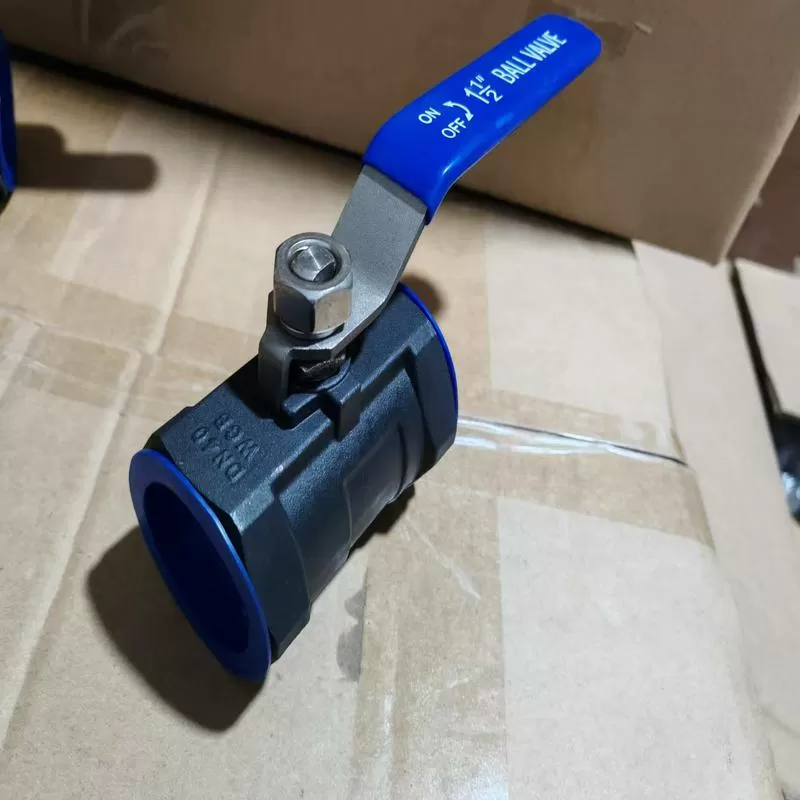

WCB one-piece ball valve is a ball valve made of WCB material.Because the stem filling silo is shallow, the sealing filler is less, so it is more used for low pressure pipelines.
Encyclopedia name: Imported one-piece ball valve
Enyclopedia model :Q11F
Nominal diameter :DN6 ~ DN100
Structure form: spherical
Nominal pressure :1.6Mpa ~ 6.4Mpa (W.O.G)
Connection mode: internal thread
Applicable temperature :-20 ~ 232℃ ~ 350℃
Driving mode: manual, pneumatic, electric
Body material: 304 (CF8), 316 (CF8M).WCB
Manufacturing standards: GB, DIN, API, ANSI
Applicable media: water, oil, gas and some corrosive liquids
Widely used: petroleum, chemical industry, electric power, environmental protection, water conservancy, heating, water supply and drainage, industry, machinery
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
Working principle
The working principle of one-piece ball valve is relatively simple. When the ball is rotated 90 degrees, the inlet and outlet of the valve are either completely connected or completely cut off. This fast switching feature makes the ball valve ideal for applications requiring frequent operation. At the same time, due to its good sealing performance, it can also effectively prevent fluid leakage.
Structural characteristics
1. The valve body is made of stainless steel, with good corrosion resistance and compressive strength, to ensure that the valve can also run stably for a long time in harsh environments.
2. The ball surface is specially treated, the friction coefficient is small, the rotation is flexible, and the operating torque is effectively reduced.
3. Compact structure design makes the installation space greatly reduced, easy to use in a small space.
Application field
Stainless steel one-piece ball valve is widely used in petroleum, chemical, water treatment, power and other industries. Especially in the need to quickly cut off or adjust the fluid flow, such as emergency shutdown systems, automatic control systems, etc., the advantages of ball valves are more obvious.
Packing of Standard Packing:
Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 1068 gallon liquid totes Special package is available on request. E FORUs’ is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
