Product Code : VF--DDW-N40-CU

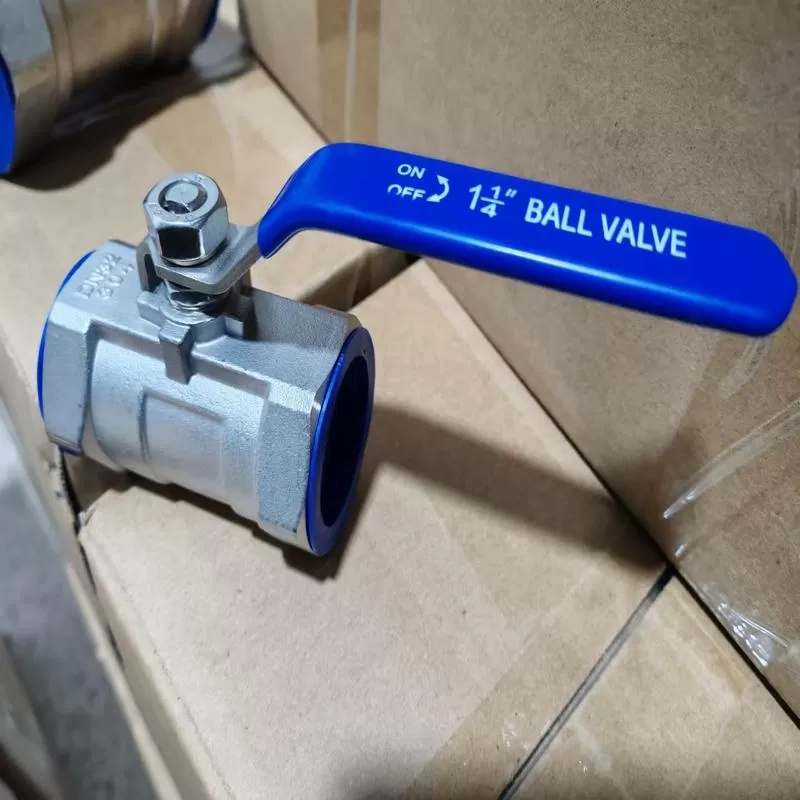

1 piece stainless steel ball valve, mainly used to cut off or connect the medium in the pipeline, can also be used for fluid regulation and control, especially suitable for containing fiber, small solid particles and other media. The multi-pass ball valve can not only flexibly control the confluence, shunt, and flow direction of the medium on the pipeline, but also can close any channel and make the other two channels connected
Product name: Stainless steel ball valve
Engineering diameter: 1/4 "~4" (DN6~DN100)
Engineering pressure: 1.6~6.4MPa
Main material: 304 (CF8), 316 (CF8M).WCB
1PC Q11F (one-piece ball valve) is a ball valve
Specifications from 1/4 "-4" and DN6-DN100
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
| Product | Product Code | Purity | Size | Contact Us |
One-piece ball valve is a relatively new type of ball valve category, which has some unique advantages of its own structure, such as no friction on the switch, sealing is not easy to wear, and the opening and closing torque is small. This reduces the size of the configured actuator. With a multi-turn electric actuator, the medium can be adjusted and tightly cut off. Widely used in petroleum, chemical city water supply and drainage requirements of strict cut-off conditions.
one The fluid resistance is small, and its resistance coefficient is equal to that of the pipe segment of the same length.
2. Simple structure, small size, light weight.
3. Tight and reliable, the sealing surface material of the ball valve is widely used in plastic, good sealing, and has also been widely used in vacuum systems.
4. Easy to operate, open and close quickly, from full open to full close as long as the rotation of 90 degrees, easy to remote control.
5. Easy maintenance, ball valve structure is simple, the sealing ring is generally active, disassembly and replacement are more convenient.
6. When fully open or fully closed, the sealing surface of the ball and the seat is isolated from the medium, and the medium will not cause erosion of the valve sealing surface when it passes through.
7. Wide range of application, small diameter to a few millimeters, large to a few meters, from high vacuum to high pressure can be applied. When the ball is rotated 90 degrees, the inlet and outlet should all be spherical, thus cutting off the flow.
One-piece ball valve is suitable for air, steam, water, gas, petroleum and petrochemical products, corrosive media, etc., widely used in petroleum, chemical industry, metallurgy, light industry, paper making, power station, refrigeration and other fields of work. One-piece ball valve products with compact structure, beautiful appearance, intelligent control, excellent performance, good quality, easy to use and many other characteristics. The one-piece ball valve is a rotary ball valve with a manual operation Angle of 90°. It has excellent sealing performance, large flow capacity, small flow resistance coefficient, simple structure, simple maintenance and long service life. One-piece ball valves are usually used in situations with strict sealing requirements, in addition to controlling gas, liquid, steam media, but also suitable for controlling sewage and media containing fibrous impurities
