Pneumatic internal thread three-way ball valve is divided into "L-type pneumatic internal thread three-way ball valve" and "T-type pneumatic thread three-way ball valve", L-type is suitable for the flow of the medium switch, can make the two channels connected to each other perpendicular, T-type is suitable for the medium shunt, confluence or flow direction switch.
Product name; Pneumatic three-way ball valve with internal thread
Product model: Q614F/Q615F
Body material: stainless steel 304, 316
Connection mode: internal thread
Applicable pressure: PN1.6Mpa
6.3 Mpa (1000 wog)
Nominal diameter: DN8~DN100
Driving mode: pneumatic
Applicable media: water, oil, gas, etc
Applicable temperature: -20°C ~ +150°C/-20°C ~ +240°C
Flow channel type: L /T
Design standard: ASME B16.34
Wall thickness standard: ASME B16.34 Test standard: MSS SP-110 / EN 12266
Actuator form: AT pneumatic actuator /PT pneumatic actuator mode of action: double action (gas opening and gas closing), single action (spring return)
Control mode: two-position switch control, 4-20mA analog control
Air source pressure: double action 3-8bar; Single action 4-8bar
Operating medium; air
Connection size: ISO5211
Air source interface: in line with NAMUR standard Manufacturing standard: GB/ JB/ HG/ American standard ANSI/API/ JIS/ DIN/ other standard customization
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

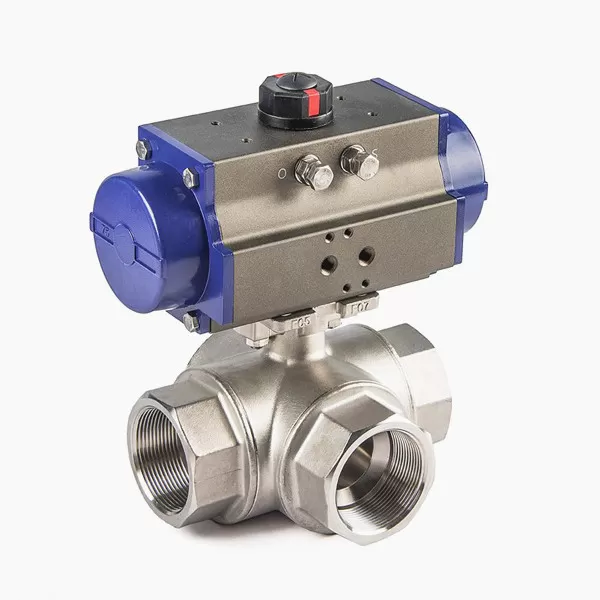

Pneumatic internal thread three-way ball valve working status introduction
Pneumatic actuator imported from Italy, surface anodized treatment, rack and pinion structure, with switch two positions +/-5° stroke adjustment
NAMUR standard air source interface, can be directly connected with the solenoid valve normal service life of up to 1 million times
There is no support connection between the ball valve and the actuator, and the integrated appearance is compact and reduces the equipment space
Any port of the three-way ball valve can be used as an entrance without leakage, and can be made into L-shaped or T-shaped channels according to the working conditions, making the installation more convenient
Three-way ball valve is divided into L type and T type, L type is suitable for the flow of the medium switch, can make the two vertical channels connected, T type is suitable for the medium shunt, confluence or flow direction switch.
Three-way ball valve with internal thread is suitable for food, beverage, medicine, chemical and other pure pipelines and industrial environmental protection, water treatment, high-rise buildings, water supply and drainage pipelines.
