Pneumatic high pressure ball valve

Pneumatic high pressure ball valve overview

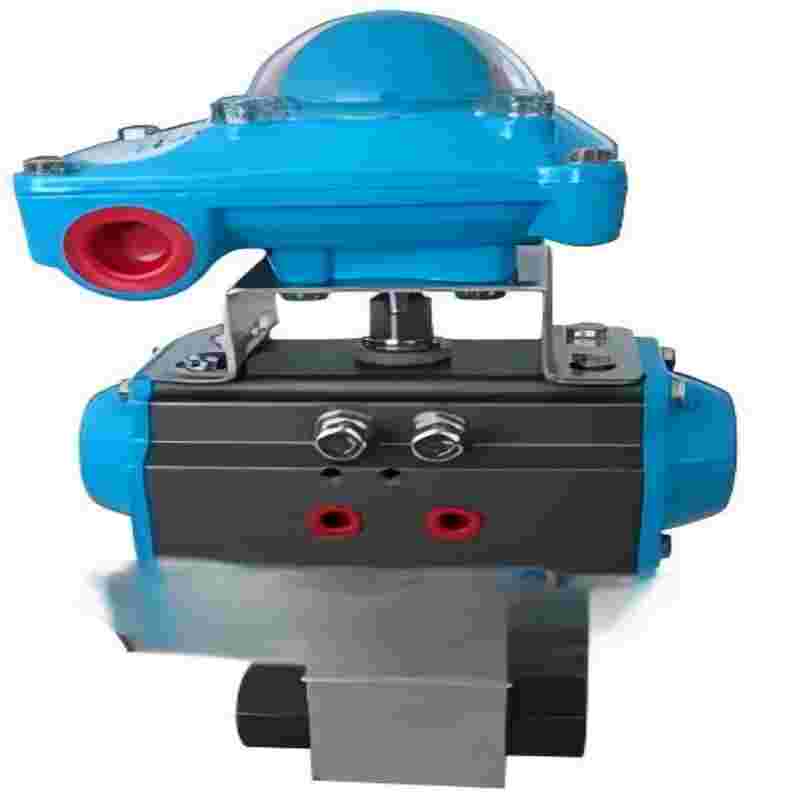

The pneumatic high pressure ball valve is powered by compressed air, and the stem drives the spool to rotate 90° in the valve body, which can achieve full open-full close action. Pneumatic high pressure ball valve is composed of pneumatic piston actuator and high pressure ball valve, which can be equipped with valve positioner input control signal (4-20mADC or 1-5VDC) air source to control operation. It can also be equipped with travel limit switch, solenoid valve, pressure reducing valve and 0.4-0.7MPa air source to realize switching operation, and send two pairs of passive contact signals to indicate the switch of the valve. Pneumatic high pressure ball valve is widely used in petroleum, chemical, light industry, high pressure equipment, pharmaceutical, paper and other industrial automatic control system, for remote centralized control or local control.

Pneumatic high pressure ball valve is widely used in petroleum, chemical, light industry, high pressure equipment, pharmaceutical, paper and other industrial automatic control system, for remote centralized control or local control.

Packing of Standard Packing:

 Typical bulk packaging includes palletized plastic 5 gallon/25 kg. pails, fiber and steel drums to 1 ton super sacks in full container (FCL) or truck load (T/L) quantities. Research and sample quantities and hygroscopic, oxidizing or other air sensitive materials may be packaged under argon or vacuum. Solutions are packaged in polypropylene, plastic or glass jars up to palletized 2022 gallon liquid totes Special package is available on request. E FORUs’  is carefully handled to minimize damage during storage and transportation and to preserve the quality of our products in their original condition.
