Product Code :

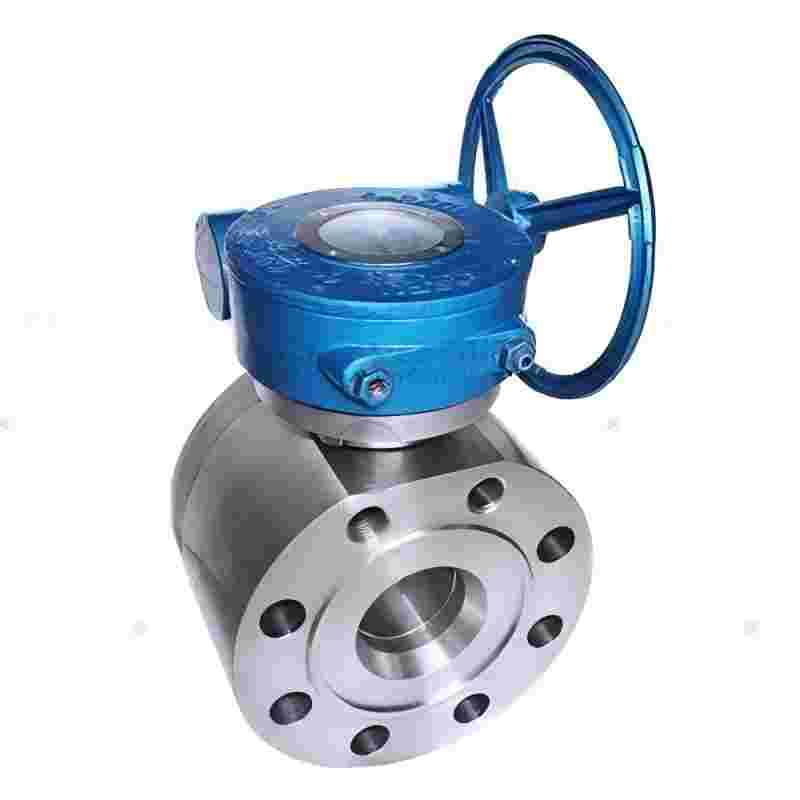

Product name; High pressure floating ball valve
Product model; SQ72F-160P
Nominal diameter; NPS 1/2”~NPS 8” (DN15~DN200)
Working pressure; PN64~160, CL300~900
Body material A105, 304, 316, 316L etc
Interior material; 304, 316, 316L
Valve seat seal; RTFE, PEEK, Metal etc.
Connection mode; Clamp/flange/weld
Design and manufacturing standards; GB/T 12237, ASME B16.34, JIS B2071, DIN 3357
Structure length; GB/T 12221, ASME B16.10, JIS B2002, DIN 3202
Connection standard; GB/T 9113, ASME B16.5, JIS B2212, DIN 2542
Inspection standards; GB/T 26480, API 598, JIS B2003, DIN 3230

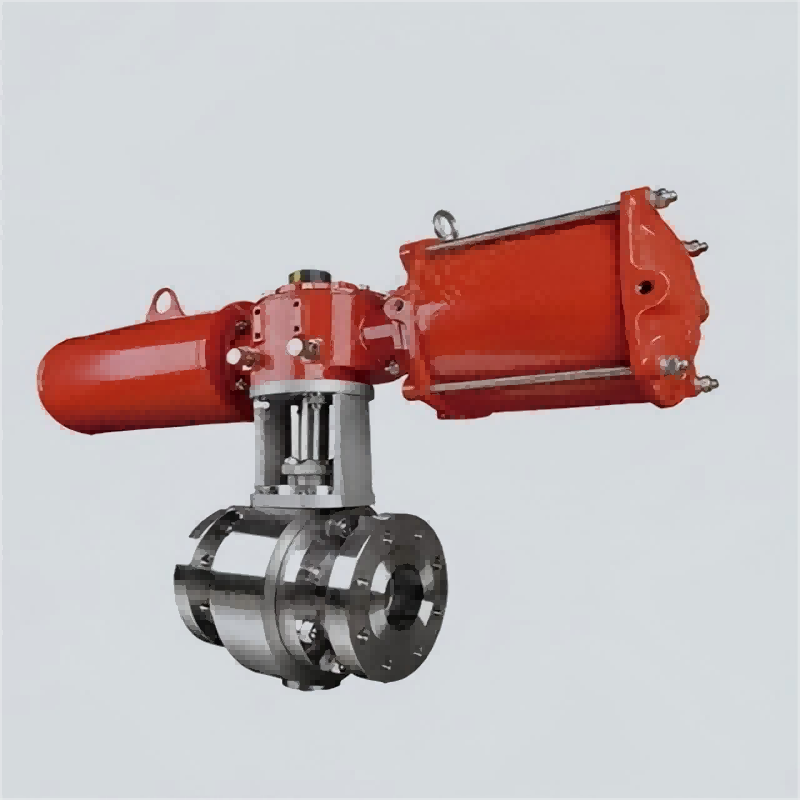

Mode of operation; Handle, worm gear, pneumatic, electric
Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.
The high pressure floating ball valve has the characteristics of simple structure, small size, quick and convenient switching, small fluid resistance, and easy air control and electric control. The valve stem adopts the up-down bi-directional sealing inverted structure, which can effectively prevent leakage, and can be set up anti-static structure. Its connecting end has clamping, flange, welding and other forms, the valve seat can be soft seal or metal hard seal, can be used in high temperature and high pressure conditions, such as daily chemical industry, fine chemical industry, biological chemical technology, medicine, ships and so on.
It can be used in high temperature and high pressure conditions, such as daily chemical industry, fine chemical industry, biological chemical technology, medicine, ship and so on.
